Instruction Manual
ANDROID NAVIGATION
DATE.
2018.09.21

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROiK-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sune Technology ROiK-10

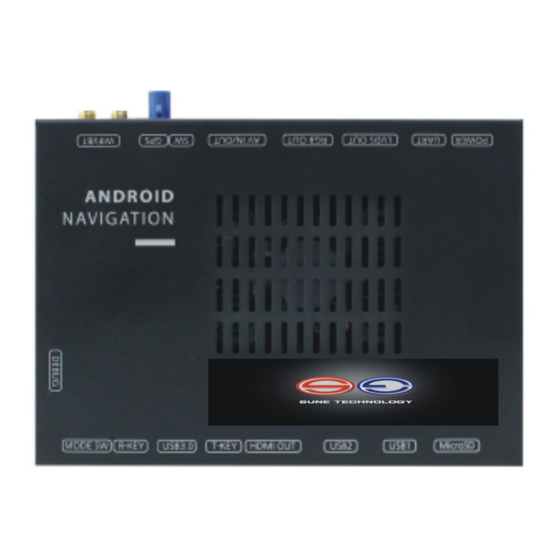

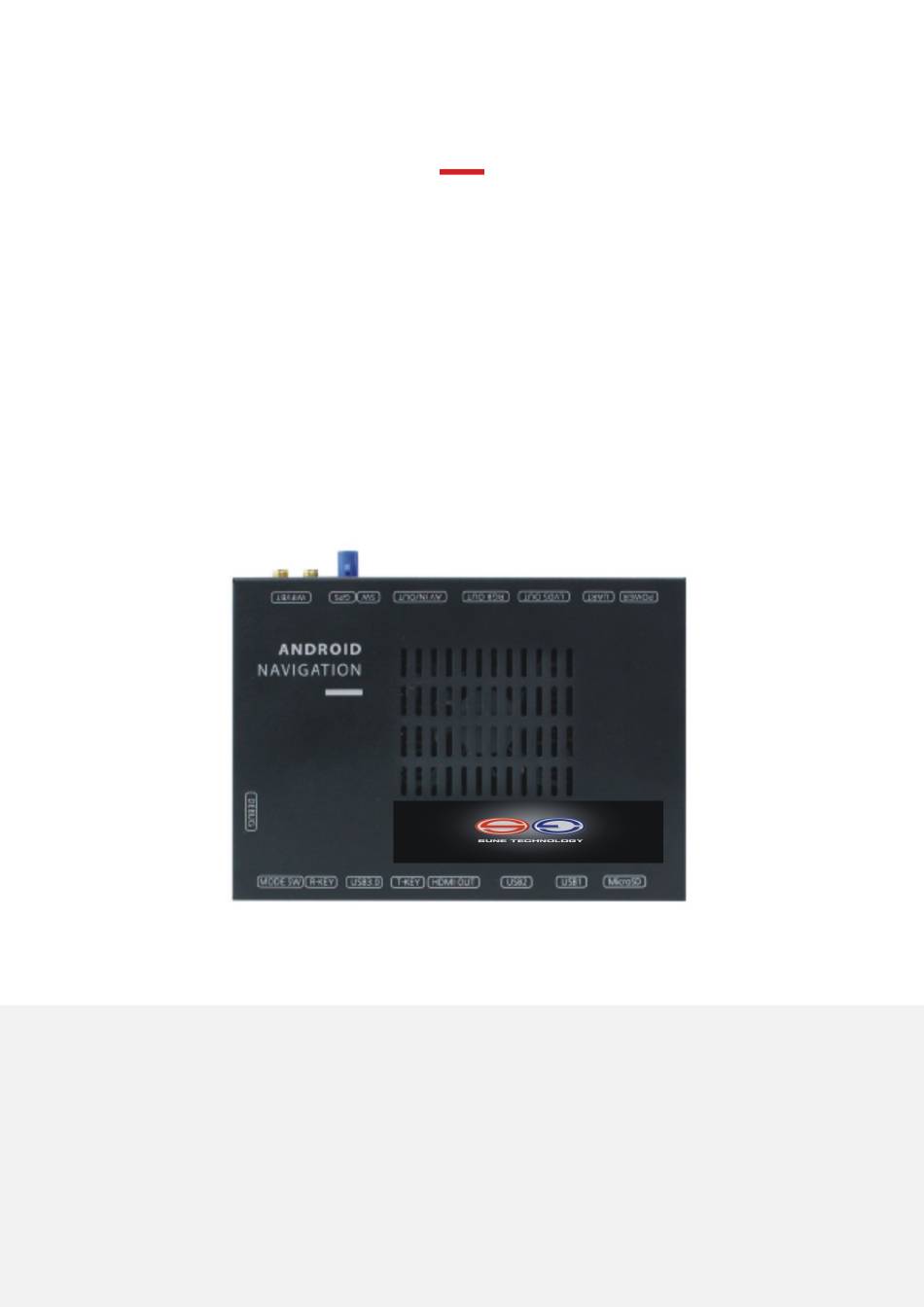

  • Page 1 Instruction Manual ANDROID NAVIGATION DATE. 2018.09.21...
  • Page 2 COMPONENTS ROiK-10 Power Cable AV Cable External GLONASS RGB OUT Cable GPS Antenna Capacitive Touch Cable Resistor Touch Cable Speaker WiFi/BT Antenna x 2 LVDS OUT HDMI Cable CVBS OUT Cable...
  • Page 3 SPEC ※ ANDROID Android 7.1.2(Nougat) Six-Core 64bit Server Class Cortex-A72 Core @2.0Ghz, Mali-T860 Quad-Core GPU (Total Ten-Core) H.264/H.265/VP9 up to 4Kx2K@60fps (4K Video) Memory 2GB DDR3 USB2.0 High Speed Port x 2 USB 3.0 USB3.0 5.0Gbps Port x 1 Wireless 2.4GHz/5GHz Dual-Band WiFi, Support 802.11a/b/g/n/ac, Bluetooth 4.1 Ublox8 GPS...

  • Page 4: Connector Pin Assignment

    CONNECTOR PIN ASSIGNMENT – POWER / AV Yellow Black Power Cable BATTERY Power ACC 12V IN (POWER/CAN) POWER AV/IN OUT AV Cable 13 15 17 19 21 23 (AV IN/OUT) 10 12 20 22 White White Blue White Yellow Black Green Green Capacitive...
  • Page 5 DIP S/W INFORMATION Pin No. ANALOG RGB OUT DIGITAL LVDS OUT / CVBS OUT SW - 1 GPS Power from ROiK-10 GPS Power Self SW - 2 Mode SW Pin No. Capacitive Touch Resistive Touch, UART Touch Mode SW - 1 Mode SW –...

  • Page 6: Screen View

    SCREEN VIEW ※ Screen Size : 1280px X 720px ※ Screen Size : 1578px X 584px ※ This icon will show when Dip s/w set to use “Resistive Touch” , or it will show car have a resistive touch. automatically...
  • Page 7 SCREEN VIEW NAVIGATION Quick icon for Navigation Application Multimedia Quick icon for Multimedia Application Music Player Music player Widget File Manager Quick icon for File Manager Application APPS Application List Back Button Return Home Button Home 1. Multitasking Multitasking 2. PIP Mode by Long Press APP Shortcut Quick icon Sound...
  • Page 8 SCREEN VIEW – Split Screen Mode(PIP) ※ PIP Screen Long Press Normal PIP(Picture In Picture) Mode Mode 1. Multitasking button Long press 2. Press Home button in PIP Mode 3. Apps 4. Select application ※ Some apps are not work on PIP mode...

  • Page 9: Cable Connection

    CABLE CONNECTION POWER UART LVDS OUT RGB OUT AV IN/OUT WIFI/BT WiFi/BT Antenna x 2 Cable Car battery Antenna CAP - Touch RES - Touch Digital UART - Touch LVDS Interface Interface SPEAKER HEADREST MONITOR AUX OUT R [CVBS] AUX OUT L VIDEO INTERFACE INTERFACE...
  • Page 10 CABLE CONNECTION ANDROID NAVIGATION MODE SW R-KEY USB3.0 T-KEY HDMI OUT USB2 USB1 MicroSD ※ Play movies or music using USB or Micro-SD Card ※ Firmware update is available only by “USB1” HEADREST MONITOR [HDMI]...
  • Page 11 CABLE CONNECTION – CAPACITIVE TOUCH VIDEO HEADREST DIGITAL LVDS INTERFACE MONITOR INTERFACE RGB OUT CVBS OUT LVDS OUT ※ Digital LVDS OUT/CVBS OUT always on, DIP S/W 1 = OFF ※ RGB OUT = DIP S/W 1 = ON Capacitive Touch Panel CAP TOUCH EXT TOUCH...
  • Page 12 Capacitive Touch Setting (GOODIX GT9xx) 1. Device Setting 2. Capacitive Touch Setting 3. Select Touch Panel name If don’t have on the list, select “OTHER STORAGE” On the list Not on the list 4. OK 4. Select setting file (saved on USB/SD) ※...
  • Page 13 CABLE CONNECTION - RESISTIVE TOUCH RGB VIDEO HEADREST DIGITAL LVDS INTERFACE MONITOR INTERFACE RGB OUT CVBS OUT LVDS OUT ※ Digital LVDS OUT/CVBS OUT always on, DIP S/W 1 = OFF ※ RGB OUT = DIP S/W 1 = ON Resitive Touch panel ANDROID...
  • Page 14 CABLE CONNECTION - UART TOUCH RGB VIDEO HEADREST DIGITAL LVDS INTERFACE MONITOR INTERFACE RGB OUT CVBS OUT LVDS OUT ※ Digital LVDS OUT/CVBS OUT always on, DIP S/W 1 = OFF ※ RGB OUT = DIP S/W 1 = ON ROiK UART RX connect with UART TX ROiK UART TX connect with UART RX UART TX...
  • Page 15 HEADREST MONITOR ※ Headrest Monitor (CVBS or HDMI) CVBS HDMI INTERFACE ANDROID NAVIGATION MODE SW R-KEY USB3.0 T-KEY HDMI OUT USB2 USB1 MicroSD...

  • Page 16: Device Settings

    DEVICE SETTINGS INIT SETTING Reset settings to default RESET DEVICE System Reboot Digital Out Setting LVDS screen change horizontal and change h/v position (Digital Out Mode) Analog RGB Setting RGB 800x480 or 480x234 screen change size and position (RGB Out Mode) External Speaker Turn on/off external speaker Softkey Position...
  • Page 17 CALIBRATION-RESISTIVE TOUCH Push button 2~3 sec after booting Calibration mode After calibration, push screen few second ※ Capacitive touch panel no need set calibration USER LOGO UPDATE Set User Boot Logo Activate 1. Run Device Setting App 2. Click ‘Set Use Boot Logo’ and select boot logo image. ※...

  • Page 18: Factory Reset

    FACTORY RESET Recommend Setting ▶ Backup & Reset ▶ Factory data Reset Select “RESET DEVICE” = Factory Reset Wait until restart unit ※ After reboot system, it takes 3~4 min T-Key USB1 (USB 2.0) Re-connect power cable While Press button ※...
