TubeOhm De-Generator Building Instruction

Diy sample synthesizer, panelboard
Hide thumbs Also See for De-Generator:

Advertisement

Quick Links

Download this manual
De-Generator
DIY sample synthesizer
Building instruction 1, the panelboard
V1.02 english
stand 08.04.2019
www.tubeohm.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the De-Generator and is the answer not in the manual?

Questions and answers

Related Manuals for TubeOhm De-Generator

Summary of Contents for TubeOhm De-Generator

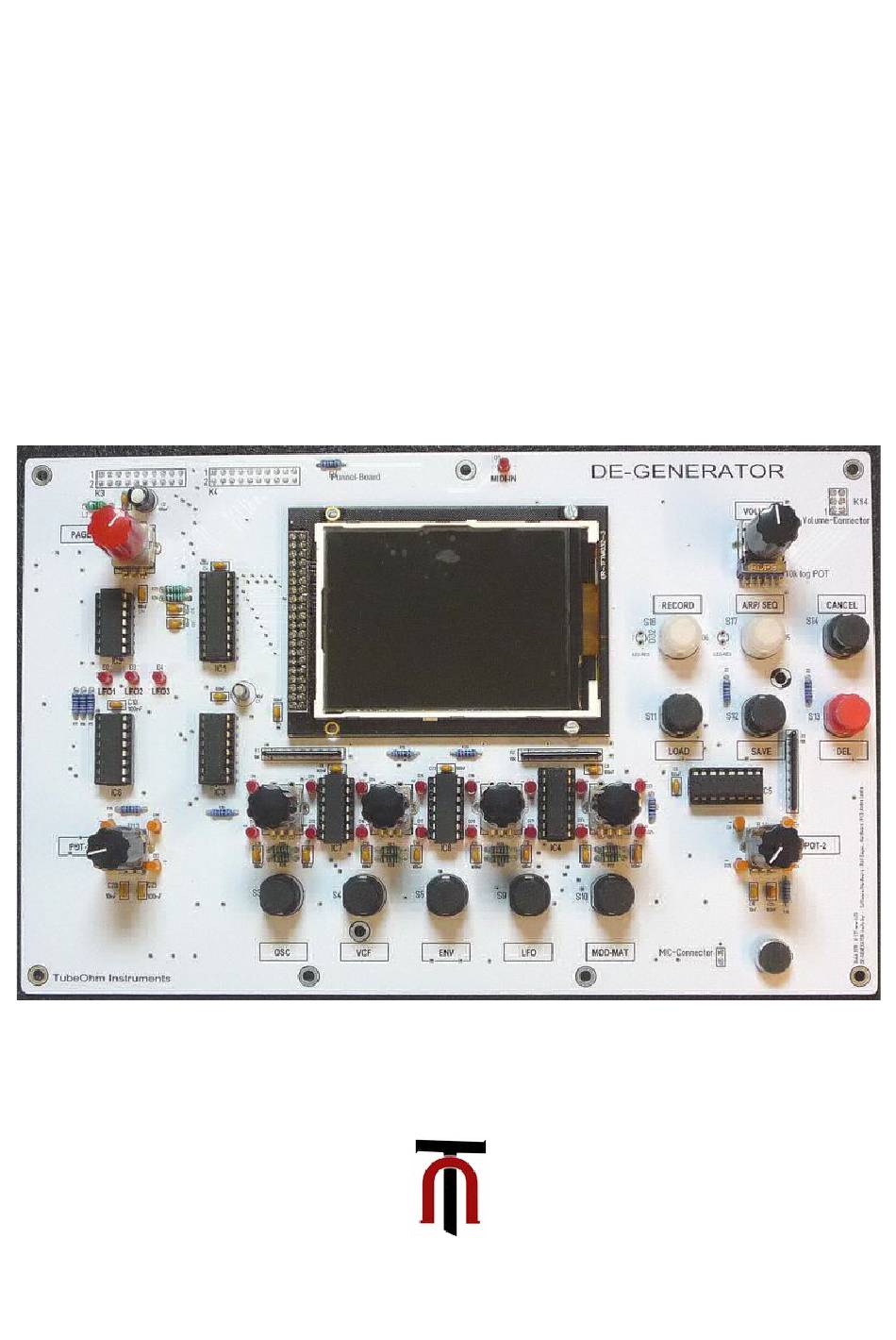

  • Page 1 De-Generator DIY sample synthesizer Building instruction 1, the panelboard V1.02 english stand 08.04.2019 www.tubeohm.com...
  • Page 2 We try to write the DIY manual as detailed as possible. If you have any questions, please contact us at Kontakt@TubeOhm.com If you can't get on with a component, let it go first, clarify the situation with us, and then you can move on.
  • Page 3 It's better to ask once than to search for errors for hours afterwards. I can understand that you want the de-generator to be finished quickly, but if you work too fast you make mistakes very quickly.
  • Page 4 LED red V1,6 V...2,1 Volt LED vellow/green 1,9V..2,2 Volt LED blue/white 2,9V..4V The Formular. UB = operating voltage 3,3 Volt U_led= voltage of the LED I_led= current of the LED R_vor= value of the resistor in Ohm R_vor=(UB-U_led)/I_led. Sample calculation for 4 LED's red . U_LED=1,6 Volt I_LED =5 mA R_vor =?
  • Page 5 All right, let's get started. Is your soldering iron hot? The following procedure. First come the resistors / coil, then the capacitors, then the IC sockets, then the LEDs, then the potentiometers and encoders, switches, connectors and the mic and finally the LCD display.
  • Page 6 The Resistors Resistor/Widerstand Farbcode/colorcode Value/Position Red,red,black,black brown R4,5,6,7,8,9 =220 Ohm 6 x 220 Ohm...
  • Page 7 Resistor/Widerstand Farbcode/colorcode Value/Position Brown,black,black,red,brown R23,24,25,26,27,28,29,30,31,32 10x10K Resistorarray/Widerstands- Farbcode/colorcode/code Value/Position array A103 R1,2,3=10K 3x10K resistor array Attention, the resistor-array is polarized, the white point is pin 1 and marked on the part . On the PCB it is marked with a rectangle.
  • Page 8 The Capacitors Capacitor Farbcode/colorcode Value/Position marked/markiert ( 104 ) C3,4,5,6,7,8,9,10,11,12,13, 14,15,16,17,18,21,22,23,24, 25,26 22x100nF Capacitor Farbcode/colorcode Value/Position marked/markiert ( 103 ) C19,20 2x10nF...
  • Page 9 Capacitor /Elko Farbcode/colorcode/code Value/Position 100 uF C2 = 100uF Attention , this part is polarized, short pin is minus 1x100uF Elko Capacitor/Elko Farbcode/colorcode/code Value/Position 10 uF C1 = 10uF Attention , this part is polarized, short pin is minus 1x10uF...
  • Page 10 Now we come to the IC sockets We need : 3x14 pin = for IC 7,8,9 =74HC14 4x16 pin = for IC 3=74HC165, IC4=74HC165, IC5=74HC165, IC6=74HC595 1x20 pin = for IC 1=73HC573 Attention, the IC sockets are marked. Please solder the sockets right around into the board.
  • Page 11 The buttons in the De-Generator The buttons have a flattened side. This is also marked on the board. They must be installed in such a way that the markings point to the left ! 1:) 2x white with red LED...
  • Page 12 Now the five buttons of the pages are soldered in The encoders The De-Generator uses longlive encoders with 100,000 switching cycles. 1x PEC11L4120F-S0020 This is the Page Encoder and has an additional button. This encoder has five connections 4x PEC11L-4120F-N0020 these encoders are without pushbutton and are installed in the positions ENC 2,3,4,5.
  • Page 13 The S6 encoder with switch is the PAGE encoder and is soldered into position 'Pages'. The encoders without pushbuttons are soldered in positions 2...4 The freely programmable potentiometers Pot 1,2 Farbcode/colorcode/code Value/Position Pot1,Pot 2 DC103B 2x10Kohm lin...
  • Page 14 The volume pot volume pot Farbcode/colorcode/code Value/Position Volume 103A 1x10Kohm log /stereo The LEDs LED red LFO D1,2,3,4 Farbcode/colorcode/code Value/Position and for the encoder D9,11,12,13,14,15,16,17,18, D19,20,21,22,23,24,25...
  • Page 15 Attention - pay attention to the polarity (minus ) is at the top ! Attention, we use red LEDs for the De-Generator with a Plexiglas case, because these are not so bright. R18,19,20,21 are then changed from 330 Ohm to 220 Ohm.
  • Page 16 LED-Resistor/Widerstand Farbcode/colorcode Value/Position Pre-resistors LED red. depends of the LED type . 4x 220...390 Ohm R18,19,20,21 330 Ohm works in most cases. R18,19,20,21 for red LEDs we use 220 Ohm (plex case) for blue LEDs we use 390 LED orange for the free pots Farbcode/colorcode/code Value/Position D7,29,30,31,8,26,27,28 Attention , this part is...
  • Page 17 LED-Resistor/Widerstand Farbcode/colorcode Value/Position Pre-resistors LED orange. Depends of the LED type . 2 x 220...390 Ohm R 15,16 330 Ohm works in the most cases. R 15,16 for orange LEDs we use 220 Ohm The connectors connector male Farbcode/colorcode/code Value/Position Connector male K3,K4= 2x10 pin...
  • Page 18 K14, the volume connector connects the volume control to the audio signal It is also pushed through the holes from the back and soldered from above. K3,K4 is the connection to the CPU board and should look like this The Micro Farbcode/colorcode/code Value/Position 1xMicro...
  • Page 19 So, all soldered together? Soon it will be done. Before we solder in the display we do a quality control. The board should now look like this from below Tip: So, for example, I don't feel like troubleshooting for hours, so I clean up I'll take a look at all the solder joints with a magnifying glass.
  • Page 20 The LCD Display Screws and nuts Farbcode/colorcode/code Value/Position 2x M2,5 screw 4x M2,5 nuts 2x plastik washer Both screws are inserted into the rear holes and secured with the nuts. A plastic washer is placed on each nut. The plastic washer prevents the metal nut from being damaged. short-circuits on the board.
  • Page 21 Now insert the display into the board and fix it with the remaining two nuts. Now the board should look like this: When everything is straight and screwed on, the display can now be soldered to the board. It is best to solder first one row of the connector and then the second row.
  • Page 22 The projecting pins of the plug are cut with a side cutter. Power supply and test points green = GND red= 3,3 Volt = UB blue=2,5 Volt = U_ref for Pot 1 and Pot 2...
  • Page 23 Now the IC's are plugged into the sockets. Make sure the polarity is correct. We use: 3 x 74HC14 1 x 74HC573 3 x 74HC165 1 x 74HX595 The finished panel board should now look like this. Congratulations, the pannel board is now ready. © by TubeOhm 2018...
