Summary of Contents for Spectris Servomex Servopro PureGas

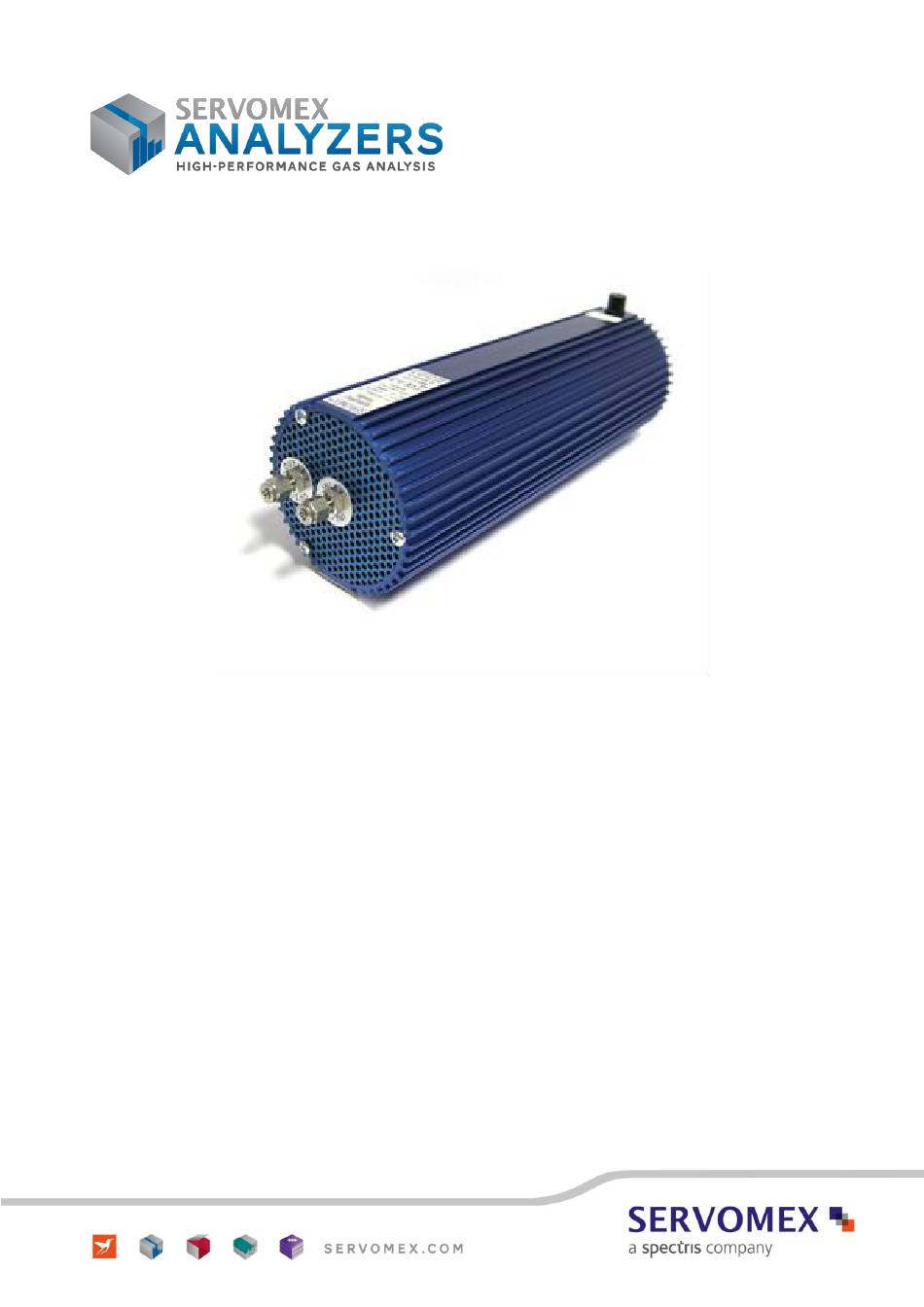

- Page 1 SERVOPRO PureGas OPERATOR MANUAL OPERATOR MANUAL Part Number: 02005001A Revision: Language: UK English...
- Page 2 This page is intentionally blank...
-
Page 3: Table Of Contents
SERVOPRO PureGas Gas Purifier LIST OF CONTENTS DESCRIPTION AND DEFINITIONS ..............3 Scope of this Manual ................... 3 Safety Information ..................3 Warning Symbols ..................3 General Warnings and Cautions ..............4 Description ....................5 Lifetime of the Purifier ................. 5 Construction .................... -
Page 4: Description And Definitions
SERVOPRO PureGas Gas Purifier 1 DESCRIPTION AND DEFINITIONS Scope of this Manual This operation manual provides the information required to operate the purifier. This manual is not intended to provide servicing instructions to the user. The purifier should be operated only by personnel who are familiar with the procedures required for safe operation. -
Page 5: General Warnings And Cautions
SERVOPRO PureGas Gas Purifier General Warnings and Cautions WARNING The purifier must only be used with inert gases. The intended gas type will be stated on the front of the purifier. Do not use any other gas type. This purifier should never be used to purify oxygen, air or other gas containing oxygen above trace levels. -
Page 6: Description
SERVOPRO PureGas Gas Purifier Description The purifier is designed for the purification of carrier gases used in Gas Chromatography (GC).Outlet impurity levels for H O, CO, CO , CH (and N in noble gases) are reduced to low parts per billion (ppb) levels. The purifier comes completely assembled with a 1/8”... -
Page 7: Specification
SERVOPRO PureGas Gas Purifier 2 SPECIFICATION General Purifier height (envelope) 312 mm (~12.3 in) 347 mm (~13.67 in) [optional VCR connections] Purifier width (envelope) 112 mm (~4.4 in) Purifier weight 1.8 Kg (~4 lbs) 1/8” compression fittings (optional 1/8” VCR) Feed gas inlet 1/8”... -
Page 8: Sample Gas
SERVOPRO PureGas Gas Purifier Sample Gas The sample gas must have a minimum purity of 5N (<10 ppm). Recommended gases to be purified Ar, He, Ne, Xe, Kr, Recommended input purity 5N minimum (<10 ppm) Expected output purity 8N minimum (<10 ppb) CAUTION The caps fitted to the gas inlet and outlet must be kept on until just prior to installation. -
Page 9: Unpacking The Purifier
SERVOPRO PureGas Gas Purifier 3 UNPACKING THE PURIFIER Handling The level of performance depends upon the care and attention to the proper handling of the purifier. Exposure to non UHP environments, and physical contact of sealing surfaces will reduce the quality and life of the purifier. The purifier should be packaged and stored in a clean, dry environment until used. -
Page 10: Installation And Setup
SERVOPRO PureGas Gas Purifier 4 INSTALLATION AND SETUP Mounting A mounting bracket is supplied to simplify mounting. Any convenient location allowing the purifier to be mounted vertically is sufficient. Only mount the purifier in a vertical position. Overall dimensions for mounting of the standard and VCR versions are shown in figures 1 and 2 respectively. - Page 11 SERVOPRO PureGas Gas Purifier Figure 1 – Overall and fixing 4.1.1 dimensions (Standard) 02005001A / Revision 0...
- Page 12 SERVOPRO PureGas Gas Purifier Figure 2 – Overall and fixing 4.1.2 dimensions (VCR)) 02005001A / Revision 0...
-
Page 13: Mechanical Installation And Purging
SERVOPRO PureGas Gas Purifier Mechanical Installation and purging WARNING Do not remove any fittings or open any valves until the inlet and outlet lines are connected and purged. WARNING The purging process must be carried out at room temperature. Do not switch the purifier on at this stage. -
Page 14: Operation
SERVOPRO PureGas Gas Purifier Leak testing the purifier is recommended before activating. The purifier has been certified helium leak tight to less than 10 scc/sec of He (inboard). Once installed, the purifier connections should be tested for leak integrity. The ventilation slots at the top and bottom of the purifier must not be obstructed. -
Page 15: Disconnecting The Purifier
SERVOPRO PureGas Gas Purifier 6 Disconnecting the Purifier WARNING Do not attempt to disconnect any of the components while the purifier is in a heated (greater than 50 C) condition. Exposure of the getter alloy to atmosphere under these circumstances could be hazardous. If it is necessary to disconnect the purifier to carry out plant/factory maintenance, for example, and the purifier will not be used for several days, the following procedure must be followed: ... -
Page 16: Service
SERVOPRO PureGas Gas Purifier 7 Service The purifier is maintenance free. It is designed to operate continuously without service throughout its rated capacity as long as the gas flowing is the carrier gas. The only service encountered is at the end of the life, when the purifier has to be replaced. WARNING The user must not attempt to open the purifier as there are no serviceable parts inside. -
Page 17: Storage And Disposal
SERVOPRO PureGas Gas Purifier 8 STORAGE AND DISPOSAL Storage Refit the protective caps securely on the purifier inlet and outlet (see Section 4.2) and place the purifier and any associated equipment in its original packaging before storage. Alternatively, seal it inside a waterproof bag or storage box. Store the purifier and any associated equipment in a clean, dry area. -
Page 18: Appendix
SERVOPRO PureGas Gas Purifier 9 APPENDIX Appendix A1 MATERIALS IN CONTACT WITH SAMPLE GAS The materials of the parts of the purifier in contact with the sample gas are listed below. These materials have a wide range of chemical compatibility and corrosion resistance. -
Page 19: Appendix A2 Disposal In Accordance With The Waste Electrical And Electronic Equipment (Weee) Directive
SERVOPRO PureGas Gas Purifier APPENDIX A2 DISPOSAL IN ACCORDANCE WITH THE WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE) DIRECTIVE The logo shown in Figure A1 is displayed on the identification label on the purifier. Figure A1 – The WEEE logo This logo identifies that: ... -
Page 20: Appendix A3 Reach Regulation
SERVOPRO PureGas Gas Purifier APPENDIX A3 REACH REGULATION In pursuance of the requirements included in Article 33 of the European REACH Regulation on the Registration, Evaluation, Authorisation and restriction of CHemicals, information on Substances of Very High Concern (SVHC) contained in Servomex products is provided on www.servomex.com 02005001A / Revision 0... -
Page 21: Appendix A4 Compliance And Standards Information
SERVOPRO PureGas Gas Purifier APPENDIX A4 COMPLIANCE AND STANDARDS INFORMATION The ServoPro PureGas purifier is made in the USA for Servomex by SEAS Pure Gas Inc The purifier complies with the European Community “Electromagnetic Compatibility Directive”: 2004/108/EC Emissions: Class B – Equipment suitable for use in domestic establishments and in establishments directly connected to a low voltage supply which supplies buildings for domestic purposes. -
Page 22: Appendix A5 Contact Information
SERVOPRO PureGas Gas Purifier APPENDIX A5 CONTACT INFORMATION and click on “contact us” For Global contact details go to our web site www.Servomex.com 02005001A / Revision 0...
