Summary of Contents for Totech Superdry XSDC 601-01

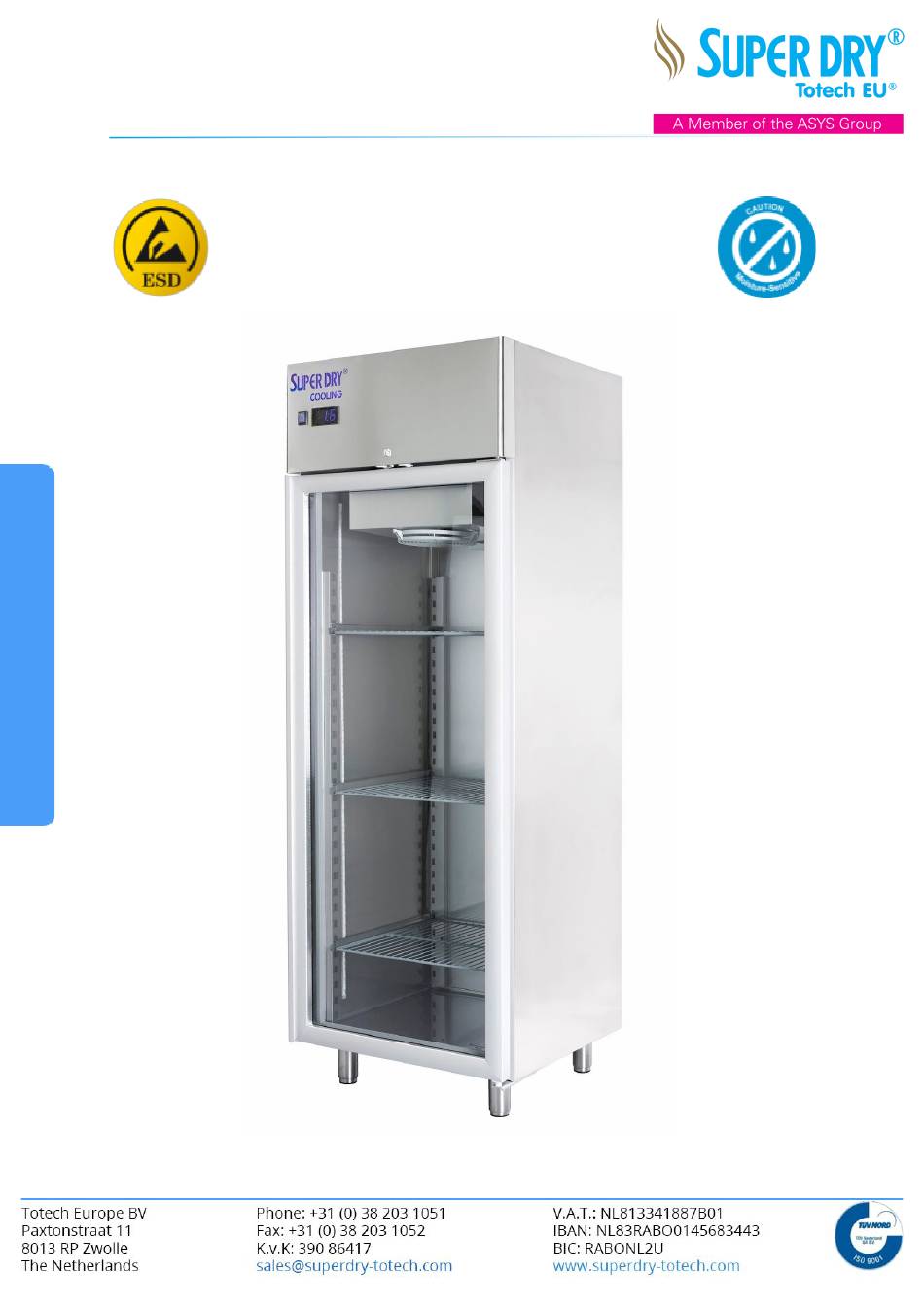

- Page 1 XSDC 601-01 Operation manual XSDC 601-01...
-
Page 2: Table Of Contents
XSDC 601-01 1. Safety Information 1.1 Adherence to information provided in the Operation Manual 1.2 Operator Obligations 1.3 Personnel Obligations 1.4 Organizational Measures 1.5 Information related safety precautions 1.6 Intended use 1.7 Hazards related to cabinet handling 1.8 Protective devices 1.9 Electrical hazards 1.10 Hazards arising from hot surfaces 1.11 Maintenance, Service and troubleshooting... - Page 3 9. Waste disposal and dismantling 10. Warranty and RMA Procedure 10.1 Warranty and liability 10.2 Full Warranty 10.3 Exchange warranty 10.4 Third year warranty 10.5 Guidelines for the RMA procedure of Totech Europe B.V. 11. Serial numbers 11.1 Cabinet serial numbers 12. CE Declaration...
-
Page 4: Safety Information
XSDC 601-01 1. Safety Information 1.1 Adherence to information provided in the Operation Manual Being familiar with the basic safety information and regulations is essential for safe handling and failure-free operation of this device. ✓ This Operation Manual contains the most important information required in order to safely operate the device. -
Page 5: Intended Use
The device is exclusively intended to cool atmospheric air. Any deviating or exceeding deployment is considered unintended use. Totech EU will not assume any liabilities for damage resulting therefrom. The device must not be mounted in and/or exposed to the intake of liquids (e.g. filled tanks or sumps, flooded areas etc.). -
Page 6: Maintenance, Service And Troubleshooting
✓ After completion of the repair works, check safety devices for functionality. 1.12 Dehumidifier modification ✓ Any modification, extension, and/or conversions to the device are subject to Totech EU's written consent. ✓ Exclusively use original spare parts to ensure the device’s proper and safe function and operation. -
Page 7: Technical Specifications
2.2 Operating conditions In general, cooling cabinets made by Totech are designed for initial conditions of 20-40°C at 0-60%RH. Higher ambient temperature conditions will adversely affect cooling performance. ✓ Ensure to exclusively operate the device in ambient temperatures (control-side) ranging between 10°C and 40°C! -
Page 8: Main Components
XSDC 601-01 2.4 Main Components The equipment is made up of the following (see table and figure) Pos. Part Pos. Part 1 DOOR 8 THERMOSTAT 2 FRONT RACK 9 INSTRUMENT PANEL 3 DOOR TRAY GUIDE 10 REFRIGERATOR UNIT 4 REAR RACK 11 UPPER HINGE 5 DIAGNOSTIC LED ... -
Page 9: Ordinary Maintenance
XSDC 601-01 3. Ordinary Maintenance 3.1 Preliminary inspection operations Before any maintenance, replacement, repair, cleaning, lubricating or other operation, the equipment must be isolated from electrical power! ✓ Wear the appropriate safety gloves when performing maintenance operations. 3.2 Internal and external cleaning of the refrigerator cabinet ✓... -
Page 10: Installation
XSDC 601-01 5. Installation Personal safety devices must used during this operation. 5.1 Transport The refrigerator cabinet is shipped on a pallet and protected by its packaging. The refrigerator cabinet should always and only be transported in a v ertical position (indicated Up-Down on the packaging) (see figure). -
Page 11: Space Needed For Maintenance
XSDC 601-01 5.4 Space needed for maintenance When installing the refrigerator cabinet, enough space must be left around it for maintenance operations (FIG. 4). 6. Operation Preliminary inspection operations Wait necessary time equipment to reach the set temperature before storing food inside of it. Do not put hot foods or beverages inside the refrigerator. -
Page 12: Defrosting
XSDC 601-01 6.4 Defrosting In order to ensure ideal cooling, the cooling unit requires adequate defrosting. Therefore the device has an automatic defrosting cycle. This means that the device will automatically start defrosting every 6 hours. Each individual defrosting cycle will take about 30 minutes. 6.5 Front panel description 1 - Key P: Used for setting the setpoint and for programming the function parameters. -
Page 13: Programming
XSDC 601-01 7. Programming 7.1 Programming of the setpoint Pressing the key P will show S P alternating with the set value on the display. To change the setpoint, press the UP key to increase the value or DOWN to decrease it. These keys increase or decrease the value one digit at the time, but if the button is pressed for more than one second the value increase or decreases rapidly, and after two seconds pressed, the speed increases even more to all the desired values to be reached rapidly. -
Page 14: Troubleshooting
The blue indicator light Malfunction of the display or Contact us at our service portal: on the switch is on but transformer. http://service.superdry-totech.com/ the display is still off. Both the blue indicator Malfunction of the room or Contact us at our service portal: light on the switch and evaporator sensor. -
Page 15: Waste Disposal And Dismantling
XSDC 601-01 9. Waste disposal and dismantling ATTENTION! Demolition and disposal should be performed by personnel qualified in performing these operations since they have the proper information and tools for this purpose. At the end of the product's life cycle, do not dispose of in the environment. The doors must be removed before disposing of the equipment. -
Page 16: Warranty And Rma Procedure
The end user will receive the defective part replaced at no costs. The transport costs are to be paid by the receiving party. The defective part has to be returned after it is replaced with the new one. Actual replacement is done by the end user with support from Totech technical support if needed. 10.3 Exchange warranty Valid during the ... -
Page 17: Third Year Warranty
The end user will receive the defective part at an especially quoted price by Totech EU sales department. The old part will be returned by the end user to Totech EU as soon as the defective part is replaced with the new one. -
Page 18: Serial Numbers
11.1 Cabinet serial numbers Explanation how the serial number of the cabinet is identified: 12. CE Declaration With this writing, we: Totech Europe BV De Linge 28 8253 PJ Dronten confirm that the cooling cabinet described corresponds with the fundamental...
