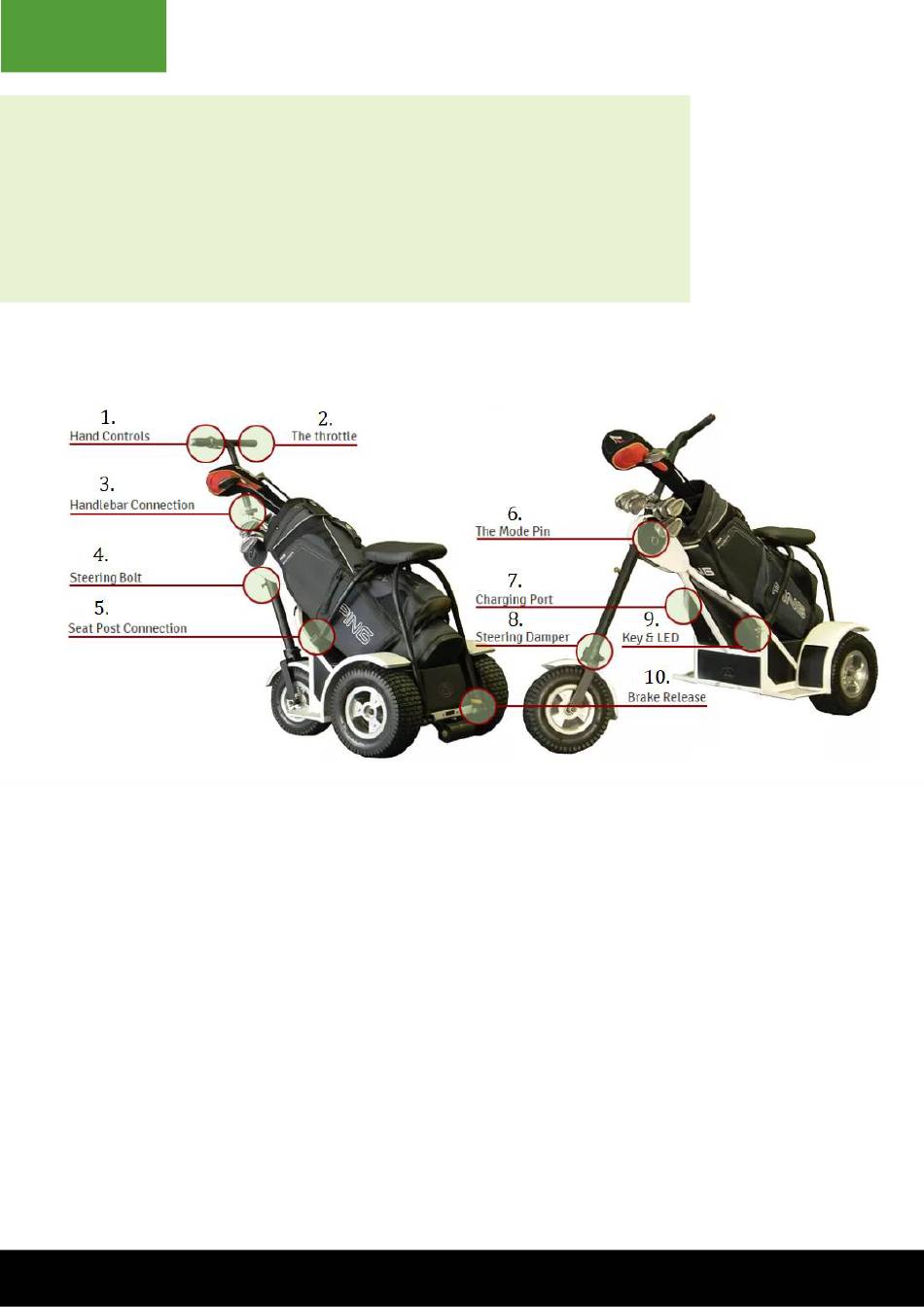

Functions and controls outlined in this guide

Hand controls

1
Located on the left side of the handlebars
The Kill Switch is an Emergency power kill.
( Red ) The top red switch in the down position will kill all power to the Turf Chopper. The unit will come to a
quick stop. Until the switch is placed back to the Up position you will not be able to operate the unit.
Forward and Reverse
( Yellow ) This is a 3 setting horizontal switch.
In the left position the Turf Chopper will be in "Reverse"
Middle position is the "Low" speed setting.
Right position is "Hi" speed setting
Electric Brake Release
( Green ) By pushing and holding the lower green button will electronically release the brake. This will allow
you to free wheel your Turf Chopper if necessary
