Summary of Contents for Table-Tennis-Tables PP80
- Page 2 Trouble shooting Failure Solution Cause The number in ball counter has reached 0 and the robot is in Press the start key standby mode Check the electric socket Machine Press the switch until the The plug has poor contact with the socket doesn t work number displays The key on the control box doesn t work due to excessive...
-
Page 3: Table Of Contents
Contents Robot components and ball collecting net......page 1 How to assemble the ball collecting net.........page 1 CARE BEFORE USE How to position the table tennis robot........page 2 What power supply to use............page 2 Loop modulation................page 3 Speed modulation..............page 3 Frequency modulation..............page 3 Selecting regular spin...............page 4 INTRODUCTION TO FUNCTIONS OF THE... -
Page 4: Robot Components And Ball Collecting Net

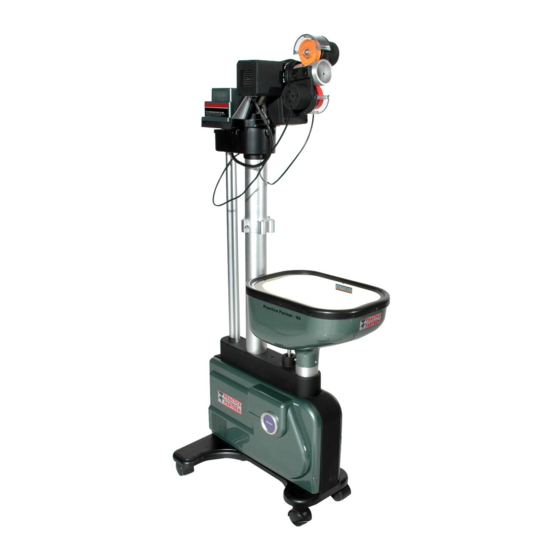

Robot components and ball collecting net Top wheel Bottom wheel Net support Support frame Ball container Control box s support Ball collecting net Power switch Control box How to assemble the ball collecting net 2. Partially 1. First, open the unfold the ball lock buckles of the collecting net... -
Page 5: Care Before Use How To Position The Table Tennis Robot
How to position the table tennis robot 5. Put both end sleeves of 6. Clamp the net support 7. Pull the rubber band over the ball collecting net on the onto both sides of the table the bottom of net support. net supports. -
Page 6: Loop Modulation
Loop modulation Serving Curve/Loop The level of the shooting head is related to the landing spot in left/right and front/back directions. (Under various serving sequence mode, the adjustment can be done after pausing the machine). Press down arrow to lower the shooting head. The landing spot becomes shorter (close to the net). -
Page 7: Introduction To Selecting Regular Spin
Selecting regular spin Press spin button , then using the up and down arrow buttons to choose one from 9 different spins; top spin, under spin, no spin, left side spin, right side spin, left-side top spin, left-side under spin, right- side top spin and right-side under spin. -
Page 8: Selecting Number Of Balls
Selecting number of balls In standby mode, press the ball counter key, then change the number by pressing up or down Digital display arrow key. The range of frequency is 1 - 999. Hold the key for fast forward adjustment. Once the robot has started, the number begins counting down. -
Page 9: Maintenance How To Maintain The Table Tennis Robot
How to maintain the table tennis robot Electric component: The electric fasten component in this product consists loosen mainly of the base machine s circuit boards and the control box, which is the command centre of the robot. Therefore, any jolts or shakes should be avoided.
