Summary of Contents for Smartpods Tech Pulse

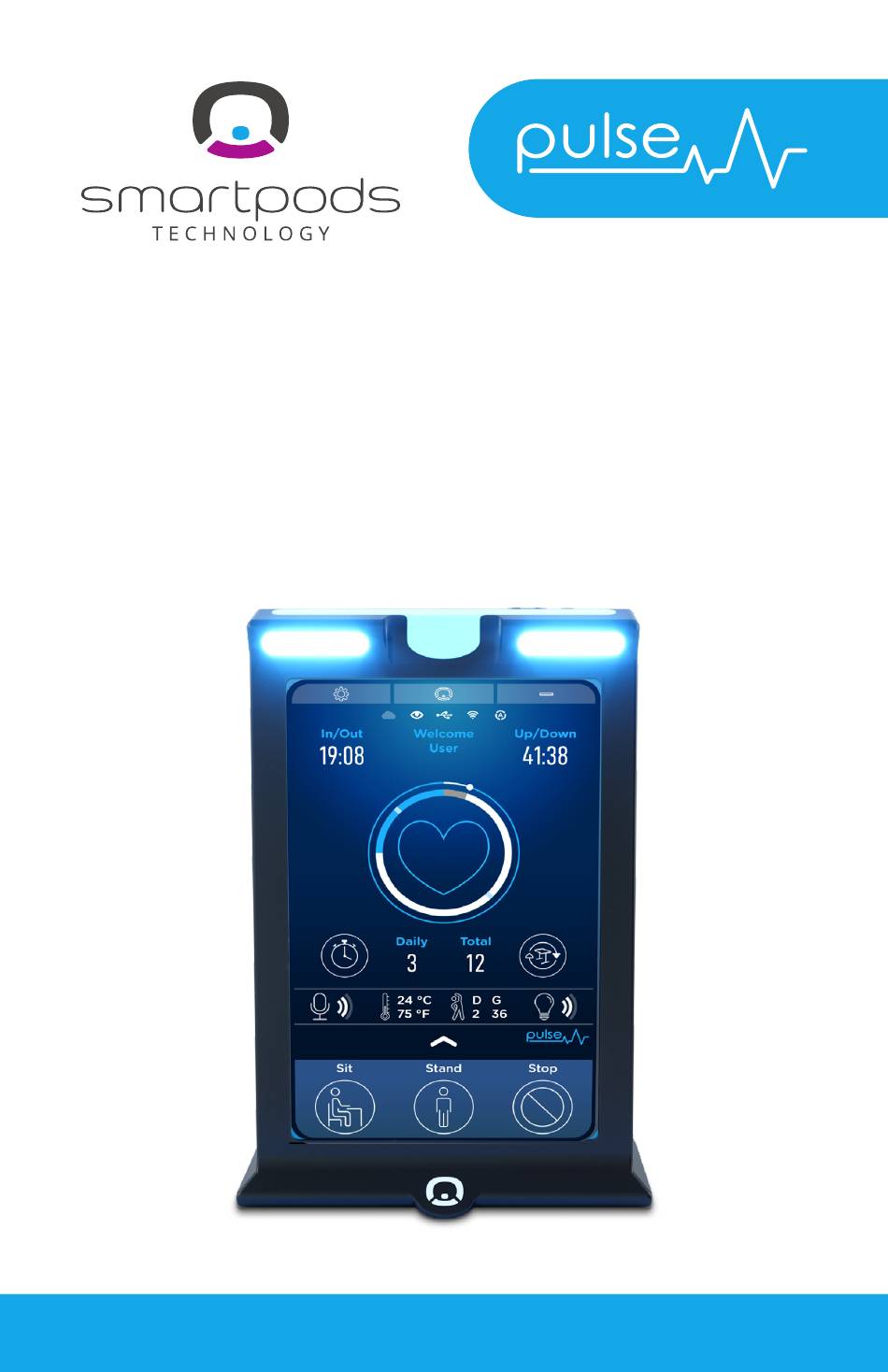

- Page 1 Innovation that Improves Health, Wellness and Facility Management. Smartpods Pulse Setup Merging corporations and employees with technology.
- Page 2 The time for a smarter, healthier office is now.
-
Page 3: Table Of Contents
Table of Contents Unboxing Setting up the Pulse Control Box Setting up Height Sensor Setting up Pulse Tower Finalizing setup PC or laptop Control Box functions Administrative setup Other sit-stand connectors Power consumption... - Page 4 Smartpods Pulse. This manual will guide you through the process of installing and configuring your Smartpods Pulse unit for use with your desk. Before Installing: It is strongly suggested to move the desk to its minimum and maximum heights using the original desk handset before beginning the installation.
-
Page 5: Unboxing
1 – 12V Wall Adapter Pulse Control Box 1 – Pulse Height Sensor Pulse Installation Kit 1 – Pulse Communication Cable 1 – Pulse Tower Headphone Hook 6 - #10 Wood screws (Philips) 2 – ½” Cable Clamp 2 - #4 Wood screws (Philips) -
Page 6: Setting Up The Pulse Control Box
Step Two: Setting up the Pulse Control Box Fig 2-1 Remove or reposition the original Control Box Parts hand controller on the desk. Remove the Pulse Control Box and four (4) of the #10 wood screws (large) from the Installation Kit. -
Page 7: Setting Up Pulse Tower
Step Four: Setting up the Pulse Tower Place the Pulse Tower on the desk surface, roughly above the Control Box. Unwrap the cabling of the Tower and hang over the rear edge of the desk (or through nearby grommet). Fig 4-1... -
Page 8: Finalizing Setup
Step Five: Finalizing setup Locate the Pulse Communication Cable. Plug one end of the cable into the rear of the Control Box; Fig 5-1 plug the other end into the original Height Sensor / COM Cable desk controller, using the same... -
Page 9: Pc Or Laptop
Plug the USB-B end of the USB cable into port 1 of the Control Box. Fig 6-2 Fig 6-1 Pulse Control Box to Computer Plug USB into an empty port. The Control Box: Button functions Fig 7-1 Pulse Control Box to Computer Cog button - (On the Tower = Task Light;... -
Page 10: Administrative Setup
Administrative Setup: Commissioning *Administration rights required. For update & commissioning please refer to document : Update & Commissioning If any issues arise during the commissioning process, please contact us at one of the following: support@smartpodstech.com Fig 8-1 Customer Service: 1-855-888-6858 Commissioning Location Other Sit/Stand Desk: Different connectors The connectors may vary per desk. -
Page 11: Other Sit-Stand Connectors
The Pulse of a Smarter, Healthier Office... - Page 12 The only desk system approved by physiotherapists Contact Us 1 855 888-6858 info@smartpodstech.com smartpodstech.com...
