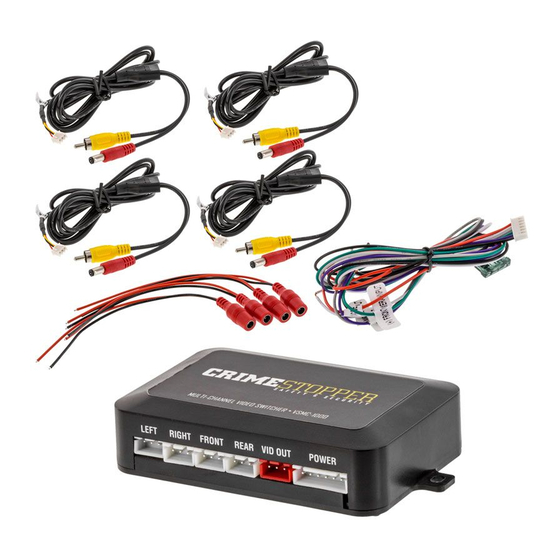

VSMC-1000
VIDEO SWITCHER

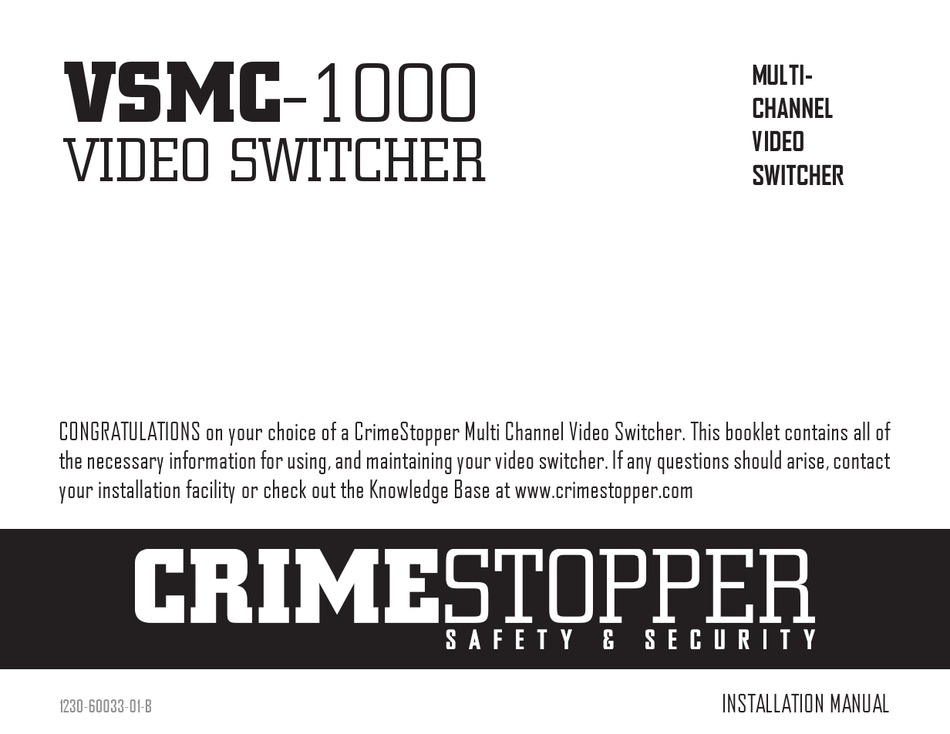

CONGRATULATIONS on your choice of a CrimeStopper Multi Channel Video Switcher. This booklet contains all of
the necessary information for using, and maintaining your video switcher. If any questions should arise, contact
your installation facility or check out the Knowledge Base at www.crimestopper.com
1230-60033-01-B
MULTI-
CHANNEL
VIDEO
SWITCHER
INSTALLATION MANUAL
Advertisement
Summary of Contents for CrimeStopper VSMC-1000
- Page 1 VIDEO SWITCHER SWITCHER CONGRATULATIONS on your choice of a CrimeStopper Multi Channel Video Switcher. This booklet contains all of the necessary information for using, and maintaining your video switcher. If any questions should arise, contact your installation facility or check out the Knowledge Base at www.crimestopper.com...
- Page 2 INTRODUCTION This multi-channel video switcher will allow you to install multiple cameras (not included) into a vehicle and have them triggered simply by turning your turn signals on or by placing your vehicle in reverse. This product is intended to be used in addition to using the vehicles mirrors and is no way meant to replace them.
- Page 3 SYSTEM OVERVIEW (+) Accessory Input - RED (+) Left Camera Trigger - WHITE (+) Right Camera Trigger - GREY (+) Front Camera Trigger - GREEN 2 A/32 V (+) Rear Camera Trigger - PURPLE (-) Ground - BLACK 18” 84” 84”...
- Page 4 WIRING 2 A/32 V (+) Accessory Input - RED (+) Left Camera Trigger - WHITE (+) Right Camera Trigger - GREY (+) Front Camera Trigger - GREEN (+) Rear Camera Trigger - PURPLE (-) Ground - BLACK Red - 12V Out Black - Video (-) 12V Ground Yellow - Video (+)
- Page 5 WIRING Red – Accessory (+) In – This will be connected to the vehicle’s Accessory wire. This wire powers the video switcher and will give power to the all connected video cameras. White – Left Camera Input Trigger – This wire should be connected to the vehicle’s positive left turn signal wire. This will trigger the camera on the LEFT side of the vehicle to turn ON and output video to the display.
- Page 6 SPECIFICATIONS Input Voltage Min 9V / Max 16V (Min/Max) Camera Output Voltage 1Vp-p @ 75ohms Output Resolution Pass-through Fused Rating 2 Amp -20°C (-4°F)/ 85°C (185°F) Temperature (Min/Max) 89.2mA Min/ 355.3mA Max Amperage Output (Min/Max) 4-1/8” X 2-5/16” X 13/16” Dimensions (LxWxH) (103mm X 58mm x 20mm)
- Page 7 INTRODUCTION Ce mélangeur vidéo multicanaux vous permettra d'installer plusieurs caméras (non fournies) dans un véhicule et de les déclencher simplement en activant vos clignotants ou en mettant votre véhicule en marche arrière. Ce produit est conçu pour être utilisé en plus de l'utilisation des rétroviseurs et n'est en aucun cas prévu pour les remplacer.
- Page 8 SPÉCIFICATIONS Tension d'entrée Mini 9 V / Maxi 16 V (Mini/Maxi) Tension de sortie de caméra 1 Vp-p @ 75 ohms Résolution de sortie Transmission Calibre du fusible Température -20 °C (-4 °F)/ 85 °C (185 °F) (Mini/Maxi) 89,2 mA Mini/ 355,3 mA Maxi Sortie d'ampérage (Mini/Maxi) Dimensions...
- Page 9 INTRODUCCIÓN Este conmutador de vídeo de múltiples canales le permitirá instalar múltiples cámaras (cámara no incluido) en un vehículo y hacer que se activen simplemente accionando las señales de giro o colocando el vehículo en marcha atrás. Este producto es para ser usado además de usar los espejos del automóvil y no es de manera alguna un reemplazo de los mismos.
- Page 10 ESPECIFICACIONES Voltaje de entrada Mín. 9V / Máx. 16V (Mín./Máx.) Voltaje de salida de la cámara 1Vp-p @ 75 ohmios Resolución de la salida Transferencia Calificación con fusible 2 Amperios Temperatura -20°C (-4°F)/ 85°C (185°F) (Mín,/Máx.) 89.2mA Mín./ 355.3mA Máx. Amperaje de salida (Mín./Máx.) Dimensiones...
- Page 12 Length Of Warranty Limited Lifetime, CrimeStopper will repair or replace defective modules with a comparable new or refurbished module during reasonable usage and the lifetime of the vehicle in which it is originally installed provided that the module is returned to Rockford, shipping pre-paid and accompanied by a legible copy of the original sales receipt from the authorized dealer containing;...
