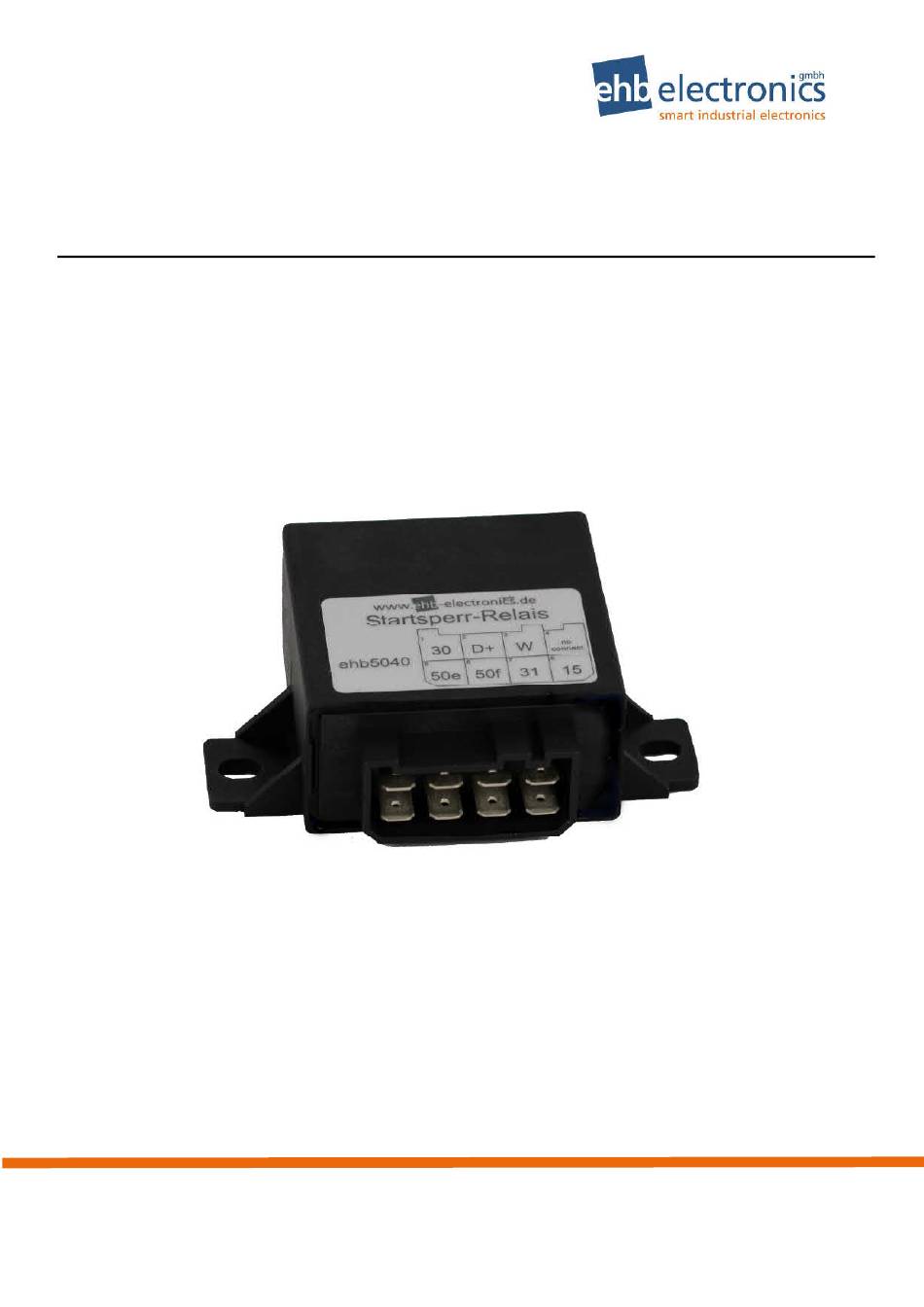

Operating Instructions
Start Stop Relay
It is not permitted to pass on or copy this documentation or to use or disclose its content unless expressly approved. We reserve the right to recover
damages for any contraventions. All rights are reserved in the case of patent issue or utility model registration.
1/10
ehb5040x
Version 2.4
Vers. 2.4
© ehb errors excepted
Advertisement
Table of Contents
Related Manuals for ehb electronics ehb5040 Series
Summary of Contents for ehb electronics ehb5040 Series
- Page 1 Operating Instructions Start Stop Relay ehb5040x Version 2.4 It is not permitted to pass on or copy this documentation or to use or disclose its content unless expressly approved. We reserve the right to recover damages for any contraventions. All rights are reserved in the case of patent issue or utility model registration. 1/10 Vers.
-
Page 2: Table Of Contents
Operating Instructions Table of Contents General Information....................3 Target Group ......................3 Important Information for Use ................3 Device Repair ....................... 3 1.4 Product Disposal ....................... 4 Component Description / Function ................5 2.1 The following conditions prevent the start-up process: ..........5 2.2 The following conditions interrupt the start-up process: .......... -
Page 3: General Information
Please ensure that you enclose a written description of the fault(s). This will make it much easier for the ehb electronics gmbh service department to find the error and return the SSR to you quickly. Alternatively, use our online service for returning the device: www.ehbservice.de 3/10 Vers. -
Page 4: Product Disposal
Operating Instructions NOTE! ehb electronics gmbh shall only be liable for the professional execution of the work it performs and for the correct quality of the materials used. Any further claims, such as compensation for loss of profits and compensation for direct or indirect conse- quential damages, e.g. -
Page 5: Component Description / Function

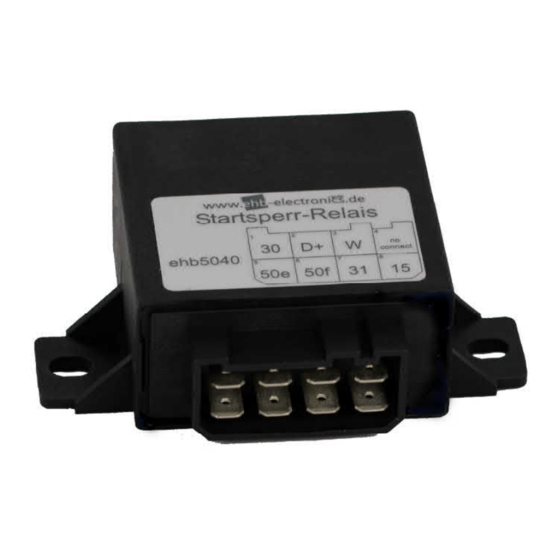

Operating Instructions Component Description / Function The SSR protects the starter, the pinion and the engine sprocket. It prevents accidental starting when the engine is already running or when it is still shutting down. The SSR is an electronic relay that is switched between terminal 30 and the starter (terminal 50f). The engine speed is measured at terminal W of the alternator. -
Page 6: Assembly
Operating Instructions For switching, the output transistors require a release from the processor and voltage at input 50e (redundancy). Assembly Assembly is visible in the engine compartment Use short cables from the ignition start switch and to the starter Protect the SSR from exposure to water and dirt Assemble in a low-vibration location Assemble with the connector side facing downwards Provide sufficient spacing for the connector and cables... -
Page 7: Technical Documentation
Operating Instructions CE marking According to Directive 2014/30/EU Technical Documentation EMC tests EMC test report from an independent testing laboratory Measurement of disturbance radiation according to EN 61000-6-3 (VDE 0893, part 6-3): 2002-08 Interference immunity to high-frequency electromagnetic fields according to IEC 1000-4-3, EN 61000-4-3 (VDE 0847, part 4-3): 2003-11 Interference immunity to transient disturbance variables (bursts) -
Page 8: Housing Dimensions
Operating Instructions Housing Dimensions Relay housing with moulded lugs; dimensions: 60 x 30 x 60 mm; material: PA6.6 61,0 mm 40,7 mm 95,5 mm 59,9 mm 8,3 mm 61,0 mm 82,3 mm 8/10 Vers. 2.4 © ehb errors excepted... -
Page 9: Connection Diagram
Operating Instructions Connection Diagram WiringDiagram 9/10 Vers. 2.4 © ehb errors excepted... -
Page 10: Document Information, History
Operating Instructions Document Information, History Project: Document type: Technical Documentation Version: Created on: 25.08.2011 Author: ehb electronics gmbh, Langenhagen Changes: Version: Edited: Layout adjustment 25.08.2011 O. Howind Technical documentation amended 04.10.2011 O. Howind Formatting 18.10.2011 Error correction 05.01.2012 How/Sch Layout adjustment 13.08.2014...
