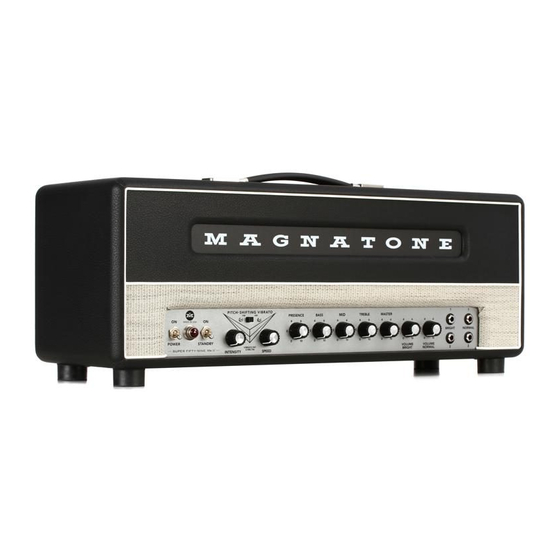

Summary of Contents for Magnatone SUPERFIFTYNINE MKII

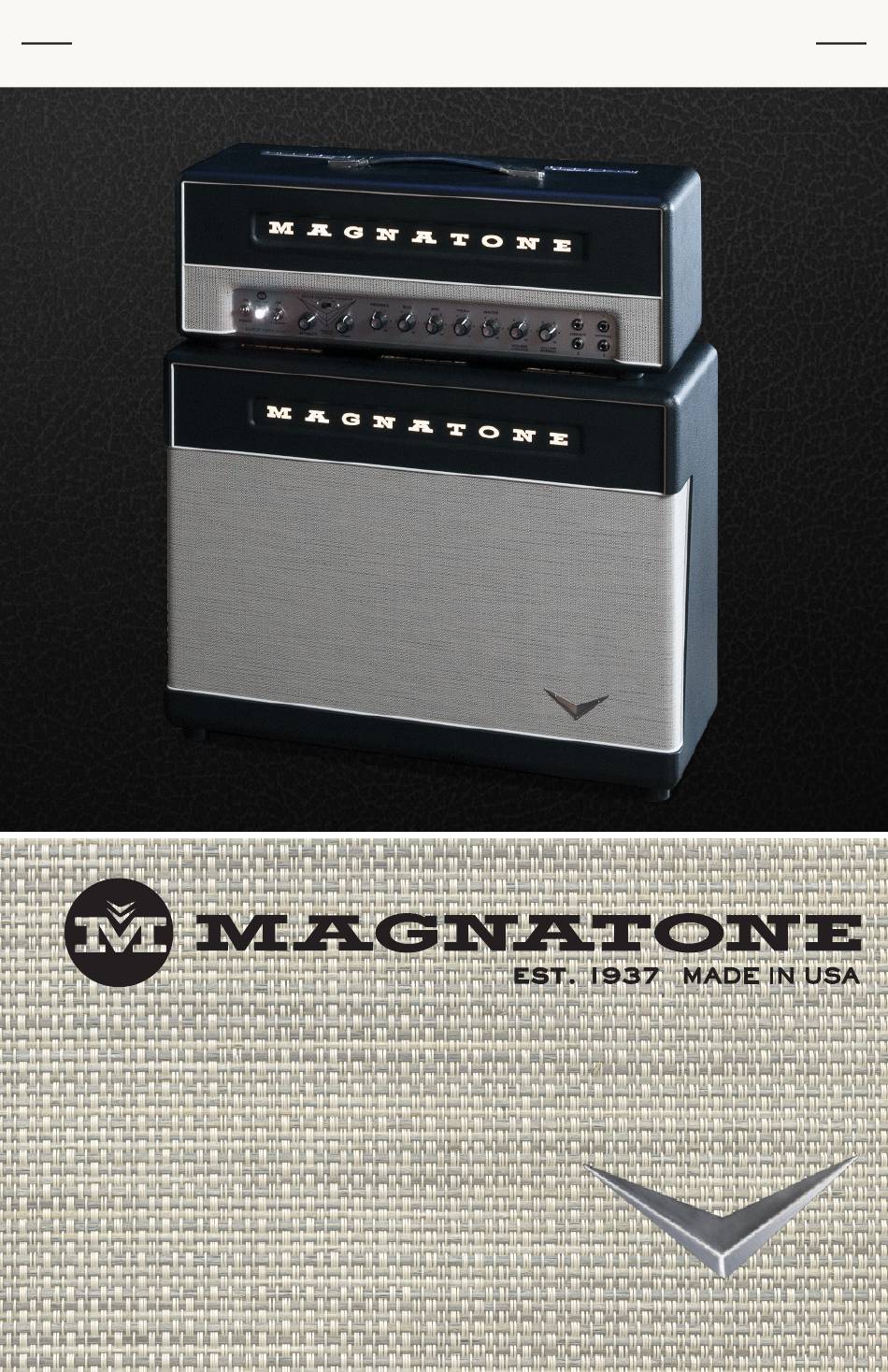

- Page 1 S U P E R F I F T Y N I N E M K I I ® TRUE DIMENSIONAL SOUND MAGNATONEUSA.COM...
- Page 2 WELCOME TO MAGNATONE FEATURES • T he Super Fifty-Nine MKII brings classic Magnatone Welcome to the proud family of Magnatone owners. into the modern day. We are excited to have you join this group that consists of the world’s great guitarists — including iconic players • D eveloped in conjunction with Billy F. Gibbons.
-
Page 3: Panel Controls
Controls the rate or speed of the selected effect. The exclusive Input 1 (Bright): High Sensitivity Magnatone design allows for extremely slow “choral” settings not Use this input for max pickup output and frequency response attainable from the original design. When the remote pedal is Input 2 (Bright): Low Sensitivity -6dB connected, the front panel control is inactive. - Page 4 Do not operate without load or speaker connected. REMOTE PEDAL COMPENSATED LINE OUT Connect the optional Magnatone remote pedal here. Use any 1/4” mono or stereo guitar cable. When connected, Line level outputs. Speaker response compensated for DI use. the front panel speed control is disabled. The remote pedal Always maintain a speaker load while using line output.
-
Page 5: Tube Layout
TUBE LAYOUT (VIEW FROM REAR OF AMPLIFIER) First Gain Stage V3 Third Gain Stage V6 Power Tube Normal and Bright V4 Effects Loop V7 Power Tube V2 Second Gain Stage Send and Return Vibrato Modulator V5 Phase Splitter TECH SPECS TUBE COMPLEMENT (4) 12AX7, 12DW7, (2) EL34 BASS... -
Page 6: Warranty
• CLEAN ONLY WITH LINT-FREE DAMP CLOTH AND DO NOT warranty. USE CLEANING AGENTS. • The amplifier is shipped to Magnatone Amplifiers or an • ONLY CONNECT POWER CORD TO A POLARIZED, SAFETY GROUNDED authorized Magnatone Service Center in the original... - Page 7 TRUE DIMENSIONAL SOUND MADE IN THE USA MAGNATONEUSA.COM...
