MANTHER GROWL QUICKSTART GUIDE

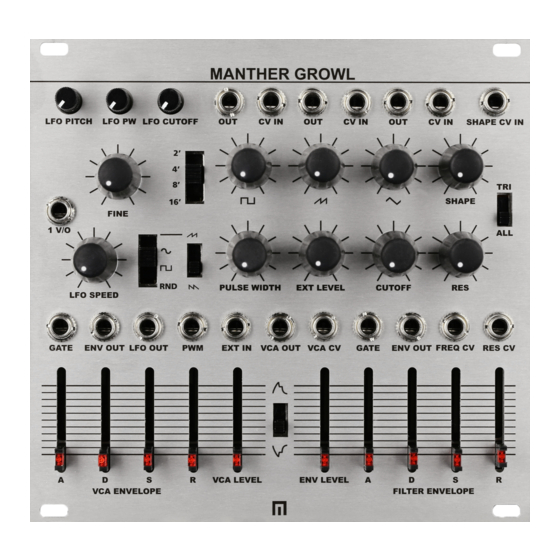

MANTHER GROWL is a full featured, Eurorack monophonic synth voice with an analog signal path, and like the Manther Tabletop, it includes a
coveted CEM3340 VCO IC chip. The analog filter is based on an SSM2044 chip. Square, Saw and Triangle waveforms have their own individual level
controls (manual control as well as CV jack inputs), as well as their own individual outputs. Wavefold control can be set to Tri or ALL (folds all
waveforms and external input post-filter). Dial the independent LFO level controls to modulate pitch, pulsewidth and filter cutoff. Also includes
manual controls over both VCA and filter ADSR and both the VCA and filter have individual gate inputs.
CONNECT POWER CABLE WITH
RED STRIPE TO WHITE LINE
LFO ASSIGNMENT
CONTROLS:
Assign LFO amount to VCO
Pitch, VCO Pulsewidth and VCF
Cutoff.

VCO OCTAVE RANGE SWITCH

VCO FINE TUNE CONTROL

VCO 1V/OCT INPUT:

Insert 1V/oct from an external
source.
LFO SPEED:
Control the LFO speed.
LFO WAVEFORM SWITCHES:
Switch from Saw/Ramp, Sine,
Square and Random LFO.

LFO OUTPUT

VCO PULSE WIDTH
MODULATION CV INPUT
VCO PULSE WIDTH
MODULATION CONTROL
Visit malekkoheavyindustry.com to read the full manual and register your product for warranty!
LFO & OSCILLATOR
Your serial number:
INDIVIDUAL OSCILLATOR
INPUTS AND OUTPUTS AND
LEVEL CONTROLS:
Square, Saw, Tri-Shape level
controls, each with their own
outputs and CV inputs
(controlling levels).
WAVEFOLD SHAPE CV
INPUT:
CV input controls wavefolding
amount.
WAVEFOLD SHAPE
CONTROL.
Manual shape control.
ASSIGN WAVEFOLDING
SHAPE TO TRI OR ALL:
Switch wavefolding from
Triangle only to ALL (fold
signal post-filter).
