Eurotron PGS 700 Manual

Hydraulic Hand Pump
Hydraulic Hand Pump

1. Safety instructions

Read these operating instructions carefully prior to operating the hydraulic
calibration test pump PGS 700 / PGS 1000. The pressure inside the pump can be
extremly high. Ensure that all pressure connections have been established
correctly.

2. Product description

The PGS 700 and PGS 1000 calibration test pumps are used to generate pressure for
checking, adjusting and calibrating mechanical and electronic pressure measuring
instruments by comparative measurements. These pressure tests may be carried out in
laboratories, workshops or on site at the measuring point..
If the instrument to be tested and a sufficiently accurate reference measuring instrument
are connected up to the test pump, the same pressure is applied to the two measuring
instruments when the pump is operated. By comparing the two measure valves at random
pressure values, the accuracy can be verified or the instrument under test can be
adjusted.
Despite their compact dimensions, the calibration test pumps PGS 700 and PGS 1000 are
easy to operate and allow for exact generation of the required test pressures. The pumps
are fitted with a fine adjustment valve for the precise adjustment of pressures. The
reference instrument is screwed directly on the top of the pump and the unit under test is
connected by means of the optional HTH 1000 flexible hose.

3. Mounting instructions

• The reference instrument is fitted to the upper side of the calibration test pump PGS
700 or PGS 1000. The reference instrument is sealed by the integral O-ring sealing
gasket. The maximum torque is 15 Nm.
• The unit under test is mounted to the end of the flexible test hose. Tighten to the
connector to prevent any leaks to a maximum torque of 15 Nm.
Never apply external pressure to the PGS 700 and PGS 1000. Do not connect to
external pressure sources.
PGS 700
- max. pressure 700 bar
PGS 1000
- max. pressure 1000 bar
(Rel. 080806) • All technical modifications reserved. Without engagement
(Rel. 080806) • All technical modifications reserved. Without engagement

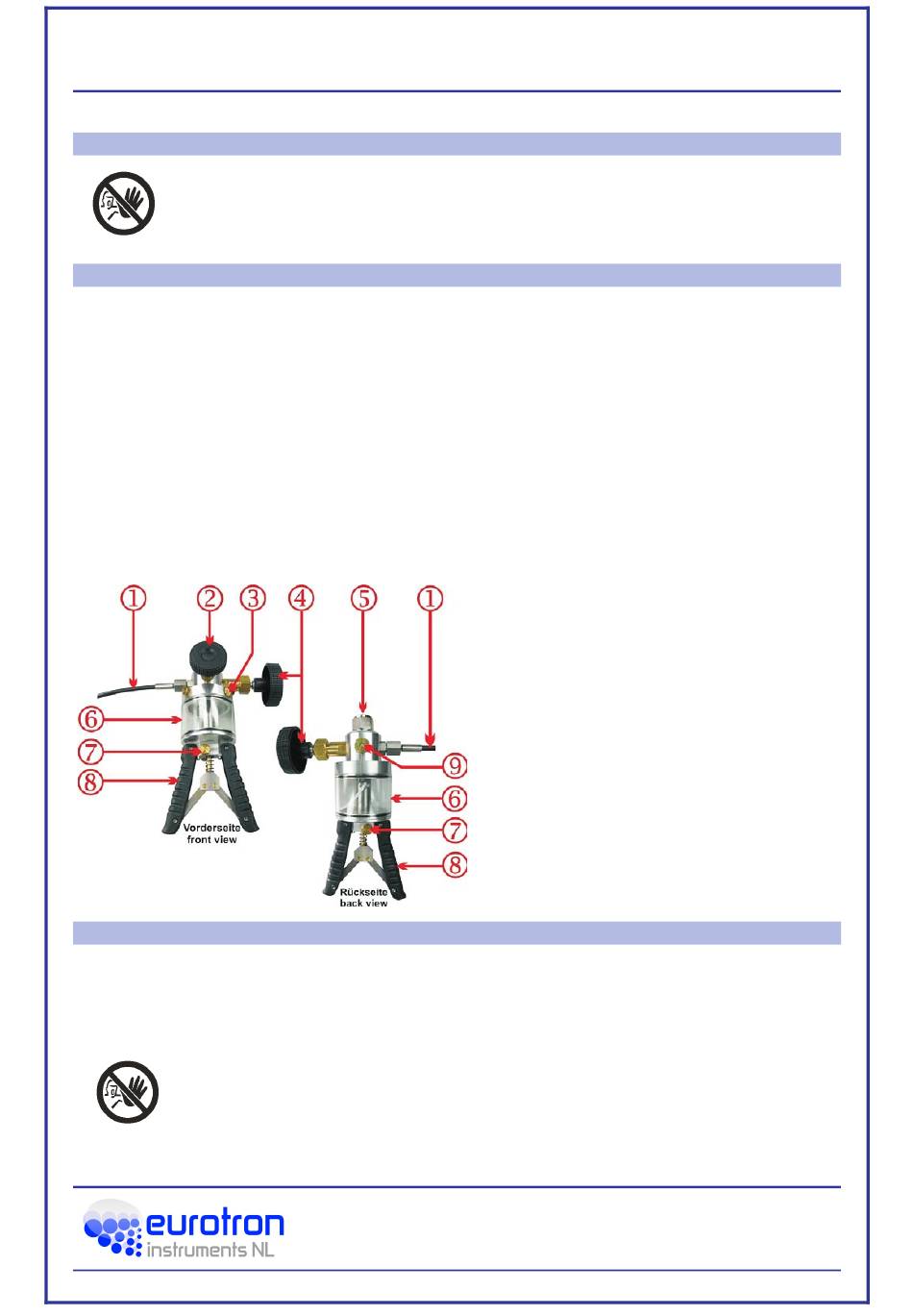

(1) = Test hose connection (hose optional)
(2) = Pressure relief valve
(3) = Filling plug of liquid reservoir
(4) = Fine adjustment valve
(5) = Pressure port for reference
(6) = Liquid reservoir
(7) = Switching knob priming / high pressure
(8) = Handles
(9) = (Blind plug - do not open!)
