User Manual
Artesis Motor Condition Monitoring Systems
eMCM (Motor Condition Monitoring with Energy Meter)
PS.01 KL.25 REV:00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eMCM and is the answer not in the manual?

Questions and answers

Related Manuals for Artesis eMCM

Summary of Contents for Artesis eMCM

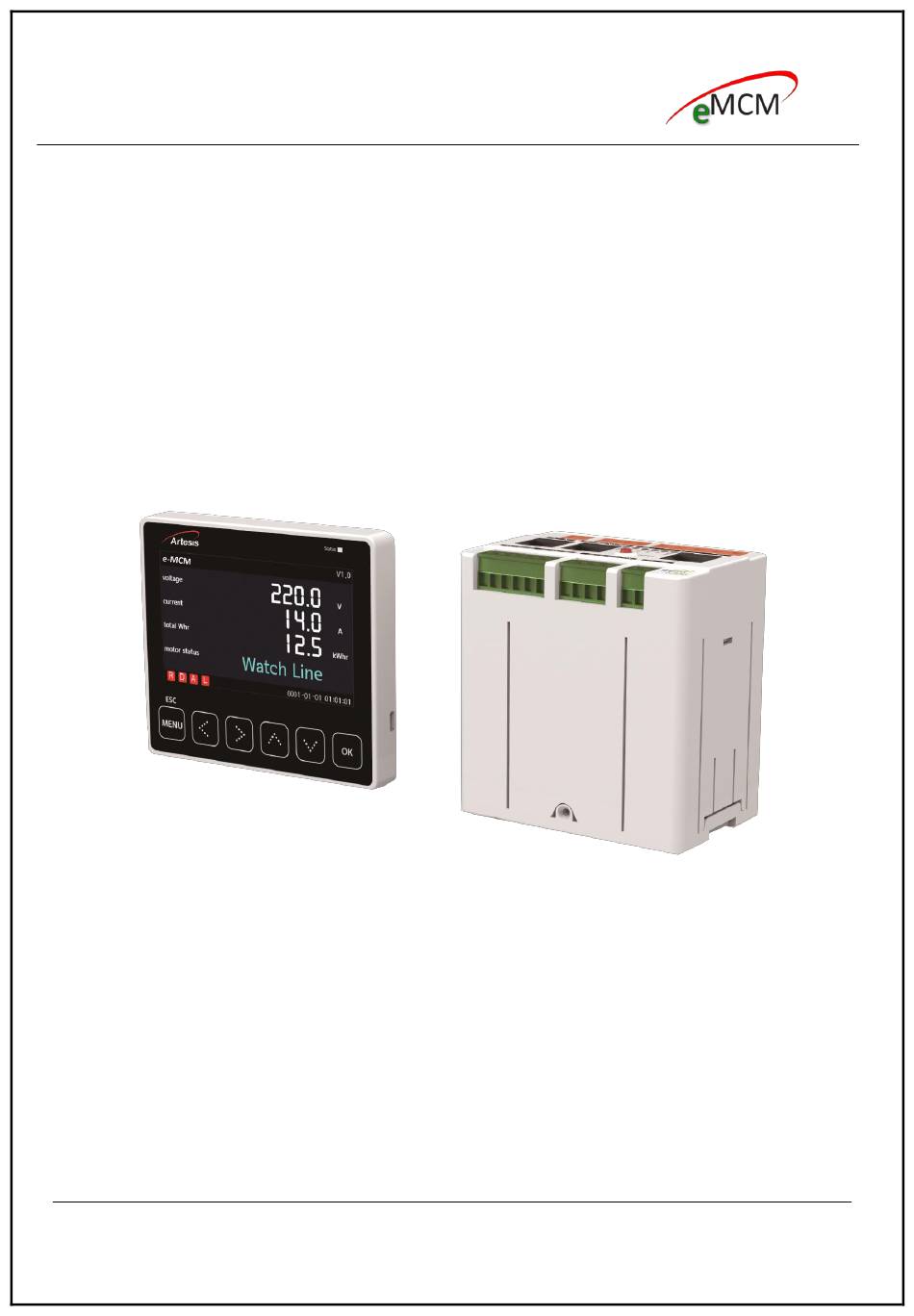

  • Page 1 User Manual Artesis Motor Condition Monitoring Systems eMCM (Motor Condition Monitoring with Energy Meter) PS.01 KL.25 REV:00...

  • Page 2: Table Of Contents

    Installation ............................6 1. Installation ..........................6 2. Name ............................7 3. Components ..........................17 4. HMI ............................18 eMCM Using ............................. 26 1. Communication Setup ......................26 2. First Use ............................ 28 3. Diagnostic Function ........................39 Appendices ............................49 1.

  • Page 3: Introduction

    While existing motor protection relay just detects current status of the motor, eMCM, in addition, can predict and monitor motor condition so that it ensures the motor safety and stable motor management. eMCM performs motor condition monitoring based on the technology developed in NASA and it needs minimum user intervention.

  • Page 4: Specification

    3. Specification Rated Specifications General Information 3‐phase, AC motors & generator. Motor current (load) variation must be less than 45% during 6 sec data acquisition period. DOL, Star-Delta, Soft Starter, Variable Frequency Driver Motor Type AMBIENT CONDITIONS ‐10 – 50 ⁰C Operating Temperature Humidity 80%, Relative Humidity, non‐condensing...
  • Page 5 Auxiliary Functions Password Password Secure configuration serial/ethernet communication for monitoring status and event Communication history Record of total running from installation which cannot be Total Running‐Hour modified or cleared Alarm output alarm signal to 3 output relays 30(diagnosis) fault history to the flash memory Fault History Block auto‐reset if the reset count exceeds the pre‐set count Limitation of auto reset attempt...

  • Page 6: Installation

    Installation 1. Installation Avoid the place with high temperature or high electrical field. In order to use eMCM correctly, following condition should be considered. Name Description Mounting Indoor Operating Temperature -10℃ ~ 50℃ Store Temperature -25℃ ~ 70℃ Humidity Relative Humidity, 80%, non-condensing eMCM should be installed within the cabinet panel or similar spaces in order to limit user access to the terminal contact.

  • Page 7: Name

    2. Name Name Function Supply voltage terminal Terminal for operational power (AC100~240V) Empty terminal No Function Motor voltage input Terminal for motor input voltage Status LED Indicates Power status, Module status, etc. CT connection port Terminal for 3 phase CT connection (RJ11) ZCT connection port Terminal for ground CT connection Reset button...
  • Page 8 2.1 Supply Voltage Terminal This is the terminal to supply voltage to the device. (AC100~240V) Pin No Description Neutral (AC) Line (AC)
  • Page 9 2.2 Voltage Input Terminal This is the terminal for measuring motor input voltage. Input voltage must be max. 690Vrms line to line. Pin No Description Connecting to R phase Connecting to S phase Connecting to T phase...
  • Page 10 2.3 Status LED Indicates device and motor condition monitoring status LED Type Description Power Indicating power status of the device StatusM Indicating module diagnostic status Empty No Function turned on when module find some changes during FaultD motor condition monitoring CommS flashes when serial communication is in progress CommE...
  • Page 11 2.4 CT Connection Terminal This is the terminal for connecting to external CT. eMCM uses dedicated CT and its pin number is as follows ✓ CT wiring should be done to become 'K' of the CT to direction of power source and 'L' to direction of the motor load.
  • Page 12 2.5 RESET Button Reset button can be used for two purpose. 1) When trip occurs, pressing this button resets relay immediately. 2) Pressing this button for more than 5 seconds makes setting value for protection function to default one. This function will be useful when user forget password or IP address of the device. Followings are the default parameters for protection function Functions Default Value...
  • Page 13 2.6 RS-485 Terminal eMCM operate as Modbus slave. External Modbus master device can acquire status data or control the device through this port. Also, several eMCM can be connected through this port. Pin No Description Transmit + Transmit - Ground...
  • Page 14 2.7 HMI Port eMCM can be connected with gems HMI through this port. User can monitor the status value acquired from eMCM and change setting values. Pin No Description Signal Ground Transmit Receive...
  • Page 15 2.8 Ethernet Port AES Config and WEBHMI can acquire data from this port. User can change diagnosis settings or acquire data from eMCM through this port. RJ-45 Pin No Description Transmit + Transmit - Receive + Receive -...
  • Page 16 2.9 Communication Connection Diagram...

  • Page 17: Components

    3. Components 3.1 eMCM & HMI...

  • Page 18: Hmi

    Name Description LCD Screen 4.3” TFT LCD Status LED Indication of operation status Buttons Six buttons are used to controlling HMI Installation Clips The clips are used for fixing the HMI to the panel Comm Port Communication output to eMCM...
  • Page 19 4.3 HMI Installation...
  • Page 20 4.4 HMI Menus 4.4.1 Main Screen Parameter Description Voltage Phase Voltage R-S Current Line Current R Total Whr Total power consumption Frequency Voltage Frequency 4.4.2 Status > Line Voltage Parameter Description Phase Voltage R-S Phase Voltage S-T Phase Voltage T-R Frequency Voltage Frequency...
  • Page 21 4.4.3 Status > Current Parameter Description Line Current R Line Current S Line current T Leakage Leakage Current 4.4.4 Status > Unbalanced Parameter Description Voltage Voltage Unbalance Current Current Unbalance...
  • Page 22 4.4.5 Status > Energy Parameter Description Total Active Power Total active power consumption Total Reactive Power Total reactive power consumption Active Power Instant active power Reactive Power Instant reactive power 4.4.6 Status > Run Status Parameter Description Run Hour Motor running hour after last start Total Run Hour Total motor running hour Power Factor...
  • Page 23 4.4.7 Status > Physical Parameters Parameters Description Gain Admittance Pfactor Power factor Phase angle Phase angle rms_val[0] Vrms R Phase rms_val[1] Irms R Phase rms_val[2] Vrms S Phase rms_val[3] Irms S Phase rms_val[4] Vrms T Phase rms_val[5] Irms T Phase balance_val[0] Voltage balance % balance_val[1]...
  • Page 24 4.4.8 Alarm 4.4.9 History > Diagnostic History 4.4.10 Setup > General>Command Parameter Description Reboot Restart eMCM Device...
  • Page 25 4.4.11 Setup > General>RS485 Parameter Description Modbus ID for communication with RS485 port of eMCM RS485 ID RS485 BAUDRATE Communication speed for Modbus RS485 RS485 Mode Slave or Master Mode Modbus ID Modbus ID Update Update eMCM after changing settings...

  • Page 26: Emcm Using

    1.1 Serial Port Option Serial port settings are under Setup>General>RS485 on HMI module. User should select same communication speed as set in eMCM. Because eMCM uses RS-485, user need to use RS-485 to RS232 converter for connecting to PC. Default serial port setting values of eMCM are shown below.
  • Page 27 Subnet Mask Address 0.0.0.0 GEMS DMS Port is the port number used to communicate with the AES Configuration application and the eMCM device. You can change the settings suitable for your network in the Setup> General> TCP / IP menu.

  • Page 28: First Use

    Artesis. 2.2 Commissioning with MCM API Tool In order to perform motor status monitoring, eMCM should learn the motor to make model of the motor and improve the model. Commissioning starts this procedure. User should enter voltage, voltage frequency, RPM, CT/PT ratio.
  • Page 29 2.2.2 Connection with serial port If your PC is directly connected to the RS485 <-> RS232 serial converter via a serial port, then make sure that Serial is selected, and enter serial communication settings in the relevant boxes below. The default settings are: Port: COM1 (This depends on your PC's setup, but most PC's have only one serial port which is addressable at COM1 by default) Parameter...
  • Page 30 This resets all setting to the factory defaults. Pressing this button shows following dialogue. After connecting current and voltage source to the eMCM and entering setting value (example: voltage 380V, current 3A), Calibrate inject same current / voltage value as setting value to the device and press [OK] button.
  • Page 31 Having configured eMCM for a particular motor, it can now be used for its intended purpose of monitoring and assessing the condition of the motor. In general, this involves first running eMCM to measure and learn the properties of the motor and then running eMCM in its test mode to perform the actual monitoring.
  • Page 32 • 7200V/100V, PT Ratio: 72 CT Ratio: The eMCM device has two models that support 3.5mA (eMCM 5A) and 100mA (eMCM 100A) current input. • For motors with nominal current of 10A and below, eMCM 5A device should be used together with current transformers with 3.5mA secondary current output.
  • Page 33 After completing initial setup, it is possible to proceed with the next step. In general, motor starts operation and eMCM starts acquisition current and voltage values. With these values, eMCM starts learning and improving. After these procedures are finished, eMCM starts motor status monitoring.
  • Page 34 Panel. With this method, commissioning can be done without computer communication. First, the HMI panel is connected to the eMCM device via the HMI port. By pressing the Menu button, Setup is selected with the up and down buttons and by pressing the OK button, the menu...
  • Page 35 After entering into the setup menu, select the Diagnostic with the up and down arrow keys and press the OK key. 2.3.1 Command Reboot, Clear Learn and Reset Factory options are available in the Command menu. Reboot restarts the device, Clear Learn deletes the previously learned model and restarts the device, while Reset Factory resets the device to factory settings.
  • Page 36 2.3.2 Setting Data Motor tag information and learning settings can be entered from Settings Data menu. Motor tag information can also be entered from the Commission menu. Select the parameter to be adjusted with up-down arrow keys and press OK button. Enter the value on the incoming numerical number entry screen by using right-left and up-down buttons and press the OK button.
  • Page 37 The number of data acquisition Update Iteration iterations required for an UPDATE phase. Motor RPM Nominal angular speed of the motor GET command, on the other hand, ensures that the previously saved parameter values are taken from the eMCM device.
  • Page 38 Motor RPM Starting check and learn periods At this stage, the eMCM device enters the CHECK mode and looks at the compatibility between the entered values and the measured values. In the absence of any alarms, errors and warnings, it...

  • Page 39: Diagnostic Function

    Having configured eMCM for a particular motor, it can now be used for its intended purpose of monitoring and assessing the condition of the motor. In general, this involves first running eMCM to measure and learn the properties of the motor and then running eMCM in its test mode to perform the actual monitoring.
  • Page 40 3.2.2 Viewing alarm messages An alarm is indicated on AES Viewer, AES Configurator or MCM API Tool of eMCM by the message. Alarm followed by a text message. Please refer to the appendix for a complete list of possible alarm conditions and their remedies.
  • Page 41 3.3 Running CHECK MOTOR On first use of eMCM and each time any maintenance is performed on the motor, it is essential that the motor together with its connections are checked by running the CHECK MOTOR function. In this mode eMCM performs a short check on all motor connections to determine the phase ordering and that a motor is connected and running.
  • Page 42 The value of this dominant frequency must be entered from the Edit Settings menu. If eMCM measures the frequency to be out of the expected range, it will issue an alarm in both the CHECK MOTOR and LEARN modes and the user should adjust the frequency setting accordingly.
  • Page 43 Tool. Subsequent restart of eMCM can be achieved by selecting RESUME from the Status menu, which will cause eMCM to continue in its incomplete mode at the point of interruption. Thus, if it is necessary to stop eMCM for any reason, it can be restarted without affecting any existing data.
  • Page 44 Although eMCM should have met the majority of working conditions in the learning mode, it is still possible for it to fail to recognize a particular working point. In such a case, the user can elect to add the current operating point to the internal database using the UPDATE feature.
  • Page 45 Update iterations A value between 1000 - 2000 is recommended. eMCM does not update the flash with new values at each iteration, as this could shorten the flash lifetime. On the other hand, the longer data are stored in volatile memory, the greater the potential for data loss if Flash update rate power fails.
  • Page 46 Therefore, any fault of the equipment that affects the motor or the three-phase system is also observed by eMCM.
  • Page 47 Their change will allow eMCM to detect the isolation problem at an early stage. Though they are primarily used to detect electrical problems, they also can indicate mechanical problems as well. As an example, an imbalance or gear problem would cause dynamic eccentricity in the air gap.
  • Page 48 UPDATE mode. This will allow MCM to learn the new voltage supply conditions, after which the status will eventually return to normal.

  • Page 49: Appendices

    Appendices 1. Appendix 1: MCM Error, alarm and warning conditions 1.1 Error Conditions Error Number Error type Description Memory The dynamic memory manager failed in a request to 0x010000 allocation error allocate a block of memory 0x020000 General error An unexpected or general error occurred Zero division 0x040000 The algorithm attempted to perform a division by zero...
  • Page 50 0x10000 General fault No data obtained, no zero crossings detected, perfect phase balance (voltage or current) 0x20000 The phase ordering used by eMCM is incorrect Phase ordering and must be rectified. Voltage phase angles incompatible with 120º 0x40000 Phase fault...
  • Page 51 (CHECK MOTOR and LEARN only). The measured frequency differed from the nominal value. During the learning period, eMCM learns the motor only at the dominant frequency. In inverter driven systems, it is important to set the...

  • Page 52: Appendix 2: Current And Voltage Sensor Selection

    2. Appendix 2: Current and voltage sensor selection Voltage transformers, current transformer and current sensors must meet local standards and regulations. For North America, current and voltage transformers must be certified by an OSHA appointed NRTL to appropriate UL or CSA - product safety standards. When selecting a current sensor, both the maximum current the motor will handle in practice and the type of motor drive used should be considered.
  • Page 53 3.2 Low voltage VFD driven motors with current transformers (V <690) 3.3 Low voltage line driven motor using existing current transformer’s secondary terminal (V <690)
  • Page 54 3.4 High voltage line driven motors with using existing current transformers secondary terminal (V >690) 3.5 High voltage line driven motors with using existing current transformers secondary terminal (V >690) (Aron Connection)

  • Page 55: Appendix 4: Hmi Menu Settings And Parameters

    4. Appendix 4: HMI Menu settings and parameters...

  • Page 56: Appendix 5: Flowcharts For Alarm Conditions

    5. Appendix 5: Flowcharts for Alarm Conditions...
