Related Manuals for GrainPro TRANSAFELINER
Summary of Contents for GrainPro TRANSAFELINER

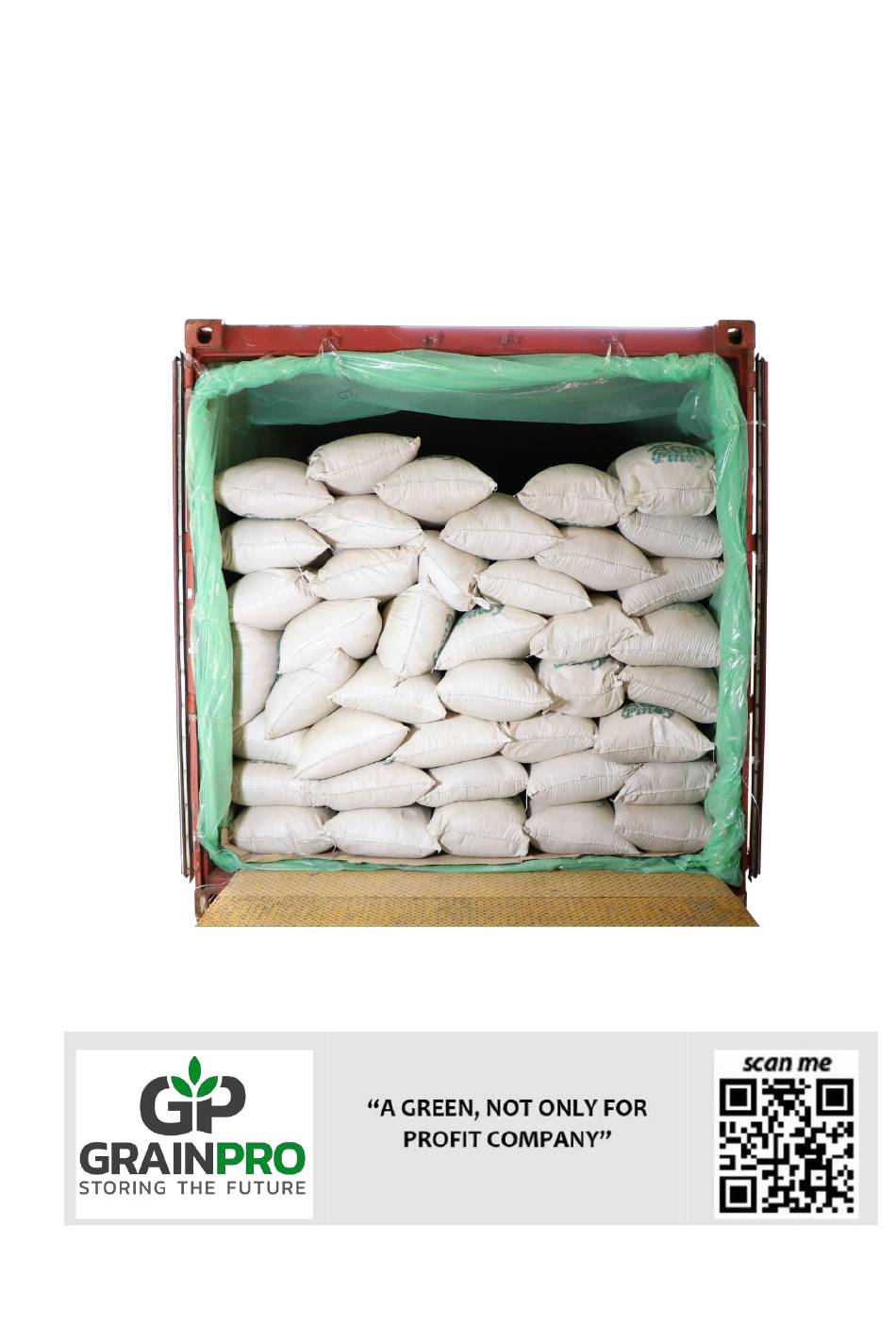

- Page 1 GRAINPRO TRANSAFELINER™ ® INSTRUCTION MANUAL (Rope Method) MA3001RR0208-20 GrainPro® TranSafeliner™ Instruction Manual MA3001RR0208-18...
- Page 2 Email: sales@grainpro.com GrainPro® Philippines, Inc. Lot 46 Efficiency Avenue, Subic Bay Gateway Park I, Subic Bay Freeport Zone 2222 Philippines Phone: +63 47 252 7884 Fax: +63 47 252 7885 Website: www.grainpro.com Email: salesasia@grainpro.com GrainPro® Kenya Shop A2, Space Apartments Mai Mahiu Road, Near T Mall Nairobi, KENYA Phone: +254 710 933 717 Website: www.grainpro.com...
- Page 3 1.1.1. Check the moisture content of the commodity using GrainPro Moisture Meter (MM5) (available for sale from GrainPro, Inc.) to ensure the MC is at a safe level for storage. Recommended Moisture Content: Coffee – 11.5-12% Cocoa – 6-7% Rice – 13-14% 1.1.2.
-
Page 4: Installation Process
2.2. INSTALLATION PROCESS 2.2.1. Secure one end of the nylon rope into the hook located on the side wall and into the first hook on the ceiling of one side of the container van. 4/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20... - Page 5 2.2.4.5. Then secure the loose end of the nylon rope onto the hook found on the mid -section of the container door. 2.2.4.6. Procedures 2.2.4.1 to 2.2.4.5 will be used on the other side of the container. 5/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 6 Desiccants are commonly used to protect goods against moisture damage. Hygroscopic commodities, such as cocoa, coffee, and various nuts and grains are particularly susceptible to mold and rot when exposed to condensation and humidity. 6/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 7 Two-thousand four-hundred (2400) grams or 12 bags of GrainPro Dry Bags per 40-footer. Note: 1 GrainPro Dry Bag contains 200 grams of calcium chloride and can absorb grams of moisture. 3.1.2. Place the GrainPro Dry Bags in perforated bags or sacks to prevent direct contact with commodity.
- Page 8 3.3.3. Pull the rope all the way out of the container to provide space between roof and liner for air circulation. 3.3.4. Hold the 2-track zippers together. Align for proper sealing. 8/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 9 3.3.9. Fold extra liner and tape it against the stack. Ensure that no liner is stuck in-between doors. 9/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 10 (½) of the final vacuum (created by the vacuum pump) within five (5) minutes. 3.4.6. If the PDT test failed, check for holes/tears and poorly sealed zippers then repeat the PDT procedures. 10/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 11 CO analyzer or O analyzer. 3.5.1. The flexible adapter hose is included in the GrainPro Carbon Dioxide Analyzer or the user can find equivalent flexible hose from local hardware using the specifications as shown: Inside Diameter 4 mm (0.16 in.) Length >5 cm (2 in.)
-
Page 12: Carbon Dioxide
Use an adjustable strap wrench to remove over-tight or rusted caps. Slowly open the valve. If the valve is hard to open, discontinue use and contact your supplier. 4.1.5. Close the cylinder valve after each use; keep closed even when empty. 12/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20... - Page 13 (i.e. 22kg standard capacities which may be used to calculate the number of cylinders required). CO cylinders are available with or without siphon (dip tube). For rapid flushing, the cylinder without siphon should be inverted. 13/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 14 4.3.7.2. Flushing (emptying of the cylinder) depends on the amount of CO to be applied. Emptying one 22kg cylinder should only take about 20 to 30 minutes. If the pressure hose or the inlet 14/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
- Page 15 25° and less at higher temperatures. 4.3.11. Although CO is not toxic, it is an asphyxiant. It is advisable to unzip the TSL and wait until most of the CO has dispersed. 15/16 GrainPro® TranSafeliner™ Instruction Manual (Rope Method) MA3001RR0208-20...
-
Page 16: Maintenance And Care
6. MAINTENANCE AND CARE 6.1. RECYCLING GrainPro TSL is made of polyethylene with barrier layer. 6.1.1.The products can be delivered to the nearest recycling facilities in the area. 6.1.2.Plastic #4 – LDPE (Low Density Polyethylene) can be recycled into compost bins, paneling, trash can liners and cans, floor tiles, and shipping envelopes.
