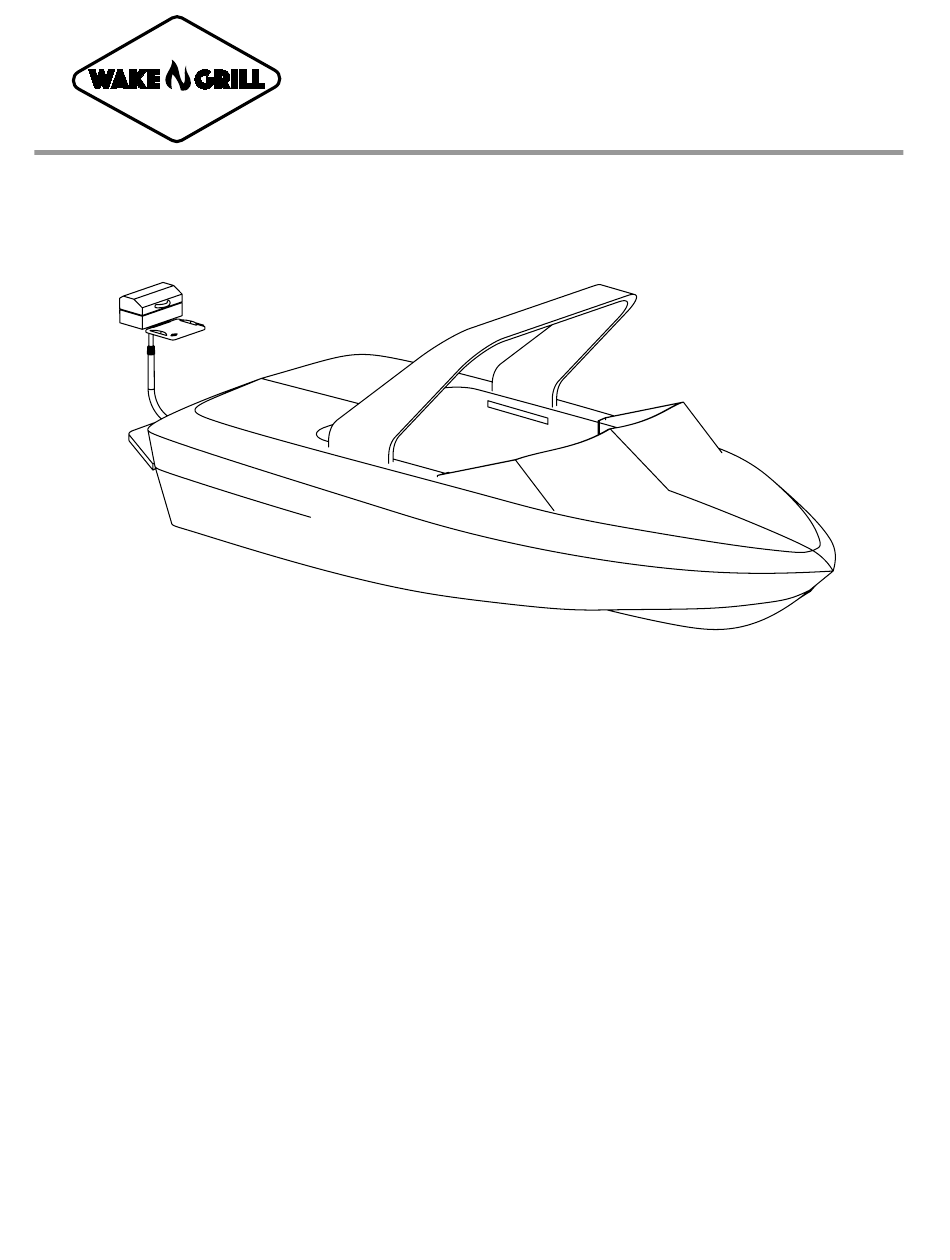

Instruction Manual (Flat Mount)
Congratulations on your purchase of the Wake N Grill. You are just a few steps away from making a great day on the
water even better!
This Wake N Grill kit is designed to provide years of service and satisfaction with the proper care and installation.
Please read these instructions carefully. If, at any time, you have a question about the installation or setup, please
review the "How To" section at www.wakengrill.com/how-to/ . If you like talking to a real person, we are here to help.
Just give us a call at 480-686-3130 for technical assistance.
After reviewing these instructions, if you feel uncomfortable performing the installation, please contact your local
dealer.
This Wake N Grill is designed to be used while the boat is moored. At no time should the Wake N Grill be used or deployed while the
● Do not allow passengers to hang on or pull on the mid arm support, grill mounting plate, umbrella support, or cutting board
platform.
● Ensure all bolts and hardware are tightened before each use.
● Do not use if hardware is missing or broken or if the components show any type of stress (cracks, broken welds, etc).
● Ensure all pull pins and twist locks are properly tightened, secured, or seated before each use.
● Do not use umbrella in windy or breezy conditions.
● Do not use Wake N Grill as a tow point.
● Always store propane tanks in accordance with local marine laws and regulations.
● Failure to adhere to these safety warnings and guidelines will void warranty and may cause personal injury.
Wake N Grill
*****Important Safety Precautions*****
Please Read
vessel is underway. Do not trailer boat while Wake N Grill is deployed.
Wake N Grill
134 E. Broadway Rd. #101
Mesa, AZ 85210
(480) 686-3130
wakengrill@gmail.com
wakengrill.com
(Rev 0)
Advertisement
Summary of Contents for Wake N Grill Wake N Grill Flat Mount
- Page 1 Please Read This Wake N Grill is designed to be used while the boat is moored. At no time should the Wake N Grill be used or deployed while the vessel is underway. Do not trailer boat while Wake N Grill is deployed.
-
Page 2: Unpack Contents
(wood shop table or other soft work area). Please identify parts using index at the back of this manual. Now is a good time to inspect parts for damage from shipping. Figure 1. Wake N Grill with Flat Mount Kit Wake N Grill Page 2... - Page 3 Figure 2. Umbrella Kit (Optional) Figure 3. Spatula Tool (Optional) Wake N Grill Page 3...
- Page 4 Step 1: Locate parts: Unwrap and inventory the following parts in preparation for assembly: (1) Cutting Board (WNG-CBRD, QTY 1) (2) Wake N Grill Fins (WNG-FIN, QTY 2) (3) 10-24 X 1” Phillips Flat Head Screw (QTY 4) NOTE: The bamboo cutting board requires food grade mineral oil to be applied periodically to keep its appearance and prevent cracking.
- Page 5 PLT. Install 4 nuts onto the bolts and tighten grill assembly to the plate. See Figure 7. NOTE: The carriage bolts are captive and should be held by the grill mount while tightening the nuts. Figure 7. Grill/Plate Assembly Wake N Grill Page 5...
- Page 6 NOTE: The Flat mount clamp is designed to fit a wide variety of swim platform brackets from different manufacturers. Figure 10. U-Channel Swim Step Bracket The Flat Mount does not have to be in Wake N Grill Page 6 any particular position nor does it need...
- Page 7 Proceed to Step 8: Center Punch holes. Figure 13. Measure Card Location to edge of Bracket Wake N Grill Page 7...
- Page 8 Once all the pilot holes have been drilled, use the provided larger 17/64” drill bit and drill all holes to the final size. Deburr the holes for a nice finish using a deburring tool or bit. See Figure 17. Wake N Grill Page 8...
- Page 9 Tighten all 4, 1/4”-20 Socket Cap Screws in a cross pattern. Complete the tightening sequence twice to ensure everything is properly seated. Proceed to next section (Lower Tube Installation). Figure 19. Backside of Flat Mount Wake N Grill Page 9...
- Page 10 The following steps describe how to properly level the lower tube, which ultimately sets the position of the Wake N Grill. The goal here is to install the lower tube parallel with the swim step. See Figure 23. This is extremely important and will ensure your hotdogs don’t roll off the grill.
- Page 11 Apply Loctite 243 threadlocker (included) to the threads of Pull-Pin. Tighten using an adjustable wrench on the flats of the Pull-Pin base. DO NOT overtighten, it will damage the slide mechanism of Figure 24. Install Pull-Pin the pin. Wake N Grill Page 11...
- Page 12 Mid-Arm. Give the Mid-Arm a tug to make sure it is locked in and cannot slide out of the Lower Arm. Wake N Grill Page 12 HINT: Practice this procedure (Step 3) on dry...
- Page 13 Grill Plate. This will position the Arm on the same side as the grill regulator and will allow more room inside the storage bag for additional supplies. THIS COMPLETES ASSEMBLY OF THE UMBRELLA ARM Wake N Grill Page 13...
- Page 14 The Wake N Grill Storage bag is capable of storing the grill, cutting board, serving trays, propane, and other accessories. There should be plenty of room. See Figure 28.
- Page 15 See Figure 31. Figure 31. Install Grill Assembly HINT: The Grill Plug has a safety groove that allows the Pull-Pin to partially engage in any Wake N Grill Page 15 position, preventing the grill from unintentionally...
- Page 16 Figure 33. Cutting Board Install Deploying/Stowing Umbrella (Op- tional): CAUTION: The Wake N Grill Umbrella is designed to deploy while the boat is moored in calm conditions. Use of the product while underway or in windy conditions (even slightly windy) can cause damage or injury and is not covered under warranty.
- Page 17 Step 3: Stow Umbrella. Simply reverse above steps. Stowing Wake N Grill: CAUTION: The Grill and accessories should never be stowed until they are cool to the touch. Stowing hot items could result in injury and damage the storage bag.
-
Page 18: Care And Maintenance
Authorized Dealer please email or call Wake N Grill direct. If the return of defective merchandise is necessary, call Wake N Grill at (480) 686-3130 to obtain a Return Authorization (RA) number. Package all defective items in the original container or in a suitable package that will prevent shipping damage, and return to: Wake N Grill 134 E.
