2.4

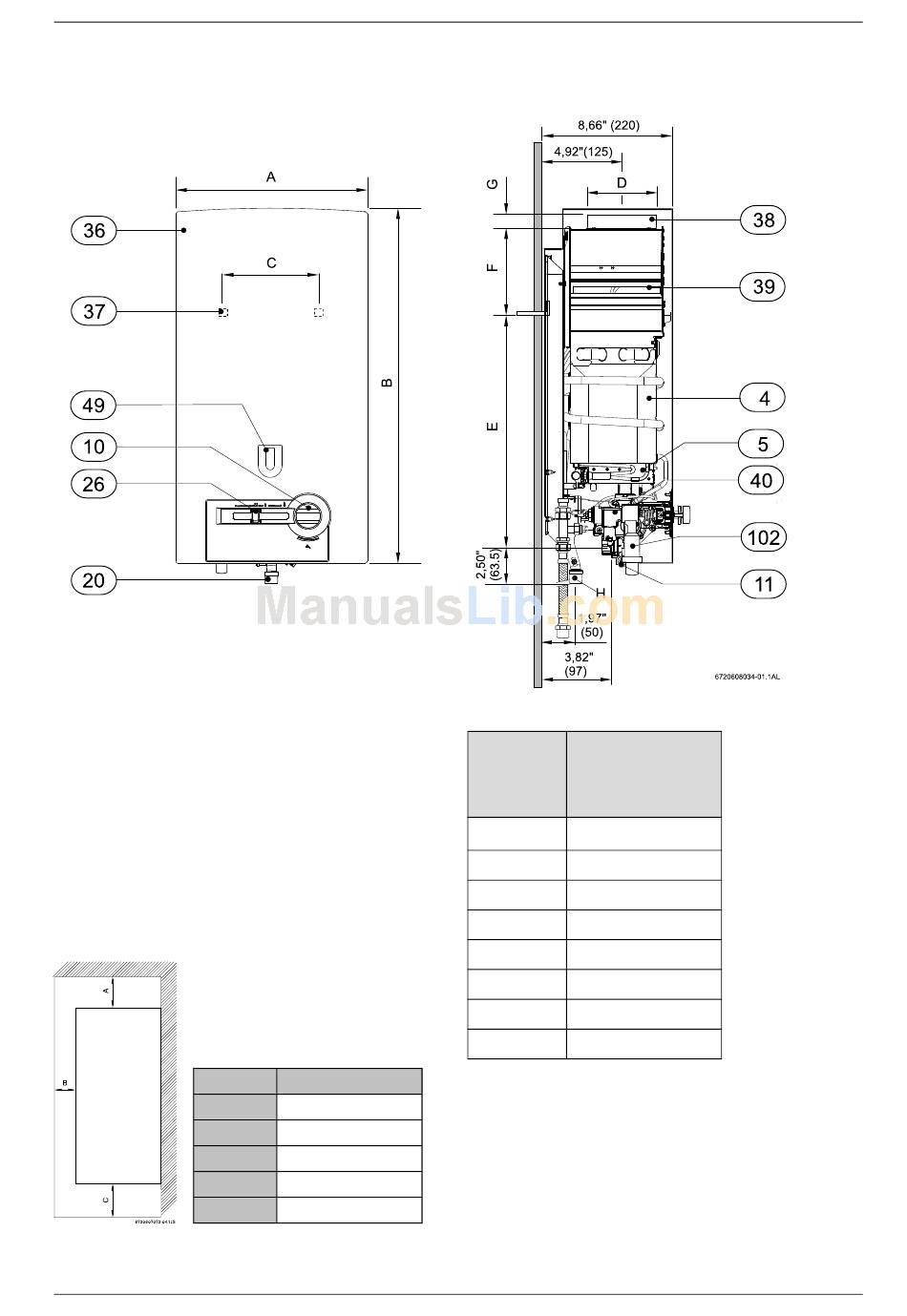

Dimensions and installation clearances

Fig. 3

Dimensions in Inches and (mm)

Heat exchanger

Burner

Temperature control

Water valve

Gas connection

Output control

Front cover

Hole for fixing to wall

Exhaust pipe to wall

Draught diverter with flue gas monitor

Gas valve

Observation window

102

Piezo

TOP (A)

FRONT (B)

BACK

SIDES

BOTTOM (C)

Fig. 4

Minimum clearances

6 720 608 034

Model GWH 425

12 inches (306 mm)

4 inches (100 mm)

0 inches

4 inches (100 mm)

12 inches (306 mm)

Dimensions inches

(mm)

GWH 425 PN

16.73" (425)

25.75" (655)

13.15" (334)

5.11" (130)

21.25" (540)

2.55" (65)

1.18" (30)

3/4"

Table 1 Dimensions in inches (mm)

Appliance details
