Summary of Contents for Shipsonic Heavy Duty Series

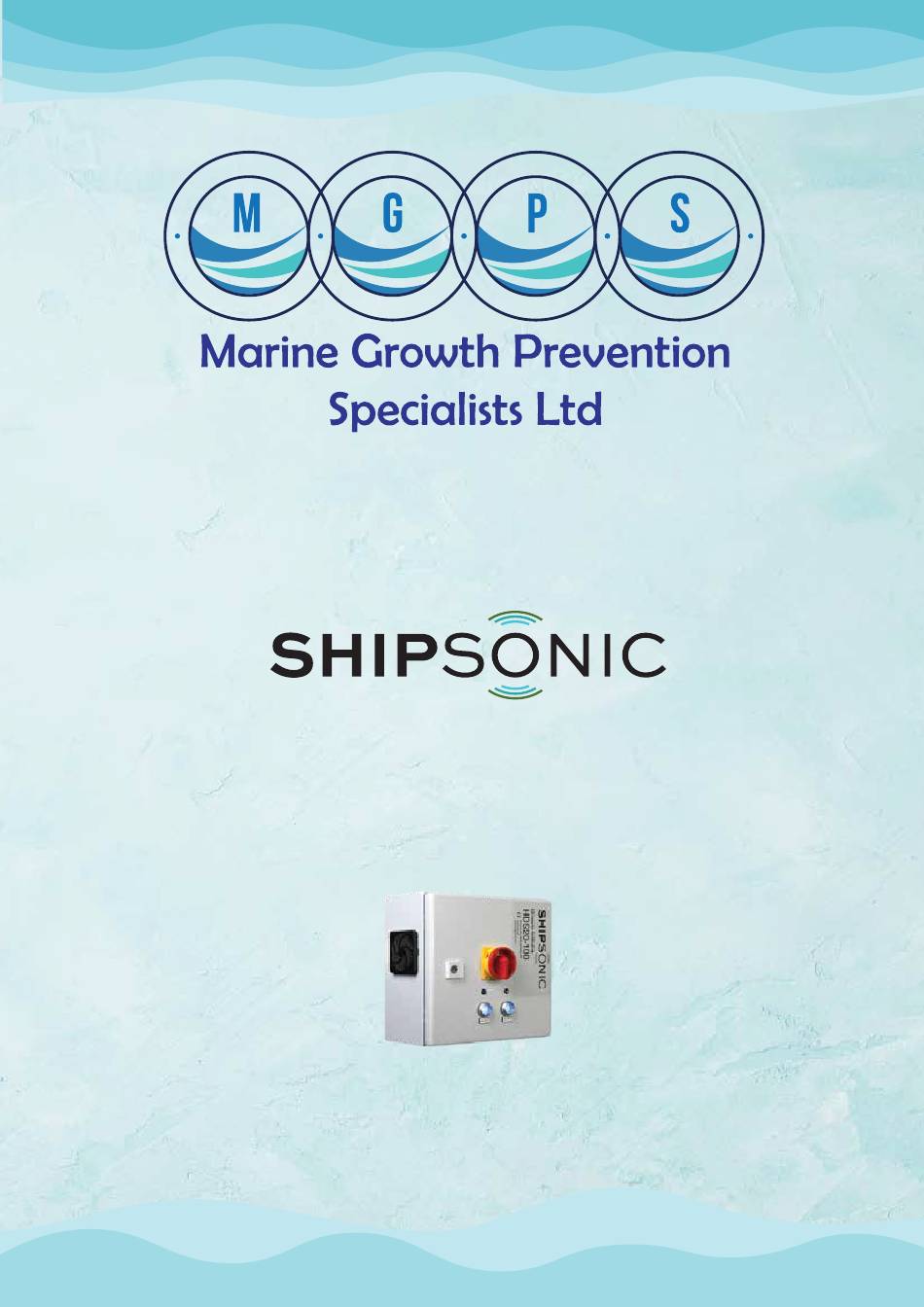

- Page 1 Distributors for: Ultrasonic AntiFouling Protection Systems HDS20 INSTALLTION GUIDE www.mgpsltd.com...
-
Page 2: Table Of Contents
Heavy Duty Series (HDS) Installation and user guide HDS20 (2 transducer of 100 Watt or 120 Watt) Contents Delivery________________________________________________________________________ 3 Parts list________________________________________________________________________ 3 System dimensions and weights ____________________________________________________ 3 Product overview outside _________________________________________________________ 4 Product overview inside __________________________________________________________ 4 System identi cation _____________________________________________________________ 5... -
Page 3: Delivery
Delivery Inspect the shipping crate for exterior damage and if necessary bring this to the attention of the freight carrier. Unpack the crate immediately after delivery. Inspect if the contents comply with the packing list from MGPS Ltd Check the contents for damage Open the control unit and inspect the interior for loose and/or damaged parts. -
Page 4: Product Overview Outside
PCB is functioning properly. Power supplies, PCBs, activation buttons, indicator lights and trans- ducer connectors have corresponding numbers. WARNING: High voltage and high capacitance is present in Shipsonic HDS ultrasonic systems. Only qualified electricians are permitted to work on this equipment. www.mgpsltd.com... -
Page 5: System Identi Cation
System identi cation Digits of the information on the identification sticker: Type: HDS X0 - XXX Wattage of transducers Number of transducers Serial: HDS X0 - XXX-XX-XX Serial number in year of manufacture Year of manufacture Wattage of transducers Number of transducers Plan the layout of your complete system. -
Page 6: Transducer Cable
Installation of the transducer Delta-sistems o ers di erent types of transducers: -100 Watt, 28 kHz water resistant IP63, PVC housing, direct glue or aluminum bracket installation -100 Watt, 28 kHz water proof IP67, POM and stainless steel 316 housing, direct glue installation -120 Watt, 20 kHz water proof IP67, POM housing, direct glue installation Especially for clients that operate ROVs, we o er 50 Watt, 40 kHz transducers (water proof IP67, POM and stainless steel 316 housing, direct glue installation). -
Page 7: Schematic Electrical Diagram
Schematic electrical diagram For a detailed electrical diagram please refer to the technical documentation that you have received separately. Maintenance checklist Your ultrasonic antifouling system does not need regular maintenance. Just check the following minor items regularly: -Check the inside of the cabinet and remove dust and particles once per month -Check the installation of the transducer. -
Page 8: Technical Support And After Sales Service
Requests for parts can also be placed by phone or sent by email to your local agent or Shipsonic. If a system needs to be returned for repair, contact your local agent or Shipsonic directly. We will arrange the repair and/or eventually the exchange of the system. Shipsonic pays for all repairs/replacements within the warranty period (1 year).
