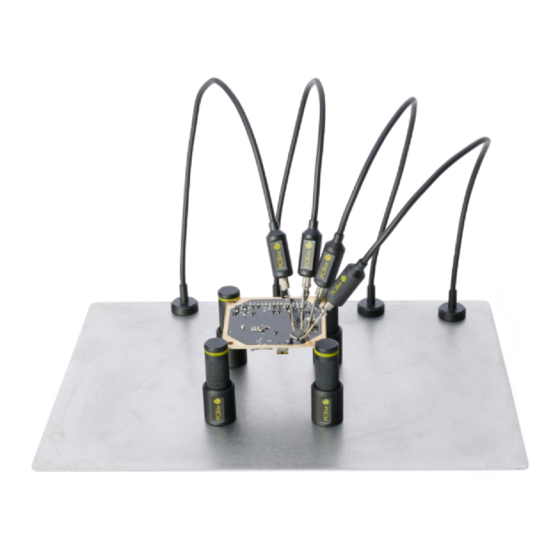

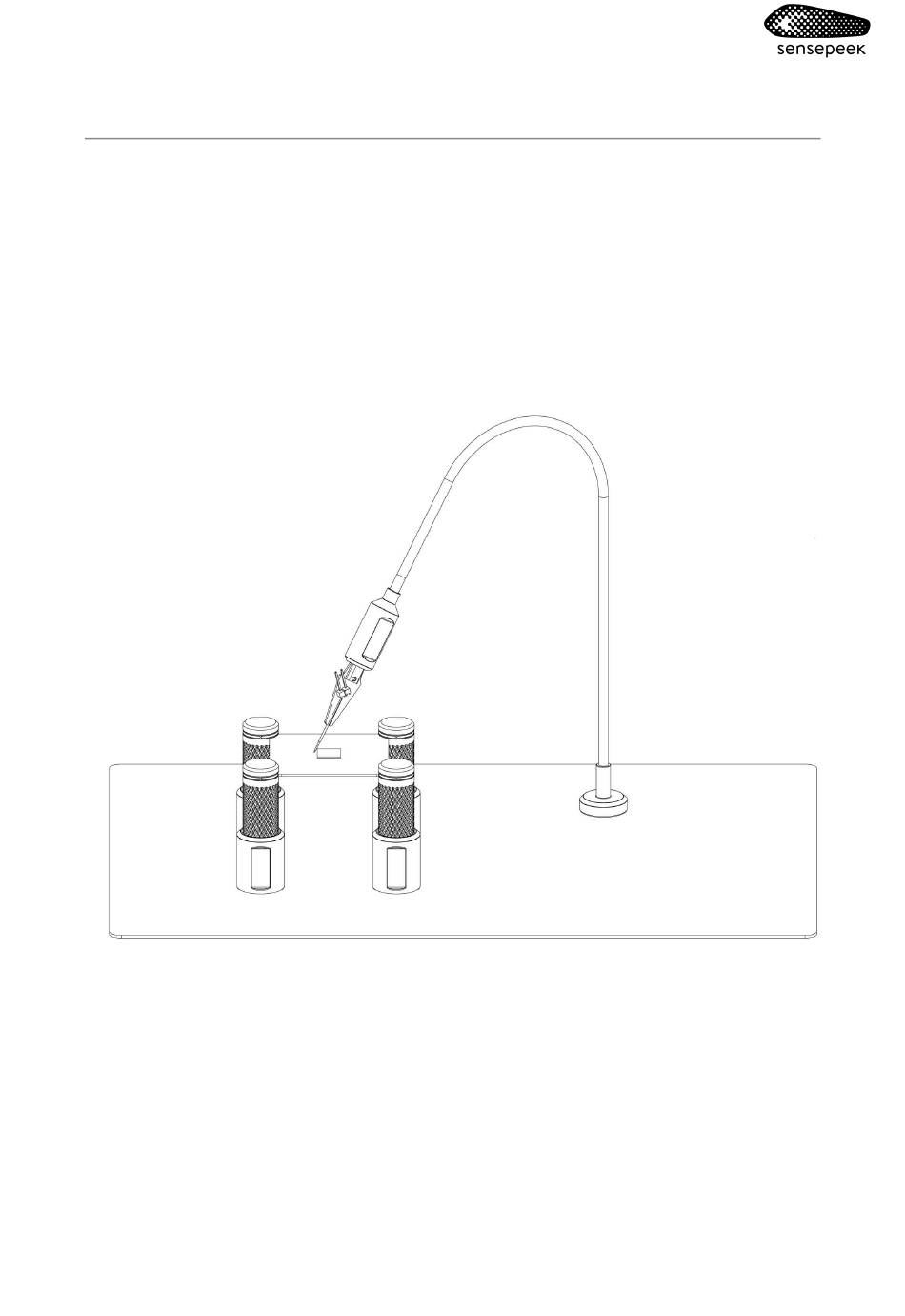

- Page 1 User's Guide SP10 - Passive 1:1 hands-free probe Made in Sweden by Sensepeek AB, Verkstadsgatan 2, Vellinge, Sweden Rev 1.0 - Specifications are subject to change without notice.
- Page 2 Or ensure WEEE compliant collection and treatment yourself. Do not dispose of this product as unsorted municipal waste Delivery cost of any authorized product returned to Sensepeek will be at the expense of the sender. Safety To prevent possible death, personal injury, electrical shock, fire or damage to the product, carefully read this safety information before use of the product.
- Page 3 qualified personnel should use this product, only as instructed and with only accessories supplied or recommended. Protection provided by the product may be impaired if used in a manner not specified in this guide. A CAUTION identifies conditions or practices that could result in damage to connected product or equipment.
- Page 4 CAUTION Applying a voltage to the ground input is likely to cause permanent damage to the probe or other connected equipment. Environment WARNING To prevent death or injury, do not use near explosive vapor or gas. CAUTION To prevent damage to the probe, always operate and store your probe according to the levels specified in this guide.
- Page 5 Overview 1. Probe head 2. Pin head connector (signal) 3. Probe arm a. Probe base (with magnet) b. Flexible arm c. Probe arm grip Getting started 1. Attach probe head to the probe arm with the M4 thread 2. Connect your instrument to the pin head connector Operating Instructions Position the probe - Place the probe foot on the base plate and the magnet will keep it in place.
- Page 6 Reposition the probe - Slide the probe foot on the base plate. Detaching the probe - Tilt the probe foot gently and remove the probe arm. Avoid pulling in the flexible arm! Measuring with the probe 1. Lift the probe in the probe grip 2.
- Page 8 Specifications Probe Characteristics Model SP10 Bandwidth > (MHz)* Rise time (ns), calculated Attenuation Ratio Needle Resistance (ohm) < 0.02 Full-scale measurement range (for safe operation) Maximum Input: 1:1 Input Voltage, Fulfill the signal voltage limits of Voltage: +/-60 V DC, 30 V AC RMS, +/-42.4 V pk EN 61010-031:2015 max.
