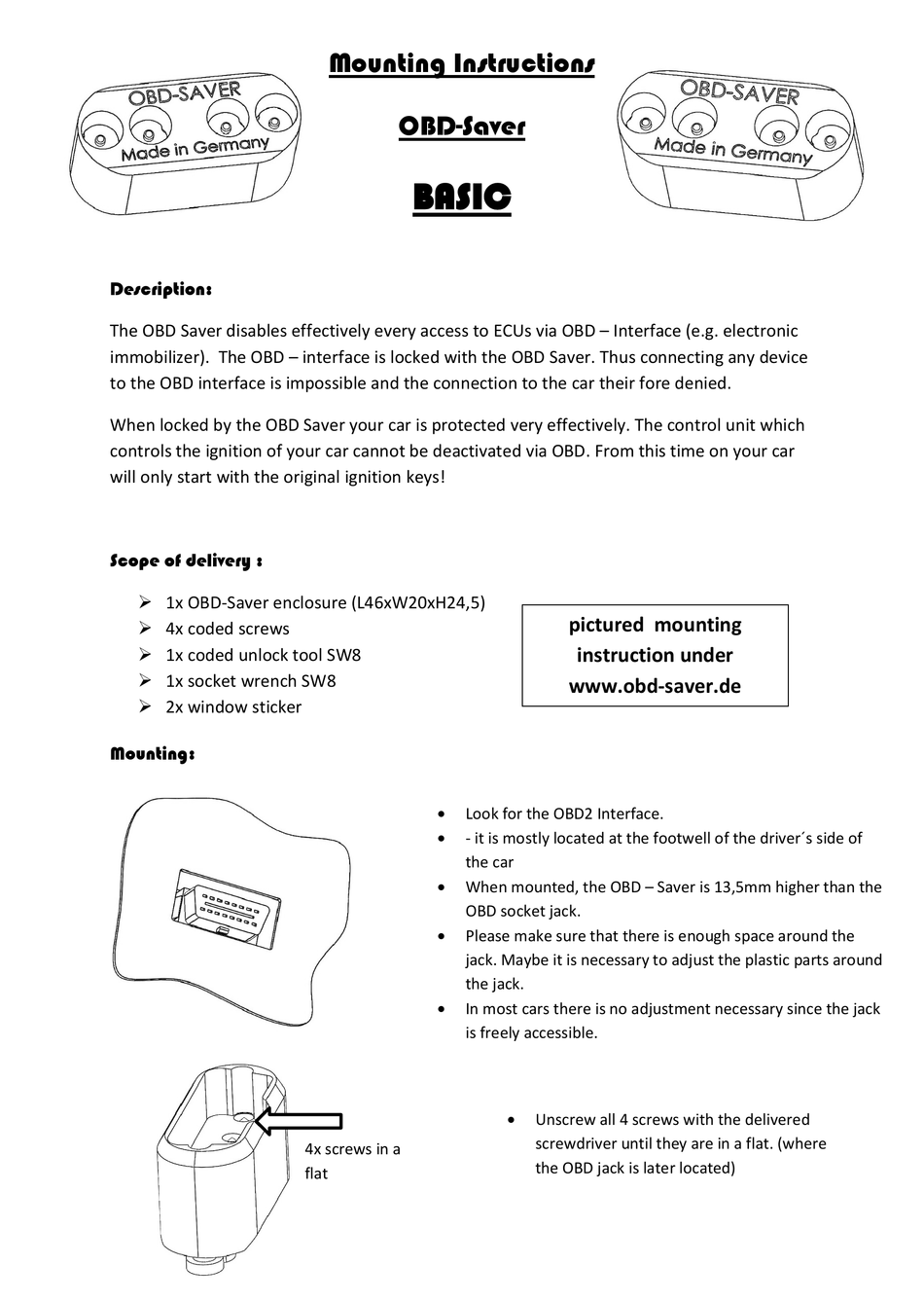

Roog-Performance OBD-Saver BASIC Mounting Instruction

Description:

The OBD Saver disables effectively every access to ECUs via OBD – Interface (e.g. electronic
immobilizer). The OBD – interface is locked with the OBD Saver. Thus connecting any device
to the OBD interface is impossible and the connection to the car their fore denied.
When locked by the OBD Saver your car is protected very effectively. The control unit which
controls the ignition of your car cannot be deactivated via OBD. From this time on your car
will only start with the original ignition keys!

Scope of delivery :

 1x OBD-Saver enclosure (L46xW20xH24,5)
 4x coded screws
 1x coded unlock tool SW8
 1x socket wrench SW8
 2x window sticker

Mounting:

Mounting Instructions

OBD-Saver
BASIC
Look for the OBD2 Interface.
•
- it is mostly located at the footwell of the driver´s side of
•
the car
When mounted, the OBD – Saver is 13,5mm higher than the
•
OBD socket jack.
• Please make sure that there is enough space around the
jack. Maybe it is necessary to adjust the plastic parts around
the jack.
In most cars there is no adjustment necessary since the jack
•
is freely accessible.
4x screws in a
flat
pictured mounting
instruction under
www.obd-saver.de
Unscrew all 4 screws with the delivered
•
screwdriver until they are in a flat. (where
the OBD jack is later located)
