Summary of Contents for FlexiForce GSM-02

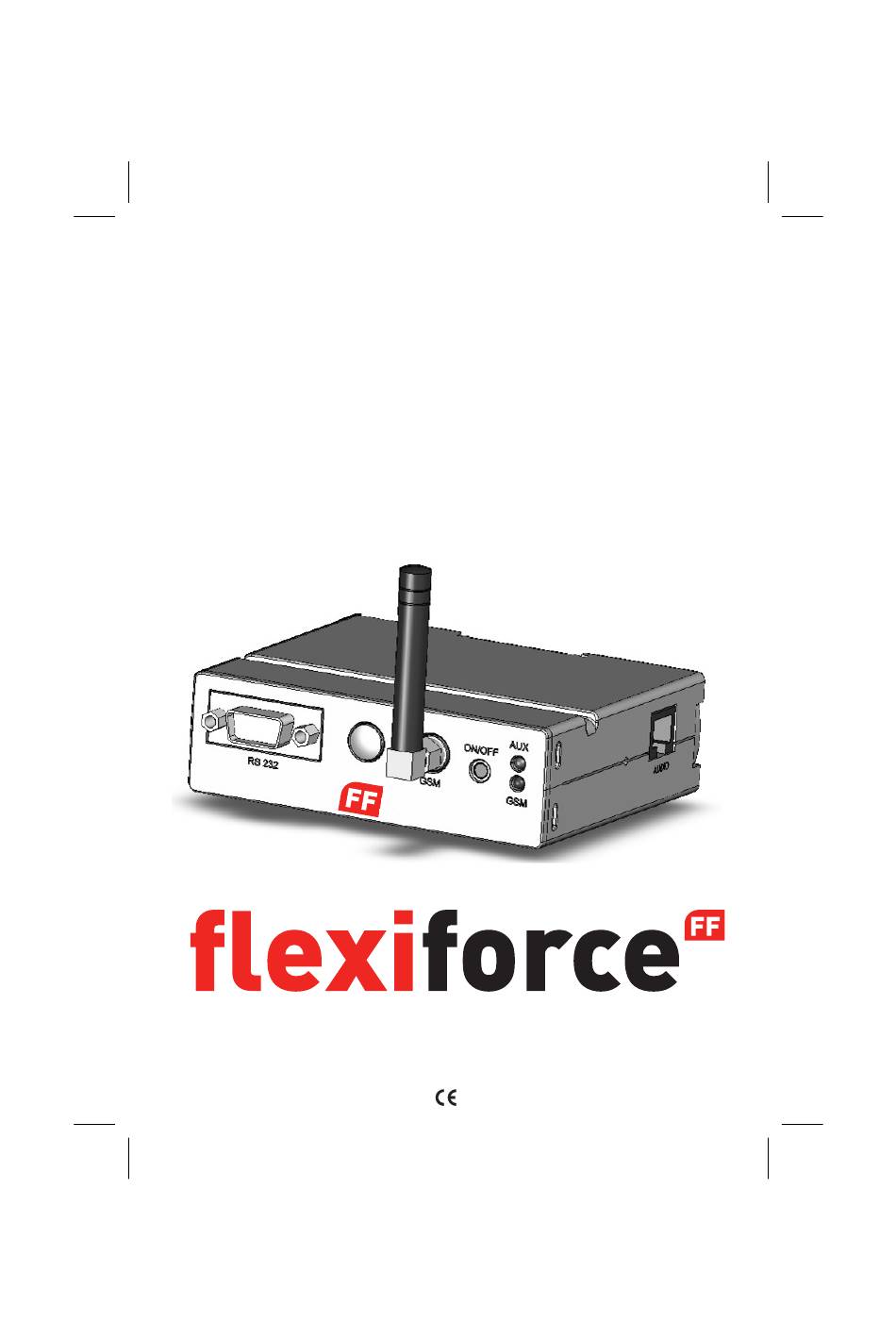

- Page 1 UK - FLEXIFORCE GSM-02 MANUAL V2.3 EU FLEXIFORCE GSM-02...
-
Page 2: Quick Start

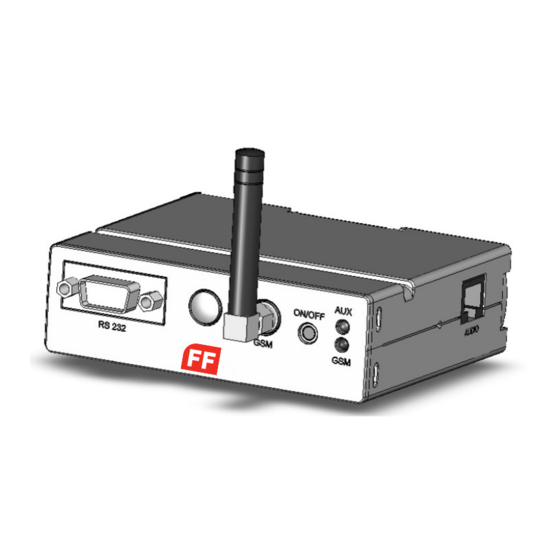

WHEN THE GREEN LED IS PERMANENTLY ON, THE UNIT IS ACTIVATED. THERE CAN BE SWITCHED OR THERE CAN BE MADE A CONNECTION WITH THE SOFTWARE. A green LED that is permanently on indicates that the GSM-02 is ready for use. You can programm the GSM-02 by following commands. - Page 3 English English Front view Side A view Side B view Bottom view...
- Page 4 Green: Normally open Relay White: Normally open Relay The power supply of the GSM-02 Terminal has to be a single voltage source of POWER 5V- 24Vdc capable of providing a peak during an active transmission. The GSM-02 Terminal is protected from supply voltage reversal. An internal fuse ensures an electrical safety accord- ing to EN60950.
- Page 5 160g Dimensions (max) L x W x H 98 mm x 82mm x 30mm Temperature range -20°C to +70°C ambient temperature IP40 Avoid exposing GSM-02 Terminal to liquid or Protection class moisture. Mechanical vibrations Amplitude 7.5mm at 5-200Hz sinus Air humidity...
- Page 6 SMS Interface Description (List of SMS command for GSM-02) 1.1 Password Every SMS starts with p:password (standard 1234) Example: P.1234A.0541122333.0544455666 The command P. the password is 1234 the command A. is add new phone number to the list, in this example: 0541122333 en 0544455666 1.2 Add new phone number...
- Page 7 Example: P.1234CU 1.8 New password NP.new password Sets new password to the GSM-02 unit (the CSD password infect also). (be careful with it, when lost, the module have to get back to the manufacturer) Example: P.1234NP.4321 Change the password to 4321 1.9 Enable\Disable...
- Page 8 Save Save as … Open backup unit data from the PC file Control the GSM-02 unit via RS232 or CSD To select the connection, push the phone icon number 1 on the top image. • Select RS232 COM port from 1-16 or Modem for CSD connection.
- Page 9 Box icon, to make first time excel file use EXPORT TO EXCEL, this way the basic file • with all column will be show. To compare the phone number list that in the GSM-02 unit to the list on the PC file, • use QUICK COMPARE box icon.
- Page 10 GSM-02 unit the index marker will change to green. To load new phone number to the GSM-02 unit us the SET box icon. The new user is • now on the list.
- Page 11 English English Miscellaneous At this page set all miscellaneous options that will activate the GSM-02. • UNIT NAME, for multi gate user, each unit have name. • UNIT TIME, set time for special phone number and log. • UNIT PASSWORD, change unit password, same password apply to SMS RS232 or •...
- Page 12 At this page each call will be register for log report. • Log can be exported to excel file. • Unit can save 1000 log lines. •...
-
Page 13: Safety Recommandations
English English Safety recommandations READ CAREFULLY It is responsibility of the user to enforce the country regulation and the specific environment regulation. Do not disassemble the product; any mark of tampering will compromise the warranty validity. We recommend following the instructions of the hardware user guides for a correct wiring of the product.
