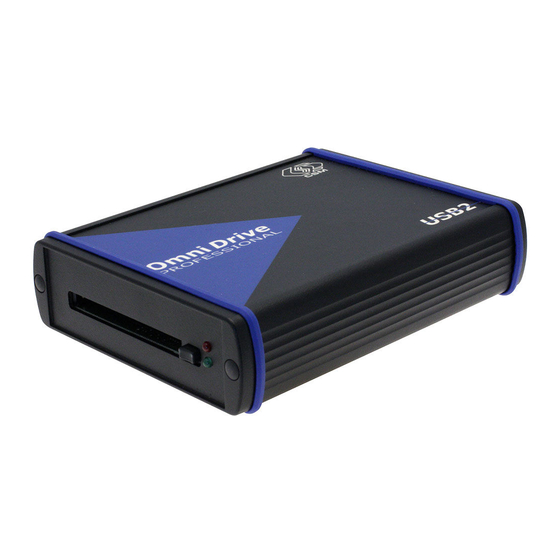

CSM OmniDrive USB2 intern Pro Installation Manual

OmniDrive USB2 intern Pro/LF
Installation Manual

Liability remarks

This installation manual and other documents are part of the product and contain important information for its
safe and efficient use. To maintain the high quality level the product is continuously being developed, which may
result in the product's technical details changing at short notice. As a result, the contents of this documentation
may differ from the technical specifications of the product. No claims against the manufacturer can therefore be
derived from the contents of the product documentation.
CSM GmbH is not liable for technical or editorial errors or missing information.
CSM GmbH assumes no liability for damage resulting from improper use of the product and/or non-observance of
the product documentation, in particular the safety instructions.

General instructions

Please read this document carefully before installing the OmniDrive USB2 intern Pro/LF hardware and software
and follow the operating instructions which it contains.
The equipment should not be used without prior familiarization with the operating instructions. The equipment
should not be used beyond the limits which are specified in the technical data.
All hardware, software and documentation rights belong to CSM GmbH. Copies may be neither made nor used.

Hardware installation

CAUTION!
EMC hints have to be observed, see chapter "EMC" below.
f
The PC must be switched off for the hardware installation.
f
Modifications to the connector assembly must be applied with the PC powered down.
f
CAUTION!
Before you start with the hardware installation take care that there is no static electrical
discharge on the OmniDrive USB2 intern Pro/LF or on any other system component. Discharge
yourself by touching a grounded object before you remove the OmniDrive USB2 intern Pro/
LF from its package. Be always sure that you do not touch any component before you are well
discharged.
