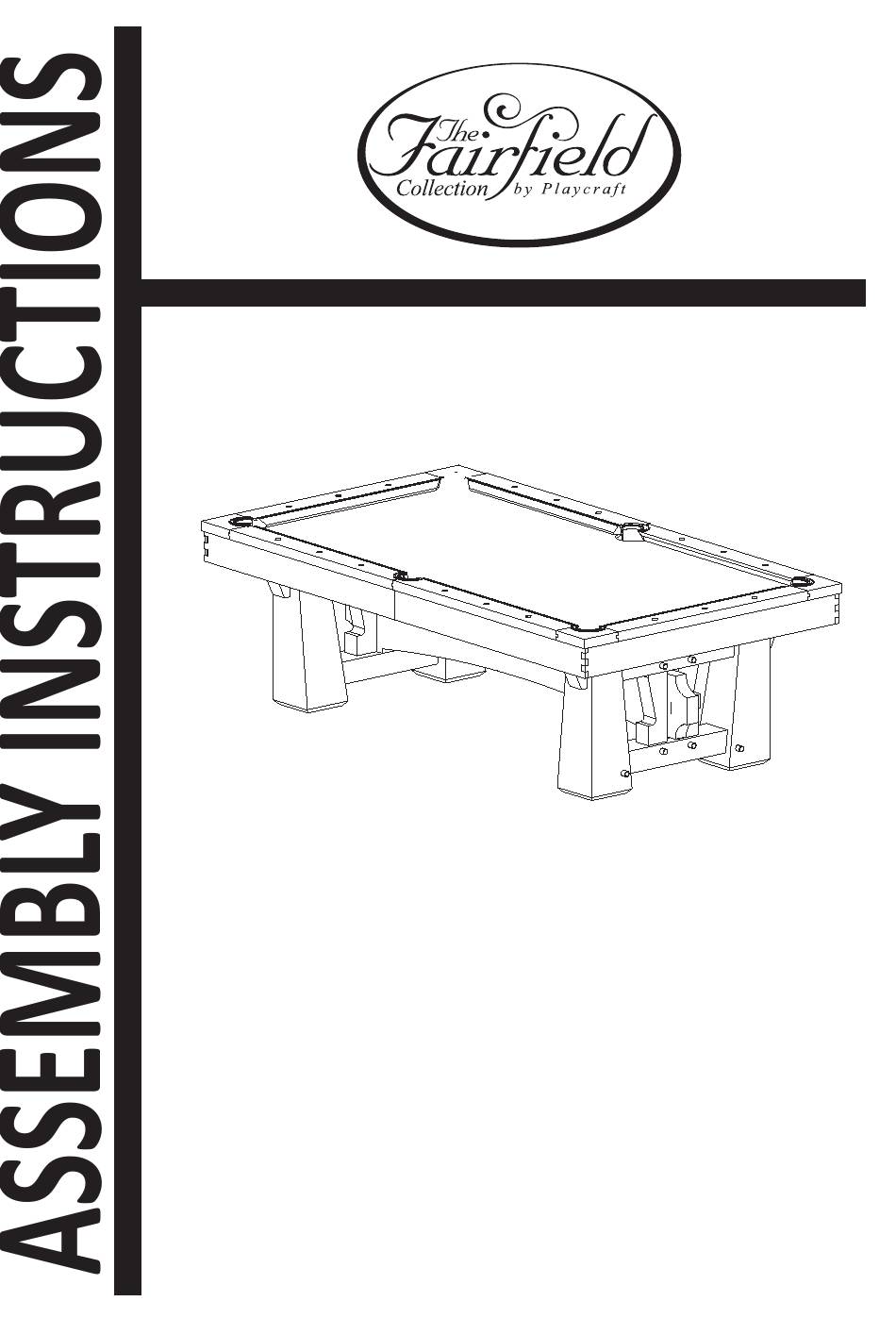

- Page 1 Bull Run...
- Page 2 Bull Run assistance. Your table is designed for use indoors in a climate controled environment only. Damage can occur if the table is exposed to water, dampness, high humidity, freezing temperatures, etc. Professional assembly is strongly recommended. This assembly manual is intended to guide an experienced slate pool table installer with the assembly process of this for which the process is the same regardless of the cabinet type.
-
Page 3: Part List
PART LIST IMAGE DESCRIPTION SPECIFICATION UNIT 1200*228*660 ASSEMBLY FRAME POSITION BOTTOM 2286*300*65 SUPPORT BEAM ASSEMBLY FRAME POSITION WOODEN PLUG 167*56*65 ASSEMBLY FRAME POSITION CROSS BEAM 1173*180*40 ASSEMBLY GRADE A BEAM POSITION LONGITUDINAL 1936*180*40 BEAM ASSEMBLY GRADE A BEAM POSITION MIDDLE BEAM 893*120*40 ASSEMBLY GRADE A BEAM... -
Page 4: Hardware List
HARDWARE LIST IMAGE DESCRIPTION SPECIFICATION UNIT HEXAGON BOLT ø10*80 ASSEMBLY 2 PCS FOR BOTTOM SUPPORT BEAM AND LEG POSITION FLAT WASHER M10*30*2 2PCS FOR BOTTOM SUPPORT BEAM,8PCS FOR ASSEMBLY TABLE FRAME AND LEG POSITION HEXAGON BOLT ø12*180 ASSEMBLY USED TO FIX THE CROSS BEAM POSITION FLAT WASHER M12*30*2... - Page 5 WOODEN PLUG ø10*50 USED TOCONNECT #2 AND #5 TOP RAIL ,#3 AND #6 ASSEMBLY TOP RAIL POSITION BARREL NUT ø8*30 ASSEMBLY USED TO FIX THE TOP RAIL AND CORNER POSITION SEMICIRCLE WASHER ASSEMBLY USED TO FIX THE TOP RAIL AND CORNER POSITION FLAT WASHER ASSEMBLY...
- Page 13 Customer Service Global Merchants, Inc. 12 Lunar Drive Woodbridge, CT 06525...
