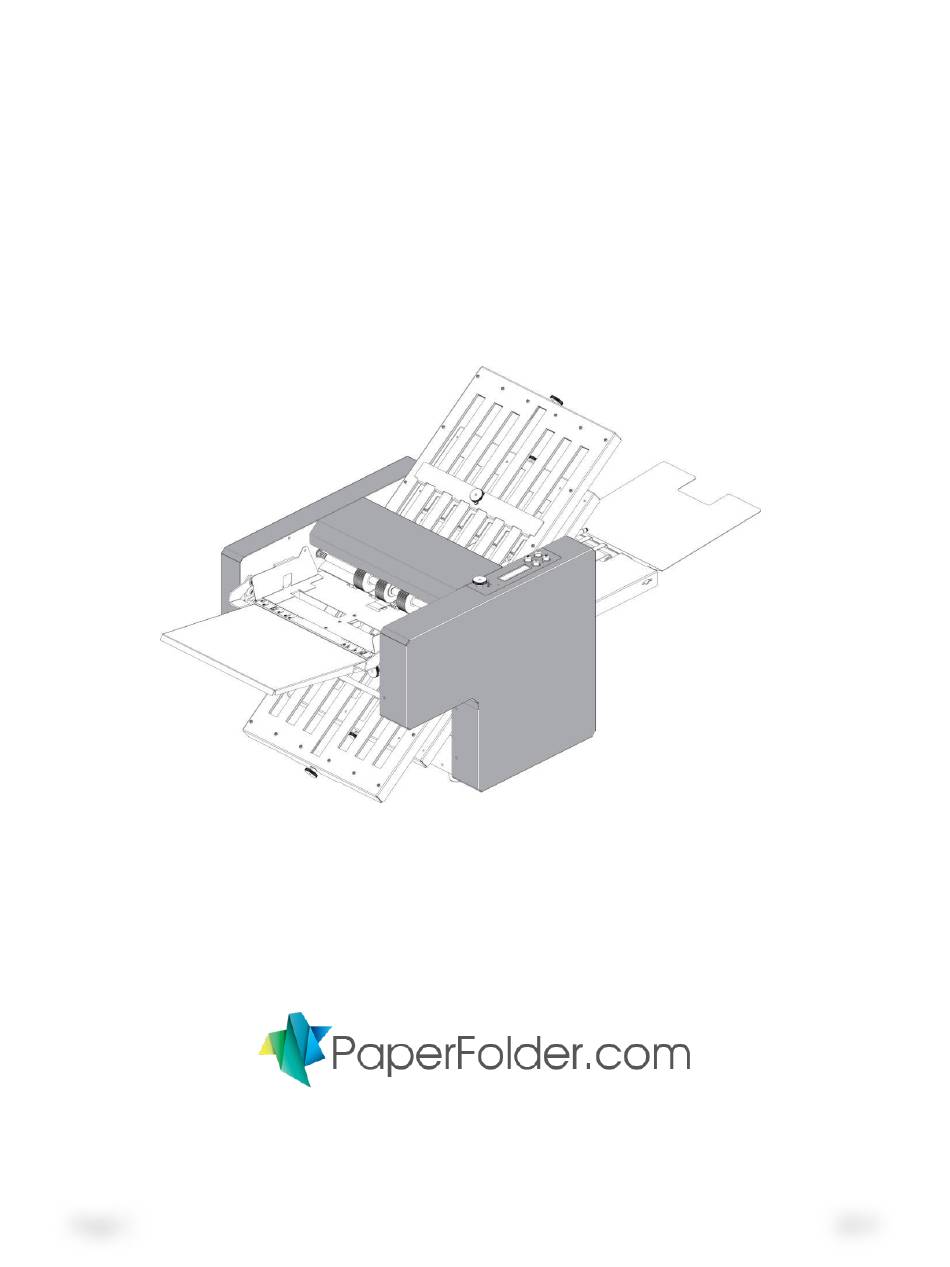

- Page 1 The PaperFolder Co. PF-34 M 4 Plate Paper Folding Machine Operator Manual 800.520.6008 Page 2019...
- Page 2 1. Installation - ...................... 1. Output Tray and Wheels 2. Fold plates 3. Paper Thickness Adjustment 4. Paper Feeding Separation 5. Paper Creasers 2. Paper Loading ....................3. Setting the folding table ................4. The LCD Control Panel ................5. Folding modes exampling ................
-
Page 3: Installation
INSTALLATION Unpack machine. Put machine on a table. Open the paper Feed Tray. Make it can move up and down to load paper. Open the Cover. Cut plastic tie. Page 2019... - Page 4 OUTPUT TRAY Slide output tray into machine just below rubber rollers. The 2 slots on the end fit on a bar. Lower it with the slots on the bottom on the outer bar. Make sure the gears are aligned on the right side. Page 2019...
- Page 5 OUTPUT WHEELS Install the output wheels by placing the side with the spring in the hole closest to the rollers on the left side of the machine. Note that it has to go under the cross bar. Press it in so that you have clearance to put the right side in the hole on the right side. Attach the output wheels.
- Page 6 INSTALLING THE FOLD PLATES Install fold plates in this order: 4, 2, 3, 1. The trays have numbers on them. They fit on the 2 posts with the corresponding numbers, e.g. Plate 4 goes on the 2 posts marked 4. The slot on the end attaches to the inner post;...
- Page 7 PAPER ADJUSTMENTS The 34M has many adjustments which aid in the processing of different paper stocks. These should be set for the paper you are using. Paper Thickness Start with the setting here for standard thickness paper. Copy paper is usually 20# bond or 50# text.
- Page 8 Paper Creasers There are 3 paper creasers on the back of the 34M which can be used when you want to perform a cross fold. A crease makes the fold better. To see these more clearly, remove the fold plates in the back. In this example, the upper one is set to crease the paper.
- Page 9 Loading the paper Add a stack of paper to the Paper Tray. • Press the front of the tray down to load the paper. • Move the side guides to be snug with each side of the stack. It should be •...
- Page 10 Close all plates that are not used in the fold. If you need to make a fine adjustment, turn the knob on the end of the fold plate, right (clockwise) to increase the fold size, left to decrease the size. WHEN YOU GET THE FOLD WHERE YOU WANT IT, MAKE A MARK ON THE FOLD PLATE AND GIVE IT A NAME.
-
Page 11: Lcd Control Panel
Double Closed Closed Engineering Closed Closed Gate Closed Closed 4 panel Closed accordion 5 panel accordion Roller Closed Triple Double Closed Single + letter Closed Single + Z Closed LCD CONTROL PANEL Page 2019... - Page 12 PLEASE NOTE: THE COUNTER CAN BE SET TO 4 AND ABOVE. IT WILL NOT RUN IF SET AT 1, 2 OR 3. Setting Pause Intervals The 34m can be set to pause for a set period after one or more folds. There are several situations where this is handy, such as: 1.
- Page 13 2. SET A PAUSE AFTER A CERTAIN NUMBER OF FOLDS You want to fold a certain number, and then stop so you can remove that number as a set. Remedy: Increase the time between each sheet. a. Press the C button. b.
-
Page 14: Troubleshooting
Fold speed: Max 7000 sheets/h Paper size: B6(182 x 128mm) US 5" x 7" - A3(420x297mm) US11" x 17" Paper weight: 50—200 gsm Bond: 16 to 50# Text: 40 to 135# Paper stack capacity: 500 sheets, 64gsm Bond: 500 sheets 18# bond Dimensions: ... - Page 15 The paper is thick Set the paper feed pressure adjust knob to “Thick paper”. Try using regular copy paper. The paper is either glossy, too If that works, change the thick or too thin. paper to one that works. The paper does not fold The paper fold plate is not Reinstall the paper fold plate at the proper position.
- Page 16 Stack the paper neatly on Set the side guides so that they the paper feed table. push against the paper lightly. The rubber roller is damaged. Get a replacement from the dealer. The paper is outside the Check to see that the paper is not glossy or too thick or thin specifications.
