PNM Wi-Fi Web-Programmable Thermostat User Manual

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

PNM Wi-Fi

Thermostat

User's Manual

Web-Programmable

Installed by: __________________________________________________________________

Date: ________________________________________________________________

Number of Thermostats: __________________________________________________

Notes: ________________________________________________________________________

______________________________________________________________________________________________

PNMMAN1902

Table of Contents

Need help?

Do you have a question about the Wi-Fi Web-Programmable Thermostat and is the answer not in the manual?

Questions and answers

Summary of Contents for PNM Wi-Fi Web-Programmable Thermostat

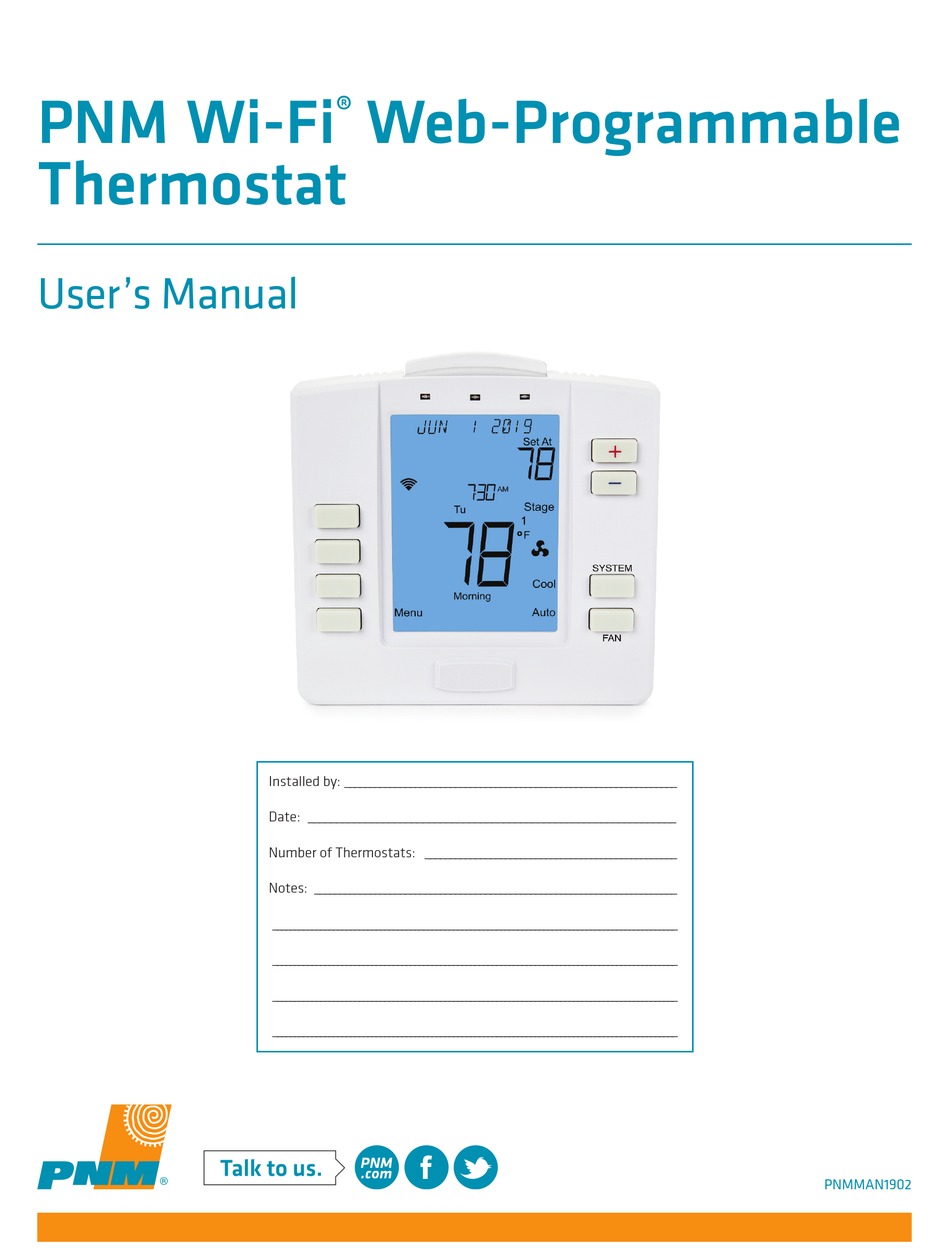

Page 1 ® PNM Wi-Fi Web-Programmable Thermostat User’s Manual Installed by: __________________________________________________________________ Date: ________________________________________________________________ Number of Thermostats: __________________________________________________ Notes: ________________________________________________________________________ ______________________________________________________________________________________________ ______________________________________________________________________________________________ ______________________________________________________________________________________________ ______________________________________________________________________________________________ PNMMAN1902...
Page 2: Table Of Contents
Step 6: PNM Power Saver Activation Periods ............................26-27 A. Activation (Disabled) Phase Displays ............................26 B. Cooling (Enabled ) Phase Displays ..............................26 Troubleshooting ......................................27-29 Your PNM Power Saver thermostat controls your central air conditioning and heating system. The types of compatible systems include: Central Air Conditioners: Furnaces: Aux Heat: •...

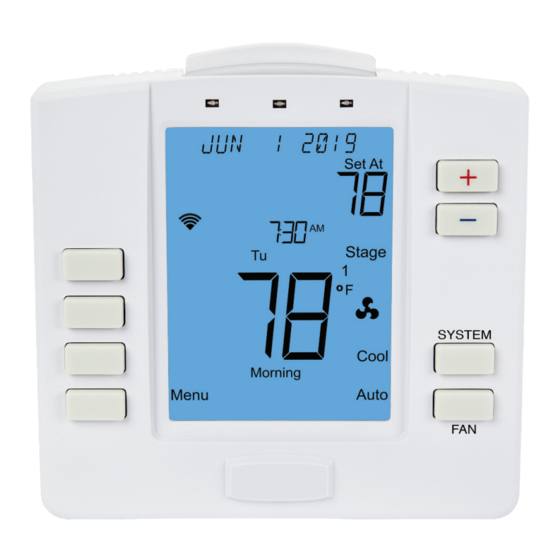

Page 3: Step 1: Getting Familiar With Your Thermostat
Facilitates various operations in different menus Temperature Setpoint Buttons Changes temperature up or down LEDs Indicates status of activation periods. If illuminated green, the system is in an activation period. Module Slot Houses the communications radio module PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 4: Thermostat Display
*Should a Wi-Fi communications error (COMM ERROR, XMPP ERROR, SSL ERROR) display in the thermostat messaging area, please call PNM Power Saver at 1-866-471-7906 immediately. This message indicates a communication problem between your thermostat, PNM Power Saver and the PNM Power Saver Self-Service app.
Page 5 Auto • Time Of Day Program Interval Displays current programming interval setting User Buttons Display Actions to be performed when corresponding user button is pressed (Programming Buttons) Link Status Indicates status of Wi-Fi link PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 6: Step 2: Programming
B. Thermostat Stages The Wi-Fi web-programmable thermostat displays up to four stages of heat or cooling. If you have a heat pump, there could be as many as four stages of heat. The ﬁrst stage is the compressor operating and Stage 1 will appear on the thermostat screen.
Page 7: Using Your Thermostat Control App
C. Using Your Thermostat Control App Download the PNM Self-Service app to your smartphone or tablet for access to thermostat controls anytime, anywhere. The Thermostat Control allows you to adjust your thermostat’s temperature, set Away and Vacation holds, and turn your system on and off.
Page 8: Set A Vacation Or Away Hold
2. Click Away to set a temperature hold for an undetermined period of time. The temperature will hold until you explicitly remove it. This is similar to the Permanent Hold as described on page 22. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 9: Programming Your Thermostat Manually
D. Programming Your Thermostat Manually Although the process below explains how to program your thermostat manually when you are home, using the PNM Self- Service app from your mobile device is much easier and quicker. See page 7 for more information.
Page 10 When ﬁnished press the Next button. 7. The setpoint temperature will ﬂash. Use the buttons to increase or decrease the temperature to the desired Day temperature setting. When ﬁnished press the Next button. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 11 Night temperature setting. When ﬁnished press the Next button to continue to the next day and repeat the process for the remaining day. 12. When ﬁnished press the Done button. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 12: Step 3: Menus
Sometimes it might be necessary to move the wireless Internet accessible thermostat to a different wireless Internet access network, change your network name or change your network password. To do this, you will need to disconnect your PNM Power Saver thermostat from your wireless Internet network as follows: 1. On the Main Menu screen, 2.
Page 13 2: Connect to a Wireless Internet Network In the conﬁguration mode, the PNM Power Saver thermostat acts like a wireless Internet access point. This allows the user to use any wireless Internet-enabled device to connect to the thermostat and conﬁgure it to use their Wi-Fi settings with a standard Web browser.
Page 14 12. Enter the Install Code for your thermostat. This is the thermostat's serial number as it is at the top of the screen. 13. Once all ﬁelds are ﬁlled in correctly, click on the Save button. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 15 Internet accessible router. If there was an error detected in one of the settings you will be prompted to return to the settings page and correct the error. If you continue to have connectivity problems, please call the PNM Power Saver customer service center at 1-866-471-7906. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 16: Filter Timer Settings Menu
To disable the ﬁlter timer: 1. Press the Menu button. The 2. Press the Other button to Programming menu screen advance the menu screen to title will appear in the the Wi-Fi SETTINGS menu. messaging area. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 17: Reset Filter Timer
CHECK FILTER message will no longer be displayed in the message display area. NOTE: If the FILTER TIMER in the user settings menu is set to OFF, this ﬁlter timer reset is not being used. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 18: Lcd Backlight Settings Menu
This menu allows you to choose when the nightlight illuminates. 1. Press the Menu button. The 2. Press the Other button to menu screen title will appear advance the menu screen to in the messaging area. the Wi-Fi SETTINGS menu. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 19: Keypress Beep Confirmation Menu
This menu allows you to enable or disable an audio beep conﬁrmation of every key press. 1. Press the Menu button. The 2. Press the Other button to menu screen title will appear in advance the menu screen to the messaging area. the Wi-Fi SETTINGS menu. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 20: Time-Of-Day (Tod) Recovery
RECOVERY screen. ON Attempt to reach the TOD setpoint at the start of the TOD period. OFF Switch to the new TOD setpoint at the start of the period. 5. Press Done. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 21: Step 4: How To Set A Temperature Hold
1. Press the button to adjust the setpoint to the desired temperature. 2. The word TIMED will display for 5 seconds after you set the hold temperature. Press the button next to it. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 22: Permanent Hold
TIMED display within 5 seconds will cause a default to temporary hold. When setting a permanent hold, failure to press the button next to the PERM display will also cause a default to temporary hold. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 23: Step 5: Using The Keypad Lock
Step 5: Using the Keypad Lock The PNM Power Saver thermostat enables you to limit user access through its keypad lockout feature. This security prevents unwanted changes to the thermostat settings and programming. You may select your level of security from two types of lockouts: A.
Page 24: Full (Full) Lockout
There is no way to unlock the keypad lock if you forget your code, so choose a number that has meaning and notate it below in the space provided. Code Date PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 25: Unlocking The Keypad
The thermostat will display the temporary message return to the main operating UNLOCK FAILED, continue to screen and the lock icon will no display the lock icon and longer be displayed. remain in the locked mode. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
Page 26: Step 6: Pnm Power Saver Activation Periods
The message and indicator will change during the period coincident with your cycling level. A message will also be available in the PNM Power Saver Self-Service app telling you an activation period is underway and how long it will last.
Page 27: Troubleshooting
Troubleshooting Power Loss The PNM Power Saver Wi-Fi thermostat is designed to withstand a power loss without the need of a battery backup. The thermostat responds to a power loss as follows: • All Thermostat Settings and Schedule Programming are stored to permanent memory and retained throughout the power loss.
Page 28 This sound usually indicates the thermostat is operating properly. If the thermostat does not click after being reset, contact PNM Power Saver Customer Service (1-866-471-7906) for a replacement thermostat. If the thermostat does click, contact the furnace manufacturer or your HVAC contractor for a service visit to verify the heating is operating correctly.
Page 29 Corrective Action Your thermostat is no longer connected to a Wi-Fi network. Follow steps on page 13 to connect to a wireless Internet network. If you cannot connect to a Wi-Fi network, call 1-866-471-7906. PNM Wi-Fi Web-Programmable Thermostat User’s Manual...
