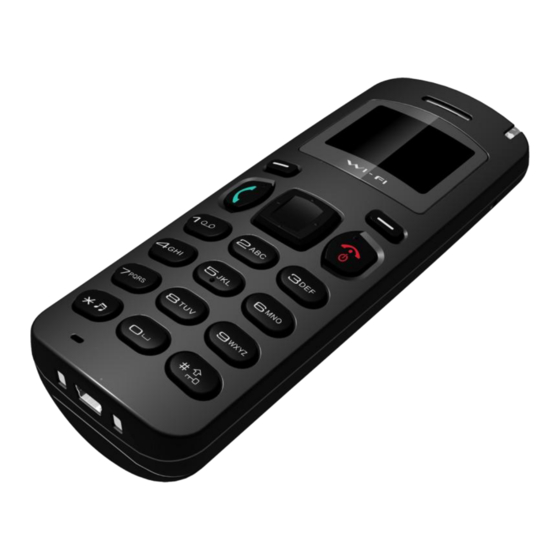

- Page 1 MIP-300 Quick Guide V 1.17 MIP-300 Wi-Fi phone...
-
Page 2: Charging Cradle
This MIP-300 enables user to make VoIP phone calls through IEEE 802.11 b/g/n wireless network. Read this user manual carefully to learn how to operate this product and take advantage of its features. When unpacking MIP-300, ensure all the following items are present and undamaged. If anything appears to be missing or broken, contact dealer for a replacement. - Page 3 Appearance This describes the phone features of MIP-300. Item Description Receiver Receive voice from calling party MWI LED Message waiting indictor LCD Display 112 x 64 pixel monochrome graphics display with backlight Navigation Keys Navigates through menu /Press lift nav. Key to delete one character...
-
Page 4: Inserting The Battery
Inserting the Battery To insert the battery into MIP-300, perform the following steps: Slide off the battery compartment cover. Insert the battery as shown. Place the battery compartment cover until it clicks into place. Fit the belt clip lock into the gap on one side of the phone. - Page 5 Insert the USB plug of the AC power adapter to the cradle then insert the cable wire to the rib to fix the cable properly. Plug the AC power adapter into the mains socket then place MIP-300 on the cradle for charging. NOTE: The phone will turn on automatically when charging begins.
- Page 6 The illustration below shows an overview of the layout of the display screens. The display screen elements: Indicator Description Displays the Wi-Fi signal strength. The presence of four bars indicates the Wi-Fi signal strongest signal. Battery level There are three battery levels. Charging is indicated by a moving charging bar. Displays the extinction number in standby mode.
-
Page 7: Received Calls
Received Calls The Received Calls list consists of all answered calls. Missed Calls The Missed Calls list consists of not answered calls. Dialed Calls The Dialed Calls list consists of recent dialed calls. Use the navigation pad then press the Select soft key. Options are displayed on the menu: ... - Page 8 Set the speed dial number to access voice mail system. Provision Server IP: Input the provision Server IP. File ID: Input the ID to provision. Press OK soft key to save. FW Version Check firmware version. FW Upgrade Upgrade MIP-300 to latest firmware. Reboot Reboot MIP-300.
-
Page 9: Factory Reset
Group ID: Set the Group ID. An unused network port number between 1024 ~ 65535. Group members must set the same Group ID. Password Set the password for entering the setup menu. Once display backlight turn off, MIP-300 would require password again to enter setup menu. Default password: 1234 Wi-Fi Scan the local area for Wi-Fi reception. - Page 10 IP for SIP server (FQDN or IP). Register IP SIP Server listen port. Register Port Example: <sip:1271@voip.com> Switch ： Enable Display Name：1271 Username：1271 Auth Name：1271 Password：1234 Register Domain：voip.com Register IP：192.168.168.253 Register Port：5060 Sip Global SIP Local Port SIP local listen/sending port. ...
- Page 11 An incoming call is indicated by a ringing tone. Answer the call by pressing the Call key to answer the call. Enter the telephone number with the alphanumerical keypad. After entering the number, press the Call key to dial. When a call is in progress, press Mute soft key to mute MIC. Press Unmute soft key to activate MIC. When a call is in progress ...
