SCION
xD
Preparation
Part Number:
Conflicts
Do not install into vehicles without RKE, or with
Factory Alarm System.
Recommended Sequence of Application
Item #
Accessory
1
Navigation
2
V4
3
V5

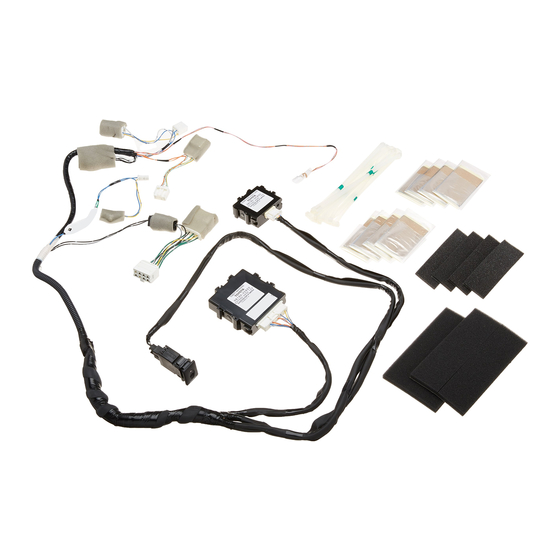

Kit Contents
Item #
Quantity
Description
1
1
Wire Harness
Hardware Bag Contents
Item #
Quantity
Description
1
1
GBS ECU
2
1
V5 ECU
3
1
Status Monitor w/Microphone
4
4
Foam Tape
5
35
Wire Ties
6
2
Window Warning Label
7
1
Owner's Manual
8
1
Warranty Card
9
8
Butyl
10
2
Large Foam Tape (1= 2 pieces)
Additional Items Required For Installation
Item #
Quantity
Description
Care must be taken when installing this accessory to ensure damage does not occur to the vehicle. The installation of this
accessory should follow approved guidelines to ensure a quality installation
These guidelines can be found in the "Accessory Installation Practices" document.
This document covers such items as:
•
Vehicle Protection (use of covers and blankets, cleaning chemicals, etc.)
•
Safety (eye protection, rechecking torque procedure, etc.)
•
Vehicle Disassembly/Reassembly (panel removal, part storage, etc.)
•
Electrical Component Disassembly/Reassembly (battery disconnection, connector removal, etc.)
Please see your Scion dealer for a copy of this document
Issue: A
10/18/11
PT398-52122
2012 -
Recommended Tools
Personal & Vehicle
Protection
Safety Glasses
Safety Gloves
Vehicle Protection
Special Tools
Striker Tool
Installation Tools
Phillips Screwdriver
Flat Blade Screwdriver
Nylon Panel Removal
Tool
Side Cutters
Torque Wrench
Utility Knife
Tape
Socket
Special Chemicals
Cleaner
Glass Cleaner
Legend
STOP: Damage to the vehicle may occur. Do not
proceed until process has been complied with.
OPERATOR SAFETY: Use caution to avoid risk of
injury.
CAUTION: A process that must be carefully observed
in order to reduce the risk of damage to the
accessory/vehicle and to ensure a quality installation.
TOOLS & EQUIPMENT: Used in Figures calls out the
specific tools and equipment recommended for this
process.
REVISION MARK: This mark highlights a change in
installation with respect to previous issue.
SAFETY TORQUE: This mark indicates that torque is
related to safety.
Page 1 of 23 pages
TVIP V5
SCION SECURITY
Notes
(Optional)
Blankets, Parts Boxes
Notes
CAD-E IADS ALL 02-016-01
Notes
#2 screwdriver or tip
Jeweler's screwdriver
e.g. Panel Pry Tool #1
Toyota
SST # 00002-06001-01
36 in•lbf (4.07 N•m)
Clear
10mm, Extension
Notes
VDC Approved Cleaner
Household Glass Cleaner
Advertisement
Summary of Contents for Scion PT398-52122
- Page 1 Safety (eye protection, rechecking torque procedure, etc.) • Vehicle Disassembly/Reassembly (panel removal, part storage, etc.) • Electrical Component Disassembly/Reassembly (battery disconnection, connector removal, etc.) Please see your Scion dealer for a copy of this document Issue: A 10/18/11 Page 1 of 23 pages...
- Page 3 SCION 2012 - TVIP V5 Procedure SCION SECURITY 10mm Socket A. Vehicle Disassembly Vehicles with Automatic Transmission should be placed in Park and have the Parking brake set before disconnecting the Battery. Remove the Negative battery cable. (a) Note the battery cable position,...
- Page 4 SCION 2012 - TVIP V5 Procedure SCION SECURITY Disconnect the Dampener from the glove box. Remove the Glove box. Fig. A-3 Nylon Panel Removal Tool Remove the passenger side Under cover. Fig. A-4 Automatic Transmission vehicle Unscrew the Stick shift knob, and remove the Upper center console panel.
- Page 5 SCION 2012 - TVIP V5 Procedure SCION SECURITY 10mm Socket Remove 3 bolts. Remove the Floor console. Fig. A-6 10mm Socket 10. Remove 2 bolts and remove the Lower center console panel. Fig. A-7 Nylon Panel Removal Tool 11. Remove the Storage box in Driver’s side.
- Page 6 SCION 2012 - TVIP V5 Procedure SCION SECURITY Screw driver 12. Open and release clips. 13. Remove 2 Screws. Fig. A-9 14. Remove the Lower dash cover. Fig. A-10 10mm Socket 15. Remove 2 bolts and the metal brace. Fig. A-11...
- Page 7 SCION 2012 - TVIP V5 Procedure SCION SECURITY Screw driver 16. Remove 2 Screws and the driver side Under cover. Fig. A-12 Screw driver 17. Insert the key into ignition switch and turn it to On. 18. Gain access to the 2 screws securing the steering column cover, and Remove them.
- Page 8 SCION 2012 - TVIP V5 Procedure SCION SECURITY B. Wire Harness Installation (Driver’s Side) Route the V5 Harness through Center console. (a) Harness with ECU connectors:route to passenger side. (b) Harness with Status Monitor: route down towards floor console. Connector Status Monitor Fig.B-1...
- Page 9 SCION 2012 - TVIP V5 Procedure SCION SECURITY Unplug the vehicle 2 Pin connector as shown. Fig. B-4 Proceed with “Wire to Wire”. Insert V5 2 Pin Connectors in between vehicle 2 Pin connectors as shown. Fig. B-5 Side Cutter...
- Page 10 SCION 2012 - TVIP V5 Procedure SCION SECURITY Unplug the vehicle 8 Pin connector. Proceed with “Wire to Wire”. Insert V5 8 Pin Connectors in between vehicle connectors. Fig.B-7 Side Cutter Secure the joint 8 Pin connectors onto the vehicle harness with 1 Wire Tie.
- Page 11 SCION 2012 - TVIP V5 Procedure SCION SECURITY Side Cutter 12. Insert V5 2 Pin Connector into V4 2Pin Connector. 13. Secure 4 Pin Connectors to the Vehicle harness with 1 Wire Tie. 1 Wire Tie Fig. B -10 V5 only...
- Page 12 SCION 2012 - TVIP V5 Procedure SCION SECURITY 16. Unplug the vehicle 14 Pin connector on the Junction box. 17. Proceed with “Wire to Wire”. Insert V5 14 Pin Connectors in between vehicle 14 Pin connectors. Fig.B-13 Side Cutter 18. Secure the 6 Pin and 14 Pin Connectors with 2 Wire Ties.
- Page 13 SCION 2012 - TVIP V5 Procedure SCION SECURITY 21. Unplug the vehicle 6 Pin connector from V4 6 Pin Connector. 22. Proceed with “Wire to Wire” by inserting V5 6 Pin Connectors in between V4 6 Pin Connector and vehicle 6 Pin connector.
- Page 14 SCION 2012 - TVIP V5 Procedure SCION SECURITY Side Cutter 27. Route the V4 Harness through the Junction box clip. 28. Secure the V4 Harness to vehicle harness with 2 Wire Ties. Wire Ties(x2) Fig.B-19 Flat Blade Jeweler’s Screwdriver 29. Unplug the 26 Pin Connector on the back of Junction box.
- Page 15 SCION 2012 - TVIP V5 Procedure SCION SECURITY Fold 1 Butyl Tape as shown and Butyl Tape apply it to the GBS ECU. Apply 1 Butyl Tape to the ECU as shown. GBS ECU Fig.C-2 Side Cutter D. Wire Harness Installation (Passenger’s side)
- Page 16 SCION 2012 - TVIP V5 Procedure SCION SECURITY Side Cutter Maneuver and place V5 Security ECU behind the vehicle metal brace as shown and secure it lightly with the Butyl Tape. Secure the V5 Security ECU to the Reinforcement using 4 Wire Ties (2 sets of 2) placed in an X pattern.
- Page 17 SCION 2012 - TVIP V5 Procedure SCION SECURITY Side Cutter Secure the V5 GBS ECU to the Wire Ties (x4) reinforcement brace lightly as shown Wire Ties (x2) with the Butyl Tape on the GBS ECU. 10. Secure the V5 GBS ECU to the Reinforcement using 4 Wire Ties (2 sets of 2) placed in an X pattern.
- Page 18 SCION 2012 - TVIP V5 Procedure SCION SECURITY Side Cutter E. Status Monitor Installation Route the V5 Harness down to center console area as shown. Secure V5 Harness onto vehicle harness with 4 Wire Ties. Fig.E-1 Remove the knockout cover.
- Page 19 SCION 2012 - TVIP V5 Procedure SCION SECURITY Clear Tape F. Attaching the Labels Etching Use Household Glass Cleaner to clean the inside of the Front Door Windows. Use a piece of Clear Tape to lift the Etching Label from the protective backing.
- Page 20 SCION 2012– TVIP V5 CHECKLIST – these points MUST be checked to ensure a quality installation. SCION SECURITY Accessory Function Checks Perform Look For Press and release the remote control’s lock The turn signal lights flash once. button to start the system’s arming process.
- Page 21 SCION 2012– TVIP V5 CHECKLIST – these points MUST be checked to ensure a quality installation. SCION SECURITY Reach inside and manually unlock the front The front passenger’s door automatically relocks. passenger’s door to trigger an alarm. The horn sounds repeatedly.
- Page 22 SCION 2012– TVIP V5 CHECKLIST – these points MUST be checked to ensure a quality installation. SCION SECURITY Vehicle Function Checks Function Function Enter the Vehicle □ □ Steering Wheel Column Adjusts Dome/Courtesy Lights Without Interference □ □ Horn Hood Latch Release Start the Vehicle □...
- Page 23 SCION 2012– TVIP V5 CHECKLIST – these points MUST be checked to ensure a quality installation. SCION SECURITY Function Function □ □ Front Wiper/Washer Rear Wiper/Washer (if equipped) □ □ Power Sun/Moon Roof (if equipped) Rollover Side Curtain Air Bag Switch (RSCA) (if equipped) □...
