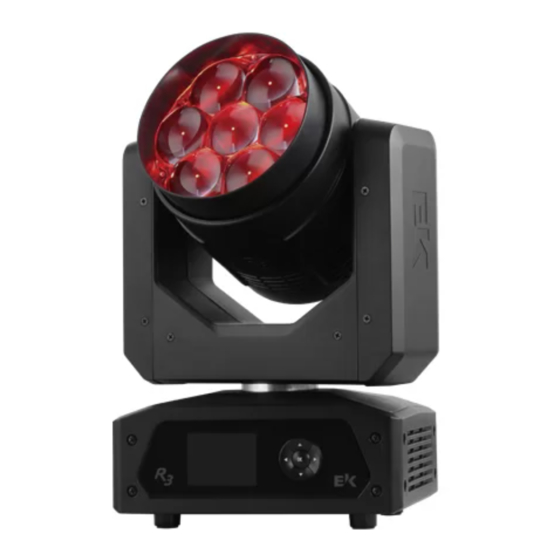

EK R3 User Manual

Rgbw beam, wash with 4-34 linear zoom
Hide thumbs
Table of Contents

Advertisement

Quick Links

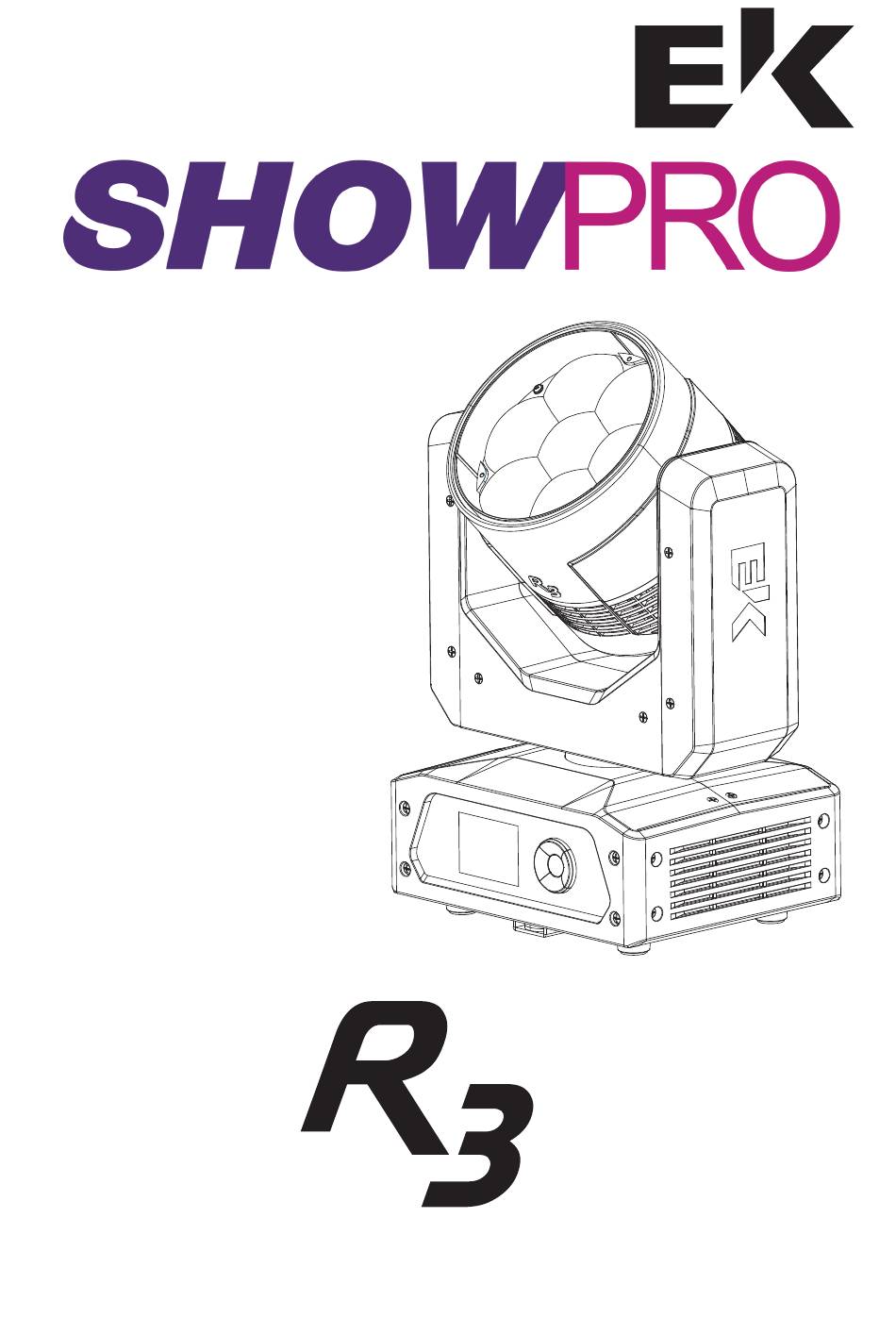

USER MANUAL
RGBW Beam • Wash
with 4°-34° linear zoom

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EK R3

Summary of Contents for EK R3

  • Page 1 USER MANUAL RGBW Beam • Wash with 4°-34° linear zoom...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION Features Speci cations Package contents Physical dimensions External overview FUNCTIONS and OPERATION Power On/O Menu navigation Menu function chart PHOTOMETRICS Master/Slave linking DMX starting address DMX channel mode Example of DMX addressing DMX CHARTS MENU FUNCTIONS DMX cable pin-out and termination illustration Installation and mounting illustration...

  • Page 3: Features

    FEATURES • 4°-34° linear zoom • Compact, lightweight, fast • Two pan/tilt speed modes (normal & turbo) • Onboard user preset library (save/load) • Built-in color and strobe macros • RGB Gamma adjustment • White color temp presets from 2500〜8000K •...

  • Page 4: Package Contents

    • R3 Package content s • Power cable • Mounting bracket • User manual • Warranty card DIMENSIONS...
  • Page 5 OVERVIEW Omega bracket mounting plate Menu Display Menu navigation buttons Fuse Power In/Out DMX In/Out...

  • Page 6: Functions And Operation

    FUNCTIONS and OPERATION POWER ON/OFF The xture is powered on by connecting the included power cable to mains power (100 - 240 VAC, 50/60 Hz). Upon receiving power, the xture will cycle through a motor reset program. To power o , disconnect the power cable or turn o power remotely using a switch.

  • Page 7: Menu Function Chart

    MENU FUNCTION CHART Main Menu Submenu Submenu Submenu Defaults DMX Address 1-512 Default: 1 16CH SETUP DMX Channel Default:Basic 20CH 20CH Invert Pan Default: Off Invert Tilt Default: Off Swap Pan Tilt Default: Off Encoder Pan Tilt Default: On Standard P/T Homing Mode Default: Standard Sequenced...
  • Page 8 MENU FUNCTION CHART Main Menu Submenu Submenu Submenu Defaults 600Hz 1200Hz Special Functions 2000Hz PWM Frequency Default:2000Hz 4000Hz 6000Hz 25000Hz OPTION Reset To Default Are you sure ? Default Preset Yes / No Go Back Load preset 1 Are you sure ? User Preset 1 Yes / No Save to preset 1...
  • Page 9 MENU FUNCTION CHART Main Menu Submenu Submenu Submenu Defaults Reset MANUAL CONTROL Channel Pan/Tilt Colour TEST Zoom Pan Offset 000-255 Tilt Offset 000-255 Zoom Offset 000-255 ADVANCED Calibration 125-255 Green 125-255 Blue 125-255 White 125-255 Unlock Code Menu Locking Default: 1234 XXXX...

  • Page 10: Photometrics

    PHOTOMETRICS Beam Angle: 4° (4° RGBW Beam) Luminance (lux) Projection distance (m) 97200 10800 3888 1983 170100 18900 6804 3471 1701 34290 3810 1371 187200 20800 7488 3820 1872 453600 50400 18144 9257 4536 PHOTOMETRICS Beam Angle: 3 4° (34° RGBW Wash) Luminance (lux) Projection distance (m) 2169...

  • Page 11: Master/Slave Linking

    MASTER / SLAVE LINKING In a connected series of the same xture, when not using an external controller, a master unit can be assigned to control slave units in the series. • Set the rst xture in the series to MASTER in the onboard menu •...

  • Page 12: Dmx Charts

    DMX CHARTS 16CH 20CH 000-255 Red Fine 000-255 Green 000-255 Green Fine 000-255 Blue 000-255 Blue Fine 000-255 White 000-255 White Fine 000-255 000-009 010-053 8000K~7000K 054-098 7000K~6000K 099-116 6000K~5600K 117-143 5600K~5000K 144-187 5000K~4000K 188-223 4000K~3200K 224-254 3200K~2500K 2500K 000-009 Macro Color OFF Green Blue...
  • Page 13 DMX CHARTS 110-111 Spring Yellow Light Amber Stra Deep amber 115-116 Orange Light Rose English Rose Light Salmon Middle Rose 121-122 Dark Pink 123-124 Magenta Peacock Blue Med Blu Green Steel Blue Light Blue 129-130 Dark Blue 131-133 Leaf Green 134-135 Dark Green Macro color...
  • Page 14 DMX CHARTS 000-003 Closed 004-103 Slow to Fast Strobe(1-25Hz) 104-107 Open 108-207 Slow to Fast Pulsation Strobe 208-212 Open 213-225 Random Slow Strobe 226-238 Random Medium Strobe 239-251 Random Fast Strobe 252-255 Open Dimmer 000-255 Dimmer Fine 000-255 000-255 Pan Fine 000-255 Tilt 000-255...
  • Page 15 SET UP MENU DMX ADDRESS : Set starting address value DMX CHANNEL : Select 16- or 20-channel mode OPTION MENU PAN / TILT : Set values for: • Invert Pan • Invert Tilt • Swap Pan-Tilt • Encoder Pan-Tilt • Pan/Tilt Homing Mode •...
  • Page 16 TEST MENU Run live tests of these functions: • Pan / Tilt • Color • Zoom • All ADVANCED MENU Enter access code (default: 1234) to calibrate physical offsets of the pan, tilt, zoom, and to adjust individual red, green, blue and white LED output to achieve proper white balance.
  • Page 17 DMX CABLE PIN-OUTS and TERMINATION Depending on the length of the DMX cable run, or other factors, it may be advisable to install a terminator at the last xture in the run. The illustration below shows the correct placement of a 120 0.25W resistor in a terminator, as well as the standard DMX signal pin-outs.
  • Page 18 WARNING! Before carrying out any operations with the unit, carefully read this instruction manual and keep it with cure for future reference. It contains important information about the installation, usage and maintenance of the unit. SAFETY General instruction • The products referred to in this manual conform to the European Community Directives and are there- fore marked with .
  • Page 19 - 1.2 - MAINTENANCE MAINTENANCE AND CLEANING THE UNIT • Make sure the area below the installation place is free from unwanted persons during setup. • All screws used for installing the device and any of its parts should be tightly fastened and should not be corroded.
