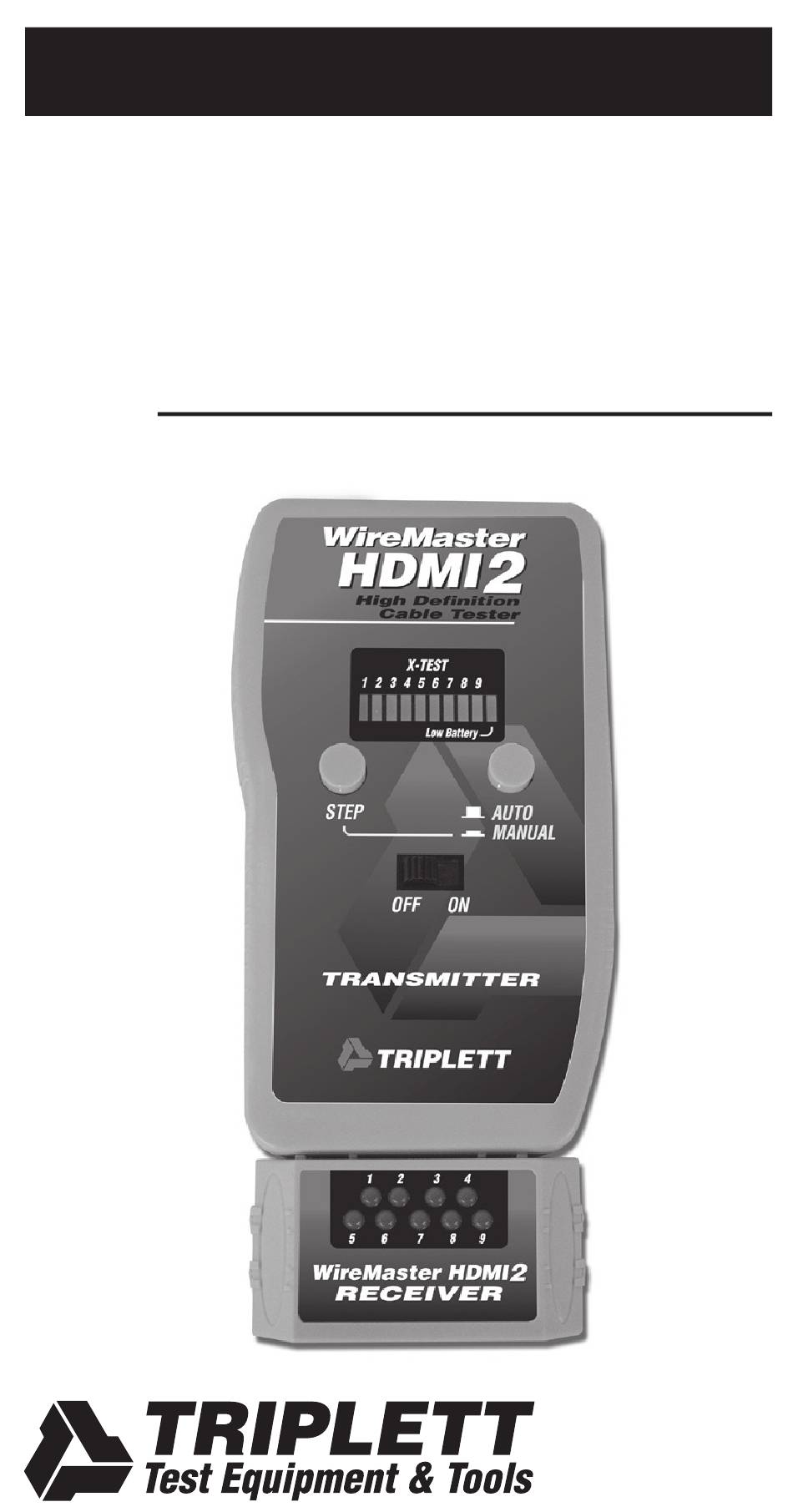

- Page 1 TRIPLETT WireMaster HDMI High Definition Cable Tester Instruction Manual 84-893 10 / 2010...
- Page 2 • Padded, Cordura Carrying Case included • One Year Warranty INTRODUCTION The Triplett WireMaster HDMI 2 High Definition Cable Tester is an advanced tester utilizing X-TEST technology. It outperforms similar products, identifying faults that other testers miss. Special circ- uitry tests cables for new conductors in v1.4 cables typically used to support Ethernet, 3D, Audio Return Channel, and 4K.
- Page 3 them around corners, bending them too sharply, or just rough handling. To meet the requirements of the High Definition Multi- media Interface, some of the wires inside of the cable are very small and easy to damage. Care must be taken during installation to guarantee maximum performance of the cables.
- Page 4 Installing Battery Remove the Receiver from the bottom of the Transmitter by slid- ing it downwards (towards the back of the Transmitter). With Re- ceiver removed, remove the Transmitter battery cover by sliding it open. Install a 9 volt alkaline battery taking care to position the lead wires so the battery fits properly in the cavity.
- Page 5 Manual Testing Manual Testing can be helpful in finding an intermittent cable. Set the AUTO/MANUAL button to MANUAL. Set the ON/OFF slide switch to ON while observing the X-Test display. If the Low Battery indicator is lit, replace the battery before continuing. When in the MANUAL mode, the Transmitter will not automatically scan the cable.
- Page 6 Triplett for repair information. TRIPLETT PRODUCT RETURN INSTRUCTIONS In the unlikely event that you must return your Triplett equipment for repair, the following steps must be taken. 1) Call 1-800-TRIPLETT to obtain a Return Material Authorization (RMA) number from Customer Service.
- Page 7 Some states (USA ONLY) do not allow the exclusion or limitations of incidental or consequential damages, so the above limitation or exclusion may not apply to you. No representative of Triplett Instruments or any other person is authorized to extend the liability of Triplett in connections with the sale of its products beyond the terms hereof.
- Page 8 TRIPLETT Test Equipment & Tools 850 Perimeter Road, Manchester, NH 03103 PHONE: 800-TRIPLETT FAX: 603-622-2960 www.triplett.com...
