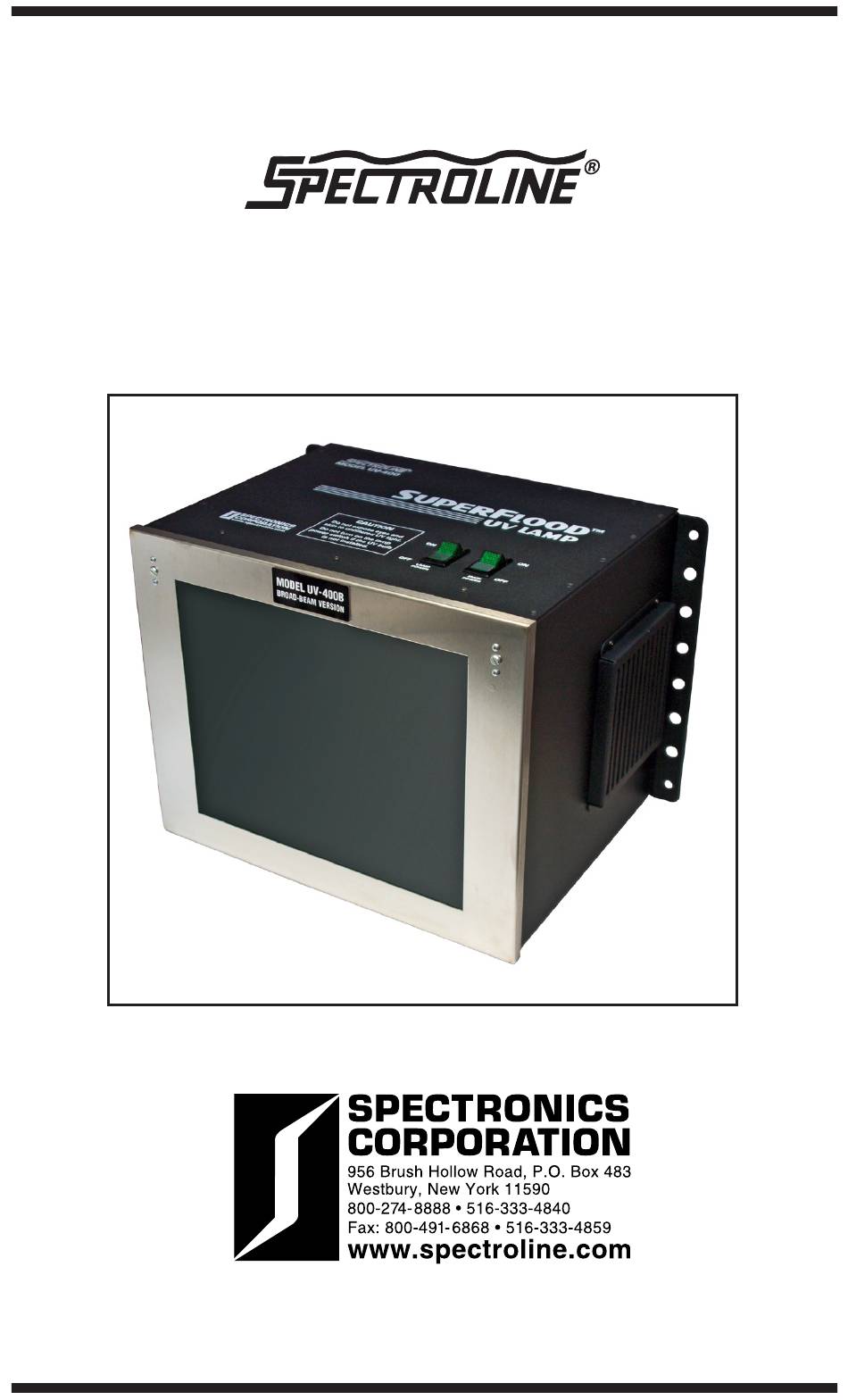

- Page 1 OPERATOR’S MANUAL SuperFlood™ UV-400 Series UV Lamps AM07008-9 Printed in U.S.A. August 2012...
- Page 2 DANGER Ultraviolet radiation emitted from this product. Avoid exposure. ALWAYS WEAR PROTECTIVE CLOTHING. UV EXPOSURE MAY CAUSE PREMATURE AGING OF THE SKIN AND CANCER. ALWAYS WEAR PROTECTIVE EYEWEAR; FAILURE TO DO SO MAY RESULT IN SEVERE BURNS OR LONG-TERM INJURY TO EYES.
- Page 3 1. Install the BLE-400 400-watt metal halide bulb (packed separately) accord ing to the instructions outlined in the ‘‘BULB REPLACEMENT’’ section of this manual. 2. Prior to plugging the unit into a grounded receptacle, ensure that both power switches on the front panel are in the ‘‘OFF’’ position. 3.
- Page 4 Chains UV Beam Area Diagram 1 To achieve a 45° angle, follow the instructions below: 1. Place eyelet bolts into the 5 / 16 " diameter holes on the mounting plate closest to the back of the unit (see Diagram 2 below). 2.
- Page 5 IF THE LAMP FAILS TO OPERATE 1. Make sure that the unit is plugged into a grounded outlet with the appro priate voltage. 2. Check to see that both the LAMP and the MAIN switches are pushed to the ON position. 3.
- Page 6 6. Replace the filter(s) as needed. The black filter should be placed farther away from the bulb. The transparent filter should be placed closer to the bulb. 7. Apply new silicone before closing and reinstalling the unit to its original position.
- Page 7 Spectroline DM-365XA digital readout unit can also be used for accurate UV-A measurement. For more information about these units, please contact the Customer Service Department at Spectronics Corporation. In the U.S. and Canada, call toll-free 1-800-274-8888. ELECTRICAL AND TECHNICAL SPECIFICATIONS...
- Page 8 Out-of-warranty service work will not be performed without customer approval. Use only replacement parts supplied by Spectronics Corporation. Use of any other parts may damage the unit and void the warranty. SHIPPING Carefully pack the unit in its original shipping container and packing materials and ship it prepaid to the factory.
