DR5088RC DIGIDETECT
30.05.2019
DR5088RC
Firmware from
V1.4.0
(2019-01-13)
www.digikeijs.com
P 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DR5088RC DIGIDETECT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Digikeijs DR5088RC DIGIDETECT

  • Page 1 DR5088RC DIGIDETECT 30.05.2019 DR5088RC Firmware from V1.4.0 (2019-01-13) www.digikeijs.com...

  • Page 2: General Information

    DR5088RC DIGIDETECT 30.05.2019 1.0 GENERAL INFORMATION www.digikeijs.com...
  • Page 3 DR5088RC DIGIDETECT 30.05.2019 1.1 Index General information Connection to control software Index iTrain® Warranty provisions Train controller® Legal notification Rocrail® EStWGJ® Product overview 7.5.1 Windigipet® 2015 General information 7.5.2 Windigipet® 2018 Technical specifications Hardware overview LNCV values Configuration Software Introduction and minimum system requirements...

  • Page 4: Warranty Provisions

    DR5088RC DIGIDETECT 30.05.2019 1.2 Warranty provisions All our products are covered by a 24-month manufacturer’s warranty. Please read this manual carefully. The warranty will be void in the event of damage to the product caused by incorrect adherence to this manual.

  • Page 5: Product Overview

    DR5088RC DIGIDETECT 30.05.2019 2.0 PRODUCT OVERVIEW www.digikeijs.com...

  • Page 6: General Product Information

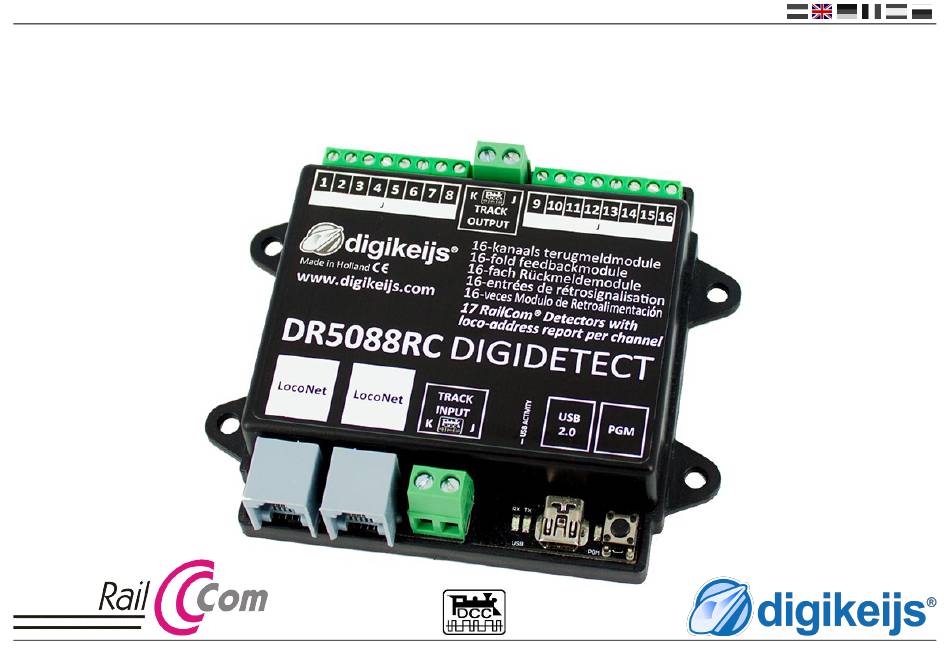

    DR5088RC DIGIDETECT 30.05.2019 2.1 General product information The DR5088RC is a Railcom® detector including driving direction detection equipped with LocoNet®. The DR5088RC is equipped with 16 detection connections and an additional global detector. All Railcom® information proceeds through the LocoNet® connec- tions.

  • Page 7: Hardware Overview

    DR5088RC DIGIDETECT 30.05.2019 2.3 Hardware overview 1 Railcom® Detector 1 - 8 2 Railcom® Global Detector 3 Railcom® Detector 9 - 16 4 Module address programming button 5 Module LED indicator Standard blinker: Heart rate module Short blinker/long on: Module address reception 6 USB 2.0 connection...
  • Page 8 DR5088RC DIGIDETECT 30.05.2019 2.3 LNCV values LNCV Description Range Default LNCV Description Range Default Module address 1-9999 1 Firmware version LocoNet report or direction Configuration (see below) Power-on delay (ms) 0-8000 1000 Occupancy Detection count 5-31 Polarity detection count Polarity detection delay (ms)

  • Page 9: Configuration Software

    DR5088RC DIGIDETECT 30.05.2019 3.0 CONFIGURATION SOFTWARE www.digikeijs.com...

  • Page 10: Software Download

    • 100 MB free space on the hard disc • A monitor with a resolution of 1.024 x 768 (1280 x 800 recommended) 3.2 Software download Do not connect the DR5088RC before installing the software. The software can be downloaded from the DIGIKEIJS website. www.digikeijs.com/dr5088rc www.digikeijs.com P 10...

  • Page 11: Software Installation

    DR5088RC DIGIDETECT 30.05.2019 3.3 Software installation After you successfully downloaded the software, it is important to unpack the downloaded file first and store it on your hard drive. Next, start the installation by double clicking “setup” or “setup.exe”. Ensure that you always have administrator on your PC.
  • Page 12 DR5088RC DIGIDETECT 30.05.2019 After a few seconds, the following screen appears. Click “Next” If you would like to change the location where the software is installed, you can do so in the following screen. If this is not necessary, it is best to leave the settings as they are and click “Next”...
  • Page 13 A brief overview of the settings. Click “install” if you agree. Now the configuration software will be installed in which Windows will ask you a few more times if you are familiar with the Digikeijs software. If all of this is gone through, the last screen appears.
  • Page 14 DR5088RC DIGIDETECT 30.05.2019 3.4 Connecting DR5088RC On the desk top an icon has appeared that allows you to start the configuration software. Do not do that yet. First connect to the DR508888RC using the supplied USB cable. Windows will “detect” the new hardware and install the drivers.
  • Page 15 DR5088RC DIGIDETECT 30.05.2019 3.5 Configuration Software overview The various options are easy to access by clicking the corresponding connection. 1 Detector 1 - 8 Features 2 Detector Global Features 3 Detector 9 - 16 Features 4 USB Features / Firmware upgrade...

  • Page 16: Restoring Factory Settings

    DR5088RC DIGIDETECT 30.05.2019 3.6 Restoring Factory Settings It is possible to restore the DR5088RC factory settings. Through the USB menu in the configuration software, you can restore the DR5088RC factory settings www.digikeijs.com P 16...
  • Page 17 DR5088RC DIGIDETECT 30.05.2019 3.7 Software en Firmware update The development of the DR5088RC software will, of course, continue. Through firmware updates, you can provide the feedback module with the last software versions. New firmware is built-in into the configuration tool. First you must install the latest version of the configuration software before the firmware update is available.

  • Page 18: Firmware Versions

    DR5088RC DIGIDETECT 30.05.2019 3.8 Firmware versions Version Date Description 1.0.0 01-10-2017 First beta version for beta testers 1.2.1 20-12-2017 First official commercial release. 1.3.0 10.04.2018 Connection examples extended . 1.3.0 19.06.2018 Windigipet 2018 added. 1.3.x 26.07.2018 New Railcom feedback monitor added.

  • Page 19: Configuration Options

    DR5088RC DIGIDETECT 30.05.2019 4.0 Configuration options www.digikeijs.com P 19...
  • Page 20 DR5088RC DIGIDETECT 30.05.2019 4.1 Properties Loconet Slow module timing. Can be activated for problems with Loconet components from other manufacturers. Baudrate tuning. Used to adjust the exact baud rate in Loconet.* Komperator tuning. Here the edge steepness and the edge height can be adjusted.*...
  • Page 21 DR5088RC DIGIDETECT 30.05.2019 4.2 Detector 1 - 16 Features Detector output on module. Address linked to detector output. Block number linked to detector output. Exit delay for releasing the detector. The DR5088RC can read how the locomotive is on the track on a certain block.
  • Page 22 DR5088RC DIGIDETECT 30.05.2019 4.3 Global Detector Features Detector output on module. Address linked to detector output. Block number linked to detector output. Exit delay for releasing the detector. the DR5088RC can read how the locomotive is on the track on a certain block.

  • Page 23: Module Properties

    DR5088RC DIGIDETECT 30.05.2019 4.4.1 Module Properties 10) Number of Railcom bits to be counted before direction recognition Display Logging Window. takes place.* Select language. 11) Waiting time until the direction recognition is measured in a stable Module address in Loconet way.*...
  • Page 24 DR5088RC DIGIDETECT 30.05.2019 4.4.2 Module Properties Digitrax® specification for reporting 'short' locomotive addresses. All QoS messages below this value are not reported to the central Standard: Report 0x7D in high quality byte. unit. Alternative: Report 0x00 in high quality byte.
  • Page 25 DR5088RC DIGIDETECT 30.05.2019 4.5 USB 2.0 Features The selected DR5088RC connected via USB COM-port number for the Dr.Command protocol COM-port number for the LocoNet protocol. Possibility to upgrade the DR5088RC to the latest firmware Resets the DR5088RC to factory default settings www.digikeijs.com...
  • Page 26 DR5088RC DIGIDETECT 30.05.2019 4.6 Railcom® Feedback Monitor Feedback Status Feedback (current sensor) 26 occupied. Display feedback (current sensor) x,y occupied / free. Railcom Feedback (Block). Railcom Feedback (Block). Locomotive address 96 with the derailing direction to the right detect- Display color: The current status is displayed for 3 seconds if a change is made.
  • Page 27 DR5088RC DIGIDETECT 30.05.2019 4.7 Scripting DR. Script DR Script is a BASIC / Assembler similar, text based programming language. With Dr. Script you have the possibility to control even complex processes with the help of a product of the DR50xx series. Further information about Dr. Script can be found in the separate documentation.
  • Page 28 DR5088RC DIGIDETECT 30.05.2019 5.0 Adressing www.digikeijs.com P 28...
  • Page 29 DR5088RC DIGIDETECT 30.05.2019 5.1 Adres principle The DR5088RC Railcom® detector has 16 detection points and 1 global point. So, there are 17 detection points in total. Each detection point can be assigned any address within the total range of 2,048 detection points. There are 2 methods to provide the detection points with an address described on the following pages.
  • Page 30 DR5088RC DIGIDETECT 30.05.2019 Address programme through the button method You can equip the DR5088RC with addresses using the button method. To do so, connect the DR5088RC to your control unit through a LocoNet cable. You must set your control unit to the desired start address by selecting the corresponding DCC change address.
  • Page 31 DR5088RC DIGIDETECT 30.05.2019 5.3 Randomly programming address via USB You can assign addresses to the DR5088RC completely randomly with the Configuration software. In doing so, you connect the DR5088RC to your PC. Make sure that you connect the DR508888RC without connecting the TRACK INPUT! Once the DR5088RC is connected to the PC, in the configuration software you can select the desired output group.

  • Page 32: Connection Examples

    DR5088RC DIGIDETECT 30.05.2019 6.0 Connection examples www.digikeijs.com P 32...
  • Page 33 DR5088RC DIGIDETECT 30.05.2019 6.1 DR5088RC in combinatie met de DR5000 Detection point 1 Detection point 2 Detection point 3 Detection point Detection point Detection point Detection point Detection point Detection point Detection point Module 1 Module 2 Detector address Detector address...
  • Page 34 DR5088RC DIGIDETECT 30.05.2019 6.2 Extending the DR5088RC with DR4088LN Feedback Devices detector 1 detector 2 Module 2 Module 1 feedback Detector address address 1 to 16 17 to 32 Global Detector 1001 www.digikeijs.com P 34...
  • Page 35 DR5088RC DIGIDETECT 30.05.2019 6.3 DR5088RC in combination with the Booster DR5033 detector 1 detector 10 detector 2 detector 3 detector 17 detector 18 detector 19 detector 26 Global Detector Modul 1 Global Detector Module 2 Detektor Adresse 1001 1017 Detector address...
  • Page 36 DR5088RC DIGIDETECT 30.05.2019 7.0 Connection to control software www.digikeijs.com P 36...
  • Page 37 DR5088RC DIGIDETECT 30.05.2019 7.1 iTrain® Open the feedback screen by clicking >> Change >> Feedback (CRTL + F7). Create a new feedback by clicking on "New". Select 'Occupied' as the detector type. Select the LocoNet® interface. For Address, enter the address corresponding to the desired detector input.
  • Page 38 DR5088RC DIGIDETECT 30.05.2019 7.2 Traincontroller® 9 Traincontroller® can evaluate the DR5088RC. For this, the DR50088RC must be configured in such a way that it functions as a "Blücher®" feedback module and the evaluation of the Railcom direction "in locomotive address" takes place.
  • Page 39 DR5088RC DIGIDETECT 30.05.2019 7.3 Rocrail 1. From the File menu, select Rocview Properties. 2. In the window that will open, click on the General tab to select the parameters. - Show loco image in block - Show train ID in block 3.
  • Page 40 DR5088RC DIGIDETECT 30.05.2019 7.3 Rocrail 1. In the sensor settings, besides the sensor address, specify the bus. In the menu Tables / Sensors .. or by selecting the Properties item in the context menu of the sensor, go to the Interface tab In the Address section of the Bus window, specify the bus number The bus number can be specified in the Sensor monitor table accessible from the Control menu.
  • Page 41 DR5088RC DIGIDETECT 30.05.2019 7.4 EStWGJ Coming soon www.digikeijs.com P 41...
  • Page 42 DR5088RC DIGIDETECT 30.05.2019 7.5.1 Windigipet® 2015 Windigipet® can evaluate the DR5088RC, but this is only possible with version WDP 2015.2b. For this, the DR50088RC must be configured in such a way that it functions as a "Blücher®" feedback module and that the evaluation of the Railcom direction is not interrupted.
  • Page 43 DR5088RC DIGIDETECT 30.05.2019 7.5.2 Windigipet® 2018 Windigipet® 2018 can evaluate the DR5088RC. For this purpose, the DR50088RC must be configured in such a way that the evaluation of the Railcom direction "in block address". IZNF properties. Select the desired digital system in the train number recognition. This is the DR5000.
