Starline BP-06 Manual Instruction

StarLine BP-06
FACTORY IMMOBILIZER
TEMPORARY BYPASS MODULE
MANUAL INSTRUCTION

Delivery set

• module
• frame antenna with connection cable
• loop antenna
• communication cable
• power output cable for Smart Key
• installation manual

Features

StarLine BP-06 module performs automatic temporary disabling of a factory RFID
(Radio Frequency Identification) system during automatic remote engine
start. RFID system is used in most modern vehicles.
RFID transponder is built in factory ignition key and it's code is automatically requested
while each engine start by means of original key.
But it prohibits a remote engine start without original key available.
StarLine BP-06 module automatically transmits an original transponder code to the
factory immobilizer antenna on the moment of remote start is engaged.
StarLine ВР-06 works in common with StarLine security systems having firmware
version L2 and above, and with StarLine X96, StarLine M96, StarLine A/AS/B96,
StarLine E96 and StarLine S96 as well.

Installation

StarLine BP-06 operates with a spare original car key.
Mount the module in following order:

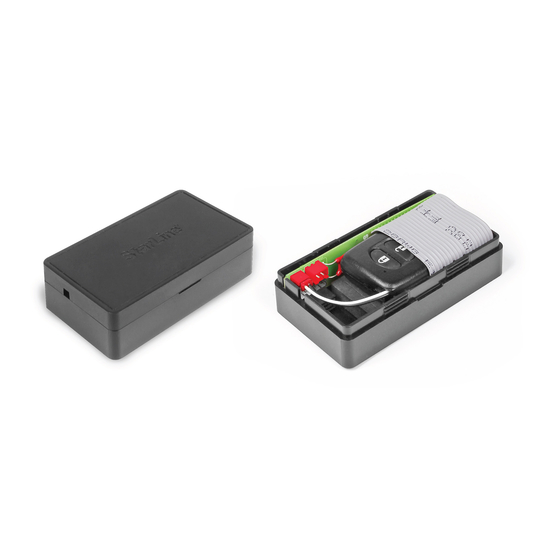

• Open the module case and put an extra car key inside with transponder inside the
planar antenna, fixing it from moving.
• Connect the cables to the corresponding connectors on the module board.
• Shut down the module case.
• Fix the module into the hidden secured place inside a car interior.
• Connect the module wires according to the connection diagram.

Connection

Red wire — power positive wire, connect to a permanent source of +12V power.
Black wire — ground.
Violet wire — transmitter of a serial digital interface (TX).
Violet - yellow wire — receiver of serial digital interface (RX).
Connection of violet and violet-yellow wires to StarLine security systems connectors is
listed in Table No. 1
