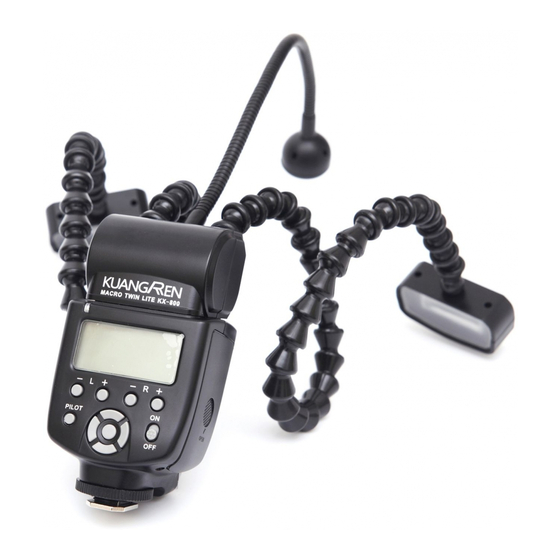

Summary of Contents for KUANGREN MACRO TWIN LITE KX-800

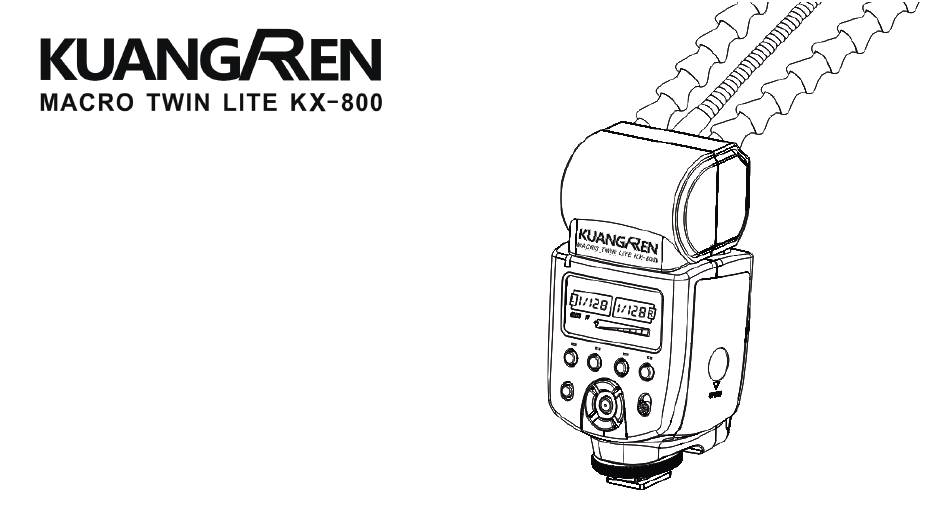

- Page 1 KX-800 Macro Twin Light Instructions Manual For your own safety, please read this manual carefully. Store this manual in a secure place for future reference.
- Page 2 I. Warning To avoid fire or electrical shock, do not expose this product to rain or moisture. • To avoid short circuit, be sure the batteries contacts are securely packed and in accordance • with local provision when handling the batteries. Place the batteries and the parts, which can be swallowed mistakenly, away from children.
- Page 3 II.Nomenclature (Please read this part carefully, so you can soon be familiar with the product)
-
Page 4: Basic Functions
III. BASIC FUNCTIONS Basic Operations Component Operation 【Power Switch】 Switch to “ON” to turn on the flash and “OFF” to turn off the flash L/R 【－】 【＋】Button Adjust the output power of the left/right flash respectively Press to test flashing in current output level 【PILOT】Button Press “UP”... - Page 5 Power-on and Power-off It is suggested that the battery shall be taken out after the power of the flash light is switched off. After turning the power switch of the flash, the flash will fetch the setting state saved in the closedown last time, the charging indicator is green, which indicates the flash is available.
- Page 6 PC Synchronous Port (for input) By connecting to the PC synchronous port, the device can be flash synchronously. Please note that this PC synchronous port only receives synchronous signal input without supporting signal output Automatic setting saving The device will automatically save the current settings, allowing you to use it quick after boot...
-
Page 7: Specifications
IV. Specifications Circuit Design Insulated Gate Bipolar Transistor（IGBT） Guide No. 58 (ISO 100, 105mm) Horizontal Rotation Angle 0~270 degrees Power Supply 4x AA size batteries Lighting Times 100~1500 times（Alkaline cell used） Recycling time appr. 2~5s（Alkaline cell used） Color Temperature 5600k Flash time 1/200s ~1/20000s Flash Conttrol... - Page 8 V. FAQ 1) Photos are under exposure or over exposure? Check if the set shutter, aperture and ISO are too near the flash limit or if some settings including exposure compensation in relation to flash are proper. 2) You may feel the flash control panel is dim, because there is one protective film on the panel; you can tear it away to enjoy a clear visual effect.
