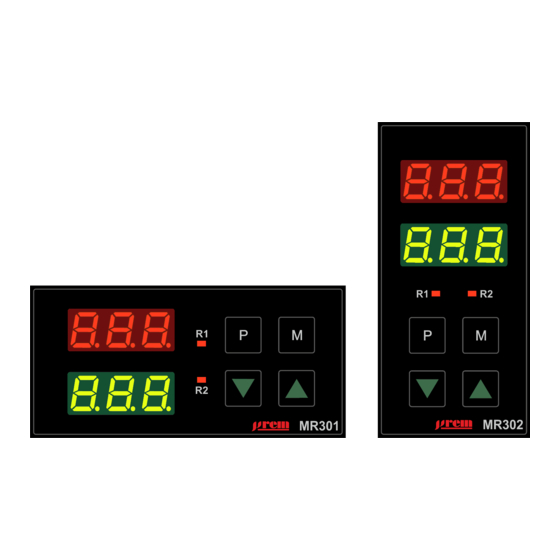

Summary of Contents for Mikrorem MR301

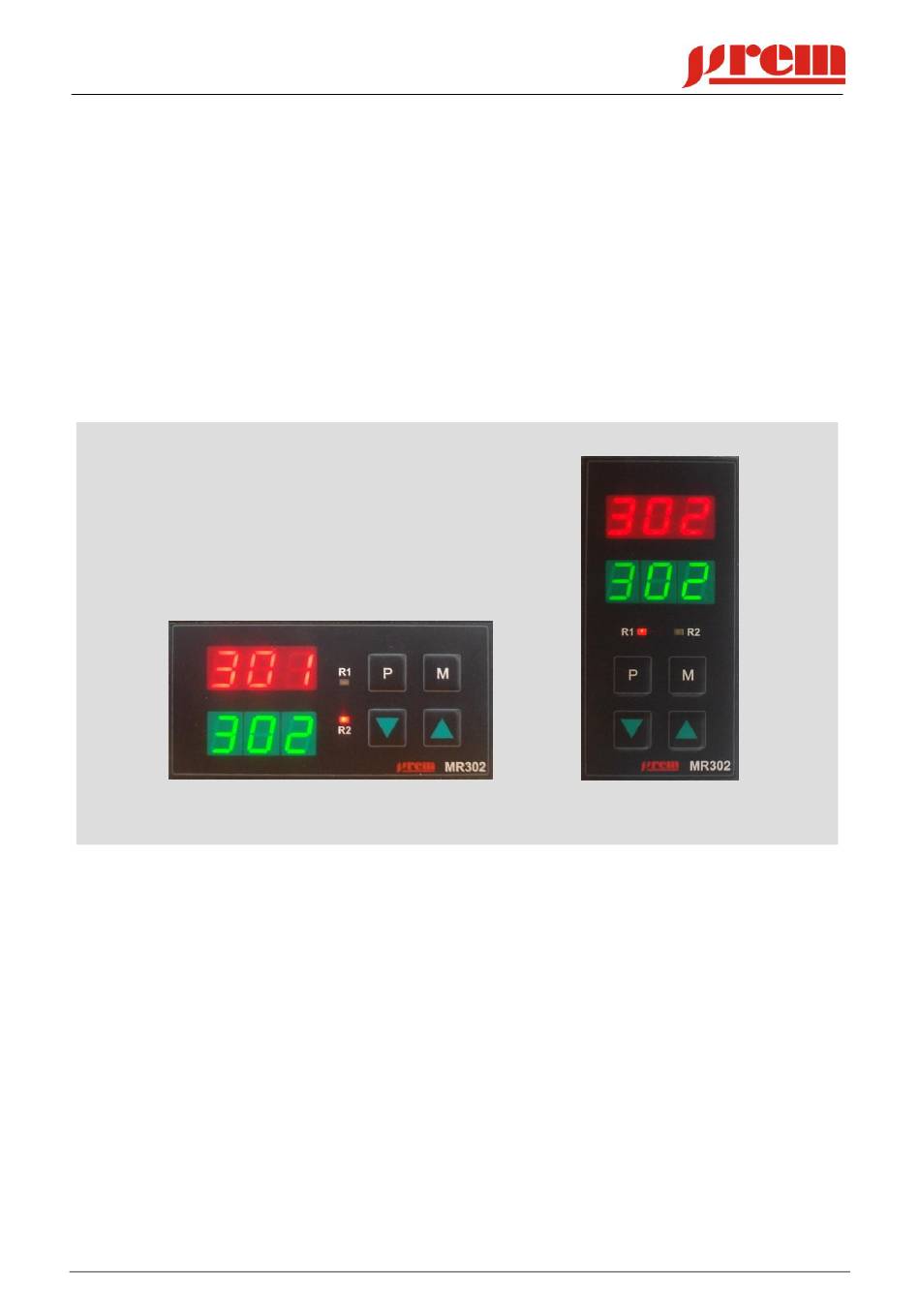

- Page 1 Digital Temperature Controllers MR301/302 User's Manual doc. 0488A-01/12 "MIKROREM" d.o.o. , Braće Spasić 4A, 32000 ČAČAK E-mail: office@mikrorem.com tel/fax: +381 (32) 370 500 Web: www.mikrorem.com...
-
Page 2: Table Of Contents
Digital Temperature Controllers MR301/302 Table of contents Features..............................3 Front-panel description and button functions ..................3 Access levels ............................3 Layout of menus and parameters ......................4 Parameter setting ............................ 5 5.1. Setting the Set Point (SP parameter) ....................5 5.2. -
Page 3: Features
Digital Temperature Controllers MR301/302 1. Features Configurable analog input accepts Pt100, J, K and L probes Measurement accuracy better then 0.25% Display and setting resolution 0.1 C or 1 C Two independently configurable relay or solid-state outputs PID or ON/OFF transfer characteristics for output 1 (cooling or heating) -
Page 4: Layout Of Menus And Parameters
Digital Temperature Controllers MR301/302 4. Layout of menus and parameters Figure 2 "MIKROREM", Braće Spasić 4A, ČAČAK 4/12 Tel/fax: +381 (32) 370 500... -
Page 5: Parameter Setting
Digital Temperature Controllers MR301/302 5. Parameter setting 5.1. Setting the Set Point (SP parameter) Adjusting the set temperature is approached directly from the main display by pressing the "UP" or "DOWN" button. The upper display is a written message SP, and on the lower display shows the current value of the set temperature. -
Page 6: Menus And Parametars
Digital Temperature Controllers MR301/302 7. Menus and parameters MAIN MENU Name Level Description Note rEG LSt Control parameter's menu CFG LSt Configuration menu CAL LSt Calibration menu CONTROL PARAMETER'S MENU (rEG LSt) Name Level Range Description Note 0.1 to 99.9 ºC... -
Page 7: Control Parameters
Digital Temperature Controllers MR301/302 7.1. Control parameters Parameter: This parameter defines proportional band for PID control output. In this band around the Set Point, the control output (Control Value) is proportional to the error signal (the difference between the Process Variable and the Set Point). Outside this range the output is on or off (depending on the control action and error signal). - Page 8 Digital Temperature Controllers MR301/302 Figure 6 Parameter: The parameter determines intensity of input signal digital filtering. For tAU=0 there is no filtering. For tAU=5 filter time constant is approx. 8 seconds. Each decrement by 1 halves time constant. Suggested value is 2.
-
Page 9: Calibration Parameters
Digital Temperature Controllers MR301/302 Parameter: The value of OFS is added algebraically to the measured value. Possible reasons are: Removal of input sensor zero error Compensation of thermal gradient - temperature difference between the sensor location and the point of desired temperature measurement... -
Page 10: Device Calibration
Digital Temperature Controllers MR301/302 9. Device calibration There are 5 calibration parameters to calibrate measuring. Parameters tr0 and tr1 are to calibrate Pt100 measuring, while the parameters tv0, tv1 and CJC calibrate thermocouple measurement. For calibration do the next steps: Power up the device and leave it 15 minutes to warm up. -
Page 11: Specifications
Digital Temperature Controllers MR301/302 11. Specifications 11.1. Possible sensors and measuring ranges The following input sensors can be connected for temperature input: Sensor type Snd parameter Standard Indication range Pt100 IEC 751 -199 C to 850 C 850 C "J" Fe-CuNi... -
Page 12: Notes
Digital Temperature Controllers MR301/302 12. Notes "MIKROREM", Braće Spasić 4A, ČAČAK 12/12 Tel/fax: +381 (32) 370 500...
