Page 1 of 3 CO — RU 200
Ref. no: 99DE009
Date: December 1993
CO - RU 200 RIAA UNIT
Description:

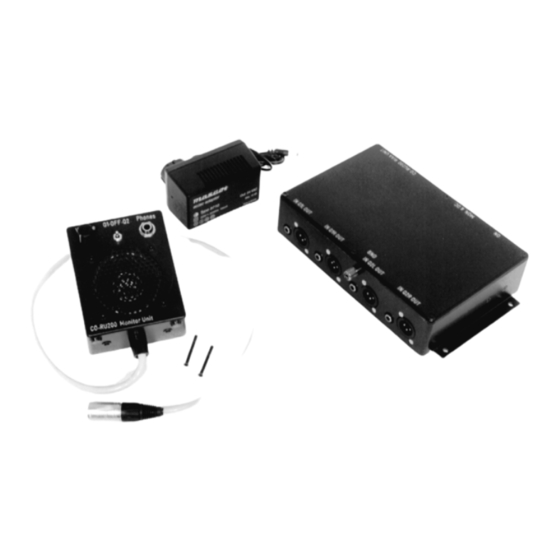

CO-RU200 is a double stereo precision preamplifier for recordplayers with a mono monitor unit for easy
cueing of the two playes.
The inputs are equalizied following the RIAA-norm and is amplified up to line level (0dBU), not phono-
level as most RIAA-amplifiers on the market!. The outputs are electronical balanced to futher match
professional equipment, thus reducing the possiblity of noise pickup to a minimum.
At the monitor-unit You can switch between Q1, Q2 and off. There is also a 1/4" jacksocket with an
internal switch, to switch off the speaker, for the use of headphones instead of the build-in speaker. The
volume control is a VCA-system to reduce the cabeling of sound signals.
The main unit is provided with four holes for mounting under the table, nearby the two recordplayers. The
monitor unit is placed on topp of the table between the two record players, and is mounted with two 4mm.
maschine screws going thru the table. A layover for the drilling of the holes in the table is provided,
where you also get the third hole for the multicable going from the monitor unit to the main unit. That
gives You a clean and sturdy mount without any visible cables at the top of the table.
