Summary of Contents for Minghe Electronic Technology B3603
- Page 1 B3603DC-DC Digital Control Step-down Module User Manual Zhengzhou Minghe Electronic Technology Co. , Ltd...

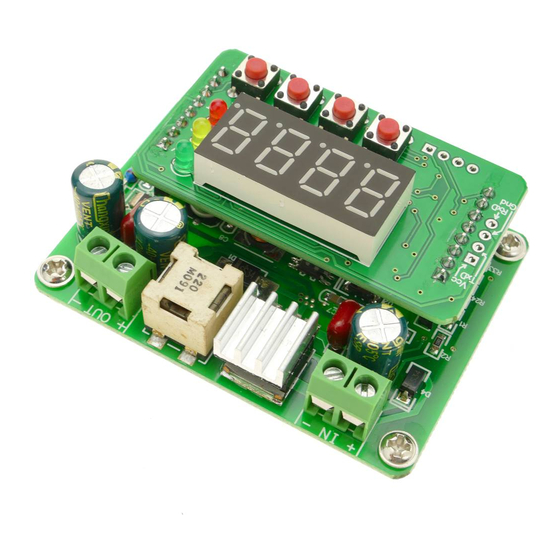

- Page 2 B3603 DC-DC Digital Control Step-down Module is a digital control and digital display step-down module,it has small volume, high power, high efficiency,it working stability.It controlled by high speed micro controller, can adjust the output voltage and current accurately.It has 10 groups of storage location, can store and bring up the parameters at any time.It equipped with four of the eight period LED digital...
- Page 3 Output current: 0 ~ 3A Voltage regulation/display resolution: 0.01 V Current regulation/display resolution: 0.001 A The minimum display resolution of power: 0.001 W The minimum display resolution of capacity: 0.001 AH Conversion efficiency: up to 92% The output ripple: ≦50 mV Working temperature: - 40℃~ + 85 ℃...
- Page 4 This module has three special functions, the default is closed, if necessary, you can open them. Function 0:After electricity,it will automatically output. Function 1: Save and bring up the parameters, display the power and capacity. Function 2: Automatic take turns to show parameters after output Open/close method: Long press the"OK"...
- Page 5 the power to change the position. For example: P. 123 said 0.123 W, P1.23 said 1.23 W, P12.3 said 12.3 W, P102. said 102 W C. 000, C0.00, C00.0 and C000. : capacity value, unit AH, the position of the decimal point as the volume change the position.
