Summary of Contents for EIDT ZYPHO

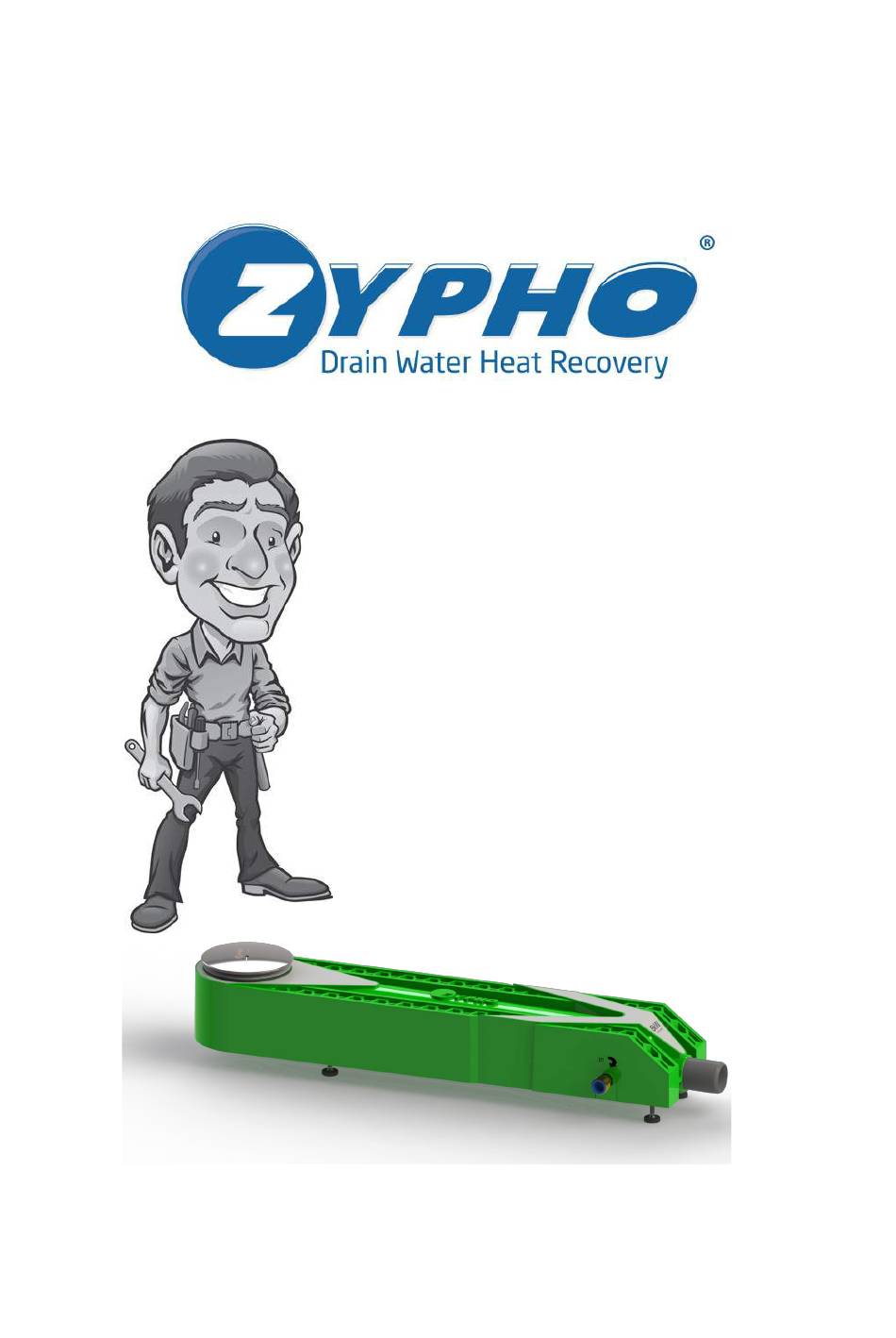

- Page 1 INSTALLATION MANUAL...
- Page 2 Please note that this manual contains important information. Read it carefully before starting the installation or use of the product. The ZYPHO should only be installed by a competent plumber who has the expertise to be guided by this manual.
-
Page 3: Package Contents
PACKAGE CONTENTS Nº Description Material Connection Valve cap Ø90 Trap Thread ring Sealing ring Rubber Wrench Adjustable foot Steel / Plastic Input connector 1/2” Brass Output connector 1/2” Brass Water discharge Ø40... - Page 4 TWO METHODS OF INSTALLATION pp. 5-7 Installation above the slab / coupled to the shower tray [II] pp. 8-10 Installation under the slab / under the shower tray or bathtub with desired separation...
-
Page 5: Installation Configurations
INSTALLATION CONFIGURATIONS... - Page 6 The internal evacuation of the ZYPHO already has a slope of 2% to ensure the correct flow of waste water from the shower. Put the shower tray over the ZYPHO and align it. Remove the tray for implementing the next steps.
- Page 7 Use both of the provided Male 1/2’’ fittings and proceed to their sealing in accordance with good plumbing practice. Connect the ZYPHO drain water outlet (9) to the drain pipe sewer/floor drain. We recommend to perform a leak test on the mains water circuit and on the drain water circuit to ensure the integrity of the inlet and outlet connections.
-
Page 8: Installation Method
INSTALLATION - METHOD II Remove components (1), (2), (3) and (4). Install a curve of 90° Ø40mm. Ensure that the curve goes beyond the rubber. If necessary, use a vertical PVC pipe of desired length. - Page 9 Using screws, fix the ZYPHO to the slab. Make sure that the unit is installed horizontally. The internal evacuation of the ZYPHO already has a slope of 2% to ensure the correct flow of waste water from the shower. Connect the mains cold water to the unit’s inlet (7), and preheated water outlet (8) from the unit to the cold side of the shower mixer tap and/or domestic water heater (depending on installation configuration).
- Page 10 We recommend to perform a leak test on the mains water circuit and on the drain water circuit to ensure the integrity of the inlet and outlet connections. Install the shower tray and the shower valve.
-
Page 11: Maintenance
MAINTENANCE The ZYPHO has been designed to require minimal maintenance other than usual cleaning with traps and filters retaining almost all hair and dirt, thus preventing blockages. To avoid losing efficiency in the long term, we recommend to periodically dissolve soap residue on the inside copper pipe with your usual drain cleaner and/or to clean the unit with a pipe cleaning brush and with hot water. - Page 12 USEFUL INFORMATION - CONTACTS PRODUCT DEVELOPED BY EIDT, SA EDP Starter, Rua Cidade de Gôa, nº 4, 2685-039 Sacavém Portugal +351 219 400 029 b2b@zypho.eu www.zypho.eu PATENTED (PCT054506)
