Print bed adjustment

These directions are the same for the T-Jet and the T-Jet2. The only difference is

that the T Jet 2 has more screws to remove on the front cover of the bed.

Take off the Back cover off the bed. (This will be the side that does NOT

have the wheel for adjusting the height on it.)

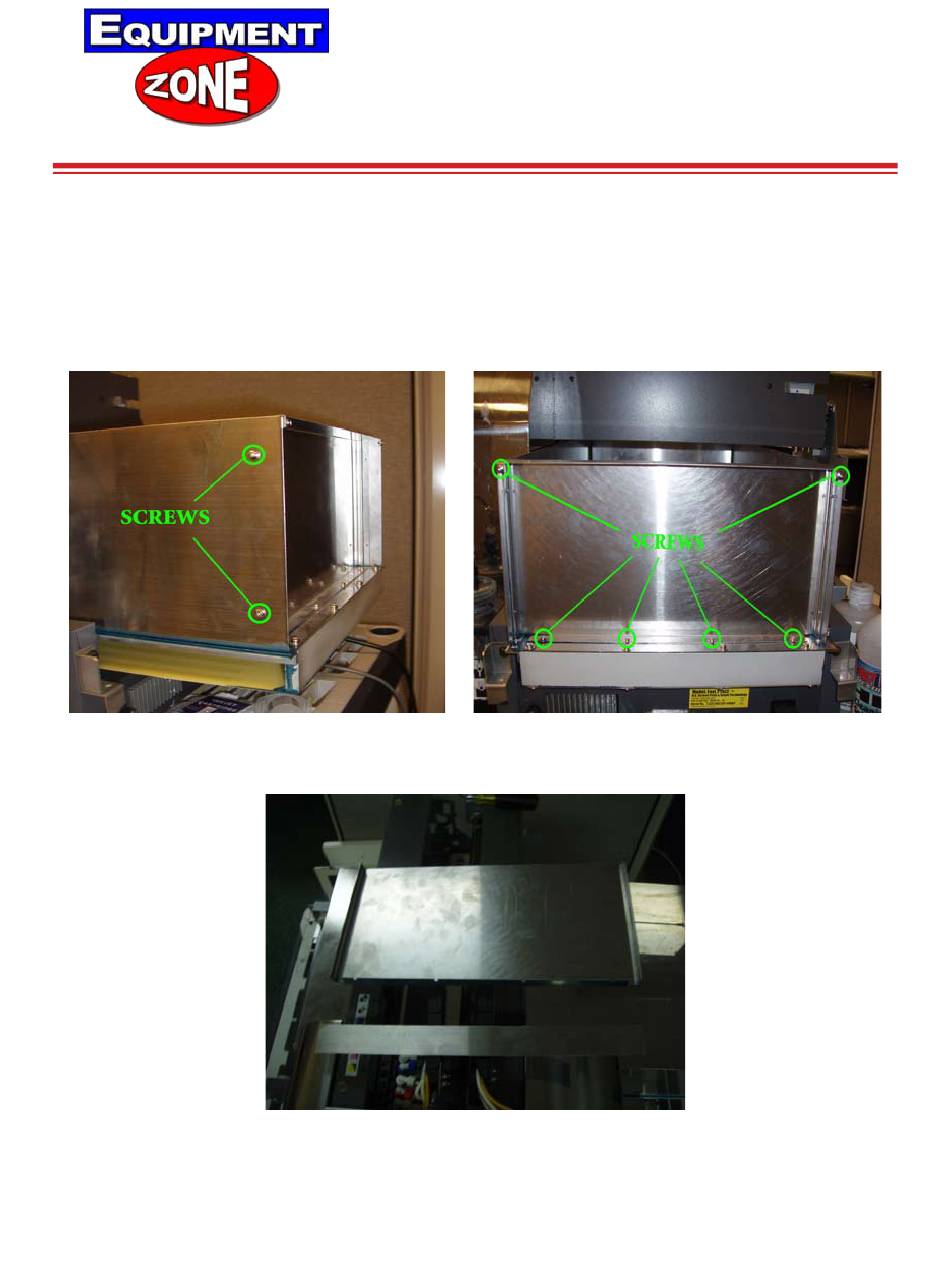

There are 10 screws that hold it on. 6 screws on the back and 4 screws on the

sides (2 on each)

(This should come out in two pieces as shown below)

1-800-408-0040

(01) 201-797-1504

info@equipmentzone.com

T-Jet 1 & 2 Print Bed Adjustment

Technical Guide

Table of Contents

Need help?

Do you have a question about the T-Jet 1 and is the answer not in the manual?

Page 1 Technical Guide info@equipmentzone.com T-Jet 1 & 2 Print Bed Adjustment These directions are the same for the T-Jet and the T-Jet2. The only difference is that the T Jet 2 has more screws to remove on the front cover of the bed.
Page 2 Once the cover is off, the plate at the bottom of the bed will slide out. Underneath you will see the scissor lift mechanism that moves the plate up and down. There are two connectors that join the adjustment rods. Using a screw driver, remove the screws from the connector closest to you.
Page 3 Adjust the two scissor lifts so they are even. After they are even, tighten the connector screws from Step 3 and reassemble the bed plate. To check the level of the bed, crank the plate all the way to the up position and make sure it is even with the lip of the bed.
