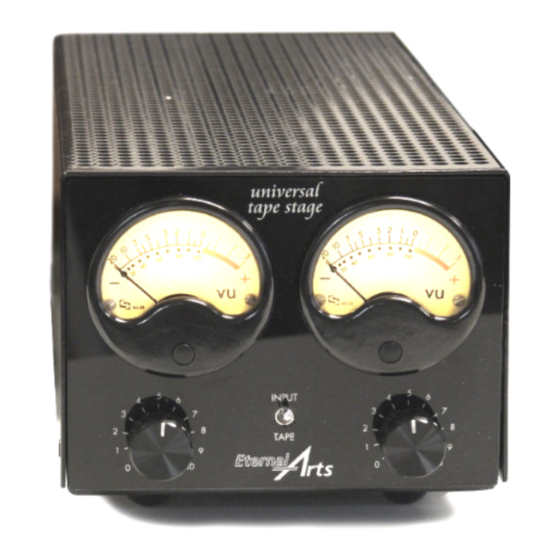

Operating the EternalArts Universal Tape Stage
From unbalanced high level sources > 500 mV (such as
- Set front switch to 'Source'
- Use Cinch-connectors ‚Input', set rear switch ‚RCA
conn.' to position 0 dBu
- VU-meters are pre-adjusted with the rear switch
'0 VU = + 4 dBu' for machines with a magnetic flux of
320 nWb/m
'0 VU = + 6 dBu' for machines with a magnetic flux of
514 nWb/m
- Use balanced XLR-sockets symbol 'To Tape' to con-
nect your tape machine
- Control VU-level by using the pots on front
From unbalanced low level sources < 500 mV (such as early
- Same as above, set rear switch ‚RCA conn.' to position
- 6 dBu
To unbalanced high level inputs (such as HiFi preamp)
- Set front switch to 'Tape'
- Use balanced XLR-sockets symbol 'From Tape' to
connect your tape machine
Recording
HiFi preamp, CD-Player)
equipment under DIN-standard)
Playback
Advertisement
Table of Contents
Summary of Contents for EternalArts Universal Tape Stage
- Page 1 Operating the EternalArts Universal Tape Stage Recording From unbalanced high level sources > 500 mV (such as HiFi preamp, CD-Player) - Set front switch to ’Source’ - Use Cinch-connectors ‚Input‘, set rear switch ‚RCA conn.’ to position 0 dBu - VU-meters are pre-adjusted with the rear switch ‘0 VU = + 4 dBu’...
- Page 2 EternalArts headphone amplifier ‘twin type profes- sional’ for monitoring or feed a second recorder for duplication Important Note: Because of the technical layout of the circuitry the XLR- connectors of the Universal Tape Stage may not be used in short-circuit to achieve an unbalanced signal.
