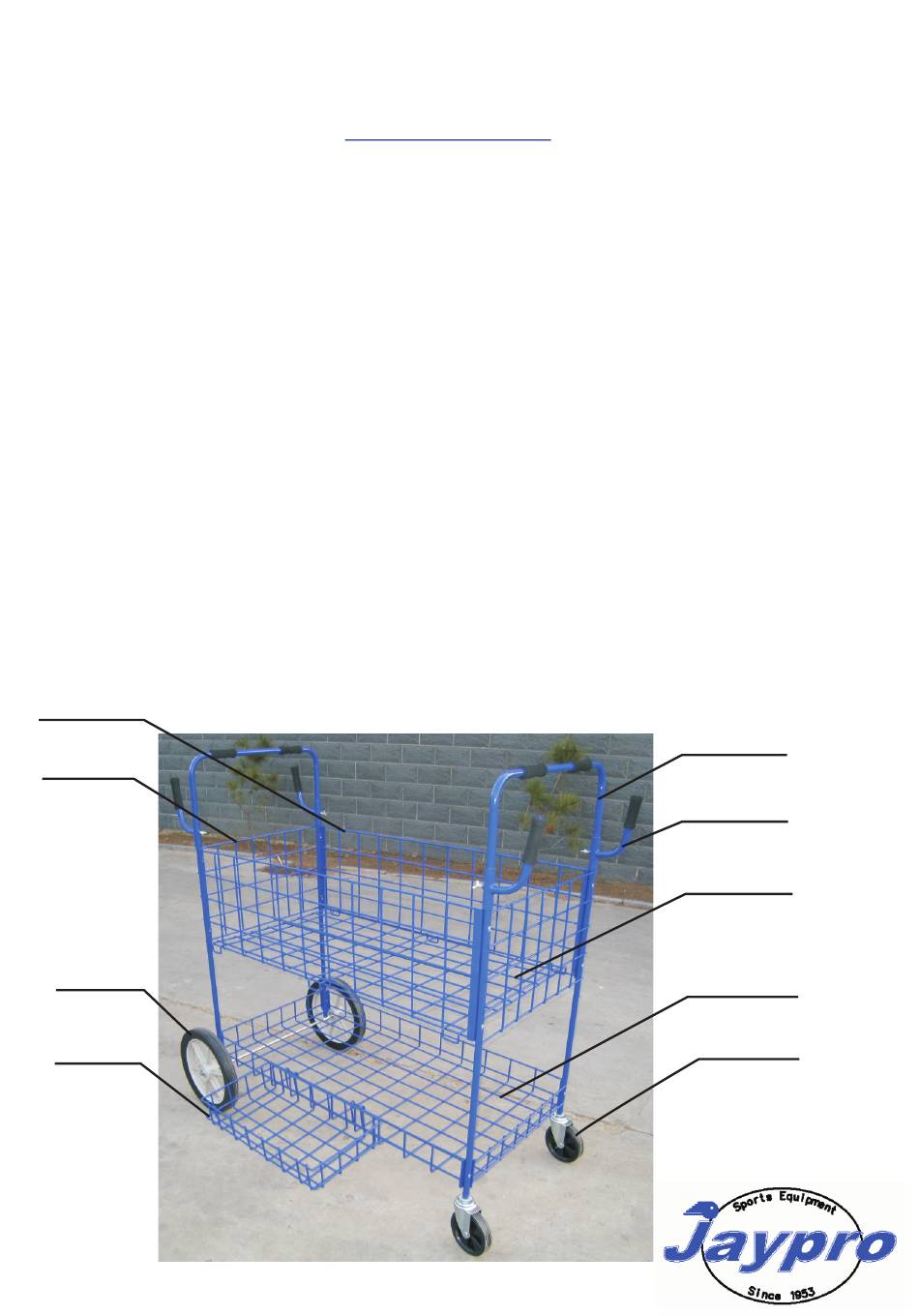

Side panel
Back panel
Wheel 14"
Side Cage
ASSEMBLY INSTRUCTIONS
TE-PE02
Service No: 800-243-0533
www.jaypro.com
PART LIST
Item# Description
1
Side panel
2
Front panel
3
Back panel (with bushing)
4
Middle panel
5
Bottom panel
6
U Handle
7
Small handle
8
Plastic bushing (pre-installed)
9
End cap (pre-installed)
10
Foam grip (pre-installed)
11
Butterfly Head screw
12
Wheel 14"
13
Caster 6"
14
Wheel shaft assembly
15
Sink Screw M6x25mm
16
Hex bolt M8x40mm
17
Hex bolt 1/2"x80mm
18
Washer M8
19
Washer 1/2"
20
Hex nut 1/2"
Qty
2pcs
1pc
1pc
1pc
1pc
2pcs
4pcs
2pcs
4pcs
8pcs
4pcs
2pcs
2pcs
1pc
12pcs
2pcs
2pcs
2pcs
2pcs
2pcs
U handle
Small handle
Middle panel
Bottom panel
Caster 6"
Advertisement
Summary of Contents for Jaypro TE-PE02
- Page 1 ASSEMBLY INSTRUCTIONS TE-PE02 Service No: 800-243-0533 www.jaypro.com PART LIST Item# Description Side panel 2pcs Front panel Back panel (with bushing) Middle panel Bottom panel U Handle 2pcs Small handle 4pcs Plastic bushing (pre-installed) 2pcs End cap (pre-installed) 4pcs Foam grip (pre-installed)
- Page 2 ASSEMBLY INSTRUCTIONS: Step 1 Back panel - with Open the package, Remove all plastic bushing at ties and protections. bottom Connect end panels to bottom panel with screw M6x25mm. Do not tighten at this time. Front panel Bottom Panel Step 2 Connect Side panels to End panels with screw M6x25mm.
- Page 3 ASSEMBLY INSTRUCTIONS: Middle panel Step 3 Place Middle panel between Side panels, push the Middle panel all the way to make sure the wire grid tab fits over and onto the bottom gridof side panel. Middle panel End panel Side panel Step 4 Push the 2pcs casters all the way to the bottom end of Front panel.
- Page 4 ASSEMBLY INSTRUCTIONS: Back panel Wheel assembly Hex bar Hex bolt M8x40mm Step 6 Connect the wheel assembly to the Back Panel using one Hex bolt M8x40mm and one Washer M8 on each side. Tighten the two flat hex nut against hex bar.
