Summary of Contents for Limber Bed 690 Series

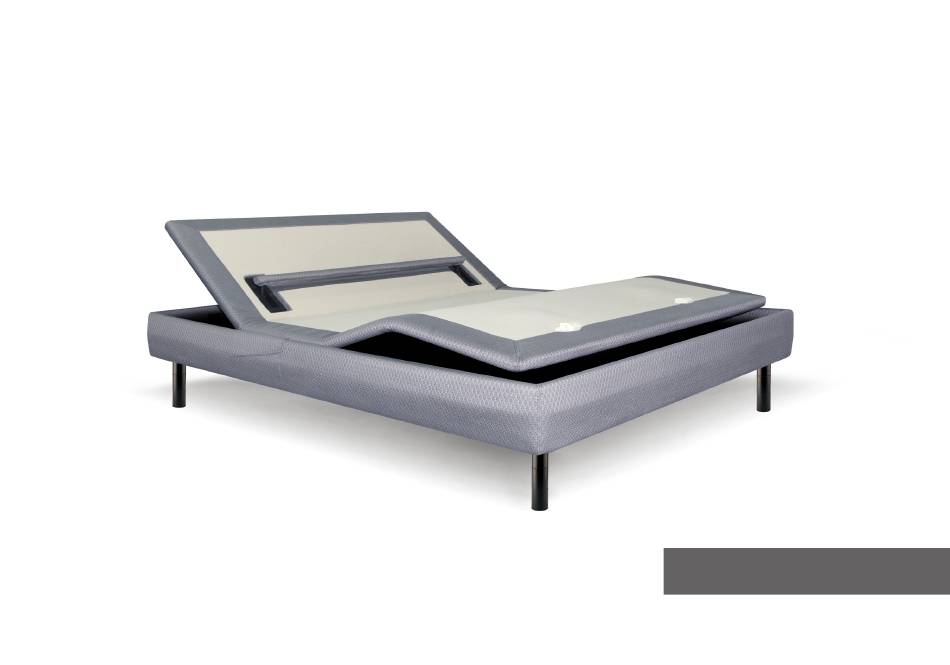

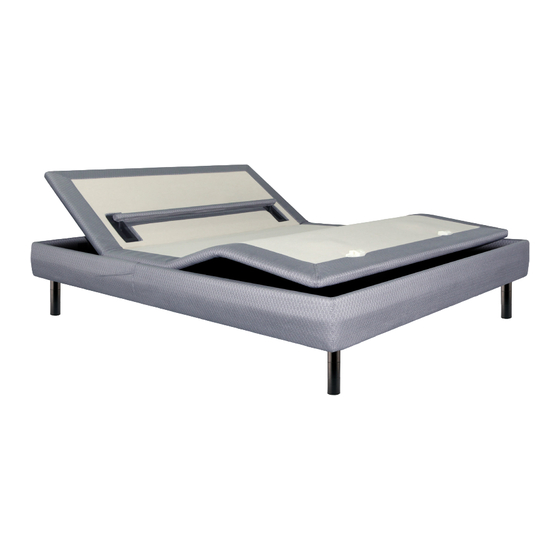

Page 1 Limber Bed OWNER’S MANUAL Series 690...
Page 2: Table Of Contents
table of contents Safety Precautions and Usage Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2 Parts List .
Page 3: Safety Precautions And Usage Statements
In-Home Use and Hospital Disclaimer: hair and the like . Do not drop or insert any object into any opening . Limber Bed adjustable bed bases are designed solely for in-home Discontinue use of the bed base and contact a qualified service center use .
Page 4 safety precautions and usage statements Safety Features: its distance from the wall, will make contact with the steel platform Casters (optional leg accessory) are equipped with locking wheels to supports of the base creating a contact noise . When entering, exiting prevent unwanted movement .
Page 5: Parts List
parts list Before discarding the packing materials- ensure all the parts are accounted for. All electronics and components that need to be installed are located in boxes under the base or attached to the frame . Wireless Remote Control and (3) AAA batteries Mattress Retainer Bar (1)* Legs (4) Power Cord (1)
Page 6: Base Overview
base overview Power Down Box Massage Motors Control Box USB Port Under Bed Tilt Motor Lighting Lumbar Motor Head Motor USB Port Foot Motor Massage Motors...
Page 7: Quick Reference Guide
quick reference guide Not to scale. For illustration purposes only. Read all instructions before beginning installation. Connection to media faceplates (installed VIBRATION under the base) VIBRATION Control Box Connection ports to all motors (installed under base) Power Cord Power Supply Connection to under bed lighting (installed Input Power...
Page 8: Installation Guide
installation guide Always use two people when setting up the base. STEP 1 STEP 3 Place the bed base box in a desired location with the bottom of the To install headboard brackets: See detailed installation box facing up . instructions on page 10-11.
Page 9 installation guide STEP 5 STEP 9 Uncoil input cord (connected to control box’s Ensure batteries are correctly installed in the back of the remote . power port) and plug into Power Supply . Quickly test functions to verify proper setup before placing mattress on base .
Page 10: Remote Control
remote control REMOTE OVERVIEW MASSAGE FEATURE 10, 20, 30 Minute Massage Timer Lights The HEAD + and - buttons adjust the head massage intensities . Levels 1-3 . Massage Timer Head Massage Intensity The FOOT + and - buttons adjust the foot massage intensities .
Page 11 remote control ONE TOUCH BUTTONS ADJUST One touch LIGHT button The HEAD arrows lift and activates and turns off the lower the head section of the safety lighting feature . base . One touch ZERO G preset ® The FOOTarrows lift and position .
Page 12: Setting Remote Custom Presets
setting remote custom presets The programmable feature allows you to save two custom positions. Please read all the instructions below before setting your custom presets on the remote. STEP 1 Articulate the head and foot to your desired position . STEP 2 Press and hold one of the picture pre-set buttons ] The LED lights at top of remote will flash in...
Page 13: Bluetooth Setup
To operate the base from a smart device, the Limber Bed Remote application must be downloaded to the desired smart device from the App Store (Apple) or Google Play Store (Android). STEP 1 STEP 4 Open the Limber Bed application on your device and select your...
Page 14: Pair Remote
pair remote The original remote that comes in the box is already paired to the bed base. No further action is required. In the event that the remote is not paired with the base, follow the steps below. STEP 1 STEP 2 Remove back cover from remote Press and hold button on the back of the remote .
Page 15: Headboard Bracket Installation Guide
headboard bracket installation guide A 9/16” & 1/2” socket and crescent wrench are necessary to complete installation. STEP 1 STEP 2 a .) Align the hole in the bracket to the brass sleeve into which the Attach the plastic spacer and T-Bracket . leg threads .
Page 16: Emergency Power Down Box
emergency power down box In the event that the base is stuck in an articulated position during a power outage- the Power Down Box will return the base to a flat position. (2) 9 Volt batteries are required to operate the power down feature and are NOT included. STEP 1 STEP 2 Locate the Power Down Box under the base .
Page 17: Setting Up Two Bases
setting up two bases If any split setup is being installed, plastic connecting straps are provided (one per base) to secure the bases together. Use both straps to secure the head and foot portions together. STEP 1 STEP 2 With the bases in their Slide side (a) of the connecting strap onto leg bolt .
Page 18 setting up two bases If simultaneous operation of two bases is desired, use the SmartSync Cord to connect the ™ electronics of both bases together. STEP 1 STEP 4 Unplug base from power source . Connect each power-down box male connection to the sync cord female connection (Refer to the illustration below) .
Page 19: Troubleshooting
troubleshooting If one or more functions on the bed base have stopped operating: • Check under the bed base to verify that the wired connections are secure and that there are no cords or bedding obstructing the movement of the base . •...
Page 20 US Customer Service 1-866-726-3882 Phone www.limberbed.com...
