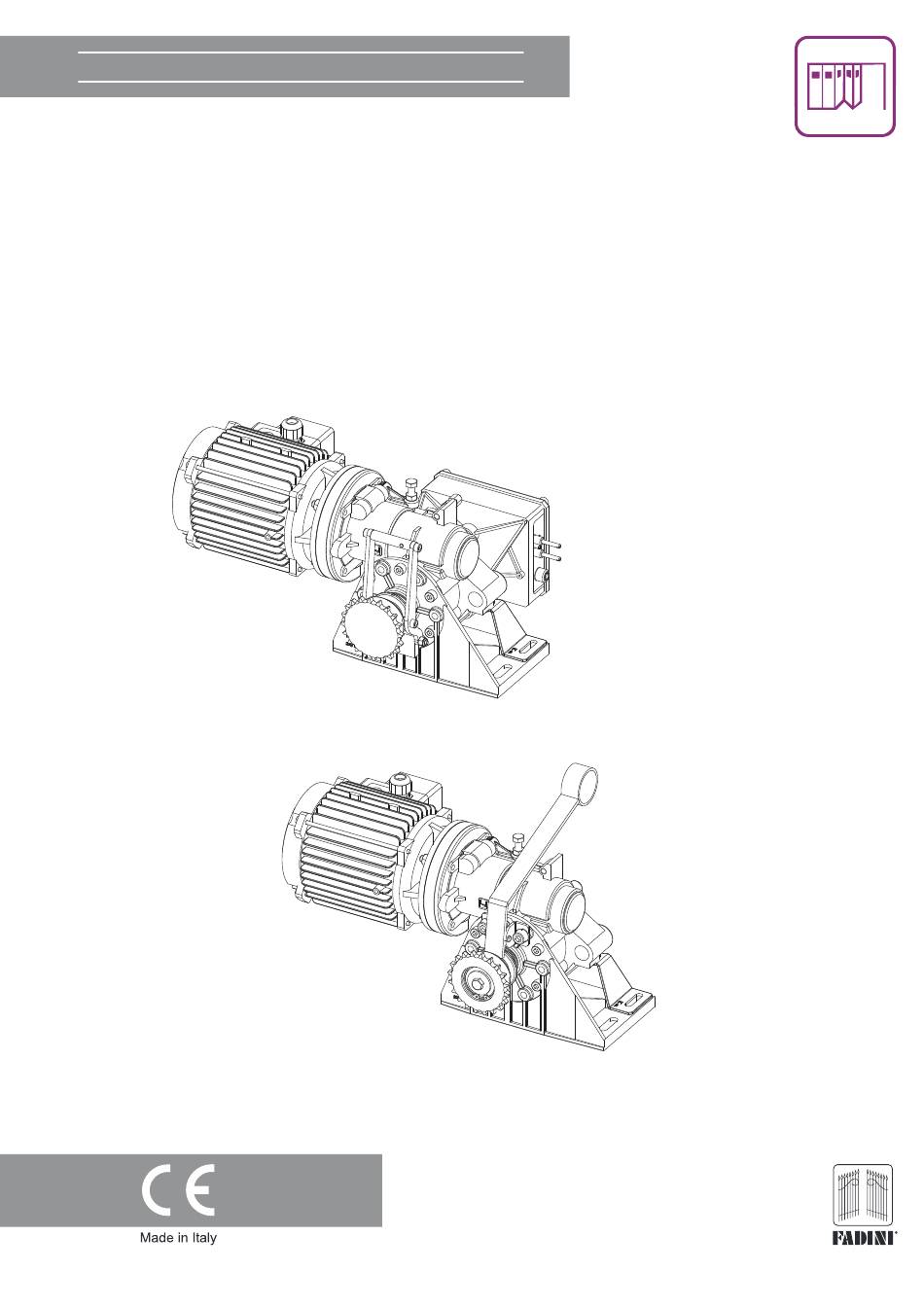

- Page 1 GB instructions manual 1 - 12 pages MEC 200 LB Chain-drive electromechanical operator for sectional, folding and industrial doors EN 13241 EN 12453 EN 12445 the gate opener...
-
Page 2: Installation
Meccanica Fadini snc (Via Mantova, 177/A - 37053 Cerea - VR - Italy) declares under own responsibility that: MEC 200 LB complies with the 2006/42/CE Machinery Directive, and also that it is sold to be installed in an “automatic system”, along with original accessories and components as indicated by the manufacturing company. An automatic gate operator is, by law, a “machinery”... -
Page 3: Product General Description
PRODUCT GENERAL DESCRIPTION MEC 200 LB can provide a versatile automatic system for any chain-driven sliding door, such as folding doors (made up of panels hinged together and folding on one side on opening), or industrial doors mounted on a guide system. - Page 4 WIRING DIAGRAM AND LAYOUT OF THE ACCESSORIES Before installing MEC 200 LB it is advisable that the preparatory works be made for all of the accessories required at least to ensure safety and proper control of the system.
-
Page 5: Chain Tensioner
MOUNTING AND FASTENING MEC 200 LB MEC 200 LB is to be mounted by positioning and fastening the motor base plate on to the previously xed support bracket. With the door in fully open position there must be a clearance of 10-15 cm as indicated in the picture, with reference to the pinion. - Page 6 RELEASING AND OPENING BY HAND MEC 200 LB, all versions, can be released for manual operations by means of a lever system disengaging the pinion by the action of a collar. To override the motor, two options are possible: by metallic cable whose device can be positioned within easy reach on the wall (optional on request), or by a lever with a ring at the end to be pulled by a hook (not included in the equipment).
- Page 7 • by the position adjusting screws, move the two microswitches close to the box inner walls; • with MEC 200 LB overridden (see operations for manual release) move the door by hand up to the middle of the travel; • with MEC 200 LB overridden (see operations for manual release) move the contact shaft halfway the travel;...
- Page 8 EXTERNAL LIMIT SWITCHES MEC 200 LB with external limit switches (recommended for doors wider than 8 meters) does not require any adjustment: the open and close limit switches are to be positioned in a way they correspond to the actual open and closed positions of the door.
- Page 9 Chain-drive electromechanical operator MEC 200 LB for sectional, folding and industrial doors APPLICATION OF MEC 200 LB ON TO SECTIONAL DOORS Elastic spring Avoid sharp bending Parts legend: 1 - Elastic springs support shaft 2 - Z40 special pinion item code No. 2036L 3 - 1/2”...
- Page 10 Chain-drive electromechanical operator MEC 200 LB for sectional, folding and industrial doors APPLICATION OF MEC 200 LB REVERSIBLE Door fastened to the chain Chain Chain tensioner MEC 200 LB Reversible Door stop in open position Door Electric lock stop in open...
-
Page 11: Maintenance Record
NOTE WELL: this document must record any ordinary and extraordinary services including installation, maintenance, repairs and replacements to be made only by using Fadini original spare parts. This document, for the data included in it, must be made available to authorized inspectors/o cers, and a copy of it must be handed over the end user/s. - Page 12 110 Nm Gear rating 1/32 Travel speed 9,6 m/1' - Z20 1/2" Working temperature -20 °C +80 °C Oil type Oil Fadini - Item 706L Door surface 25 m² 25 m² 50 m² 50 m² 50 m² Mec 200 LB weight...
