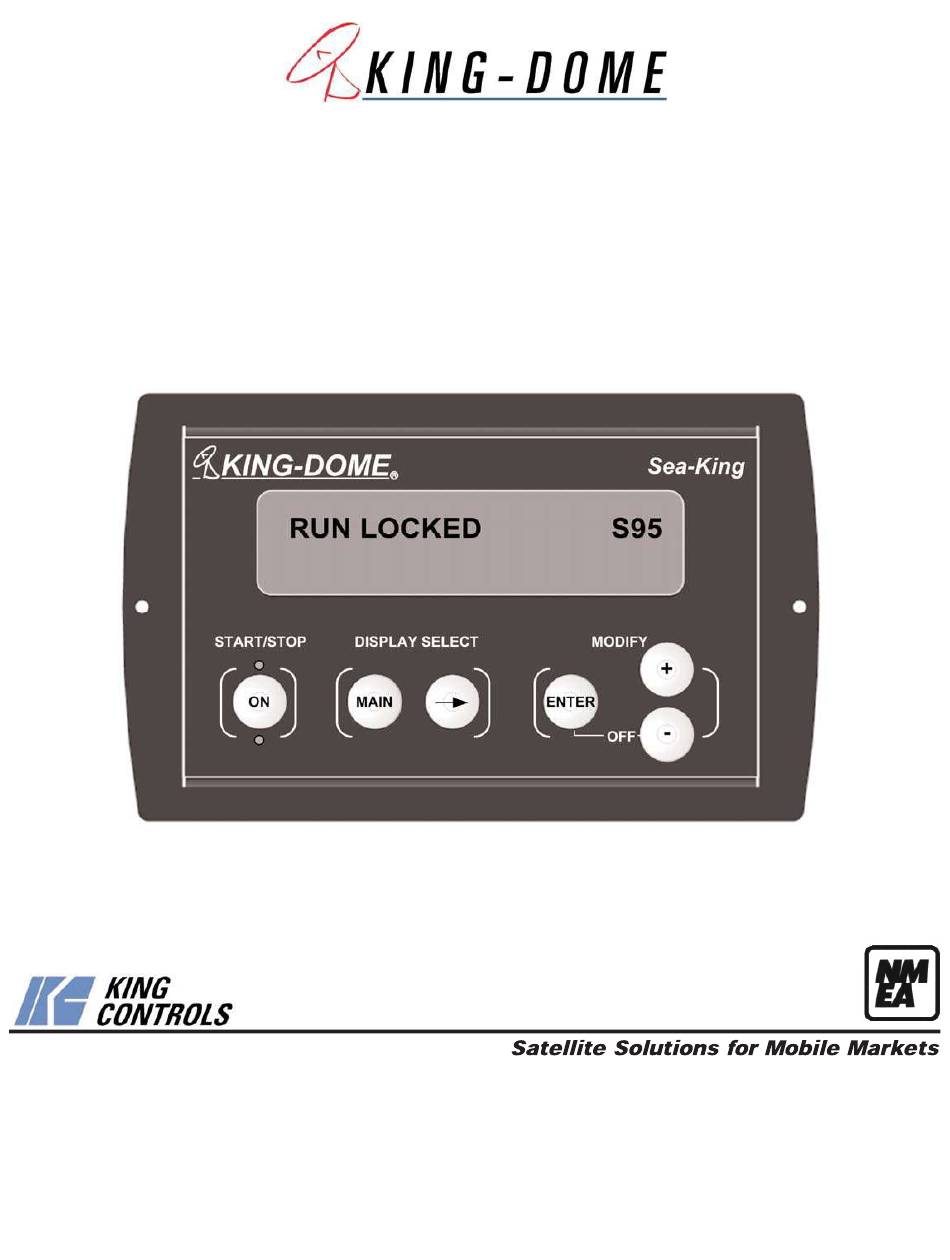

- Page 1 Sea-King ® Sea-King Trouble Shooting Guide 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com 1304 SEA-KING TROUBLE SHOOTING GUIDE REV D...
-
Page 3: Table Of Contents
IMPORTANT! Before performing any warranty work, you must call King Controls for a Service Order Number. TABLE OF CONTENTS Section Contents Page INTRODUCTION ........2 WARRANTY INFORMATION . -
Page 4: Introduction
Welcome to King Controls. The satellite TV market is expanding and changing. The King Controls Service Department stays up to date with the latest information to assist you in keeping troubleshooting and repair time to a minimum. -
Page 5: Warranty Information
• The product has been abused, misused, improperly installed or improperly maintained. • Repairs have been made or attempted by others that are not certified by King Controls to do such repairs. • Repairs are required because of normal wear and tear. -
Page 6: Operation
OPERATION SECTION 3 Note: For more detailed installation information, please refer to the 9760/62 or the 9762-SW Installation and Operating Instructions Manual. BASIC OPERATION Note: This example is for the DTV 101 satellite in Region 2-North Central. The information on your controller will vary depending on the satellite and region you have chosen. -
Page 7: Set Region
SET REGION Note: Setting the current region reduces satellite acquisition time. REGION OPTIONS: NORTH WEST NORTH CENTRAL NORTH EAST CENTRAL WEST MIDDLE CENTRAL CENTRAL EAST SOUTH WEST SOUTH CENTRAL SOUTH EAST ALL REGIONS RECALIBRATE Page 5... -
Page 8: Set Satellite Service
SET SATELLITE SERVICE SATELLITE OPTIONS DTV 101 DIRECTV at 101 West Longitude DTV 119 DIRECTV at 119 DTV 101/119 DIRECTV at 101 and 119 DISH 110 Dish Network at 110 Dish 119 Dish Network at 119 Dish 148 Dish Network at 148 EXPVU 82 Bell ExpressVu at 82 EXPVU 91... - Page 9 Note: For DIRECTV Subscribers: The satellite setting allows the user to select the satellite and service provider of choice. For DIRECTV subscribers, the Sea-King can also track a secondary or alternate satellite. Example: If you are a subscriber to the DIRECTV service most of the programming that you will be watching will be transmitted from the satellite located at 101 degrees.
-
Page 10: Troubleshooting
TROUBLESHOOTING SECTION 4 IMPORTANT! Before performing any warranty work, you must call King Controls for a Service Order Number. SYMPTOM POSSIBLE SOLUTION Controller does not power up. Check: tuner is connected to power supply. controller is connected to tuner. power supply is plugged into 110 VAC outlet. - Page 11 Verify coax cables are tightly crimped with RADIAL (COMPRESSION) style crimps only. Perform OPTION 21 RE-INITIALIZE and 0-RECALIBRATE (pages 10-11). Perform Temperature Calibration. Call King Controls at (800) 982-9920. Inspect all coax cables and verify connections are snug but not overly tight (inside and outside dome unit).
-
Page 12: Option 21 Re-Initialize And 0-Recalibrate
OPTION 21 RE-INITIALIZE AND 0-RECALIBRATE IMPORTANT! You must call King Controls before performing this procedure. Page 10... - Page 13 Page 11...
-
Page 14: Mechanical Calibration
MECHANICAL CALIBRATION IMPORTANT! You must call King Controls before performing this procedure. IMPORTANT! The King-Dome must remain perfectly still during the mechanical calibration. Do not have the vehicle running during the process. The Trac-King must be running. (NOT IN IDLE/HOLD) -
Page 15: Reference
REFERENCE SECTION 5 DEFINITION OF TERMS AZIMUTH: Angle in degrees measured clockwise from Magnetic North (0°). ELEVATION: Angle in degrees measured from the ground plane. Page 13... -
Page 16: Wiring Schematics
WIRING SCHEMATIC: 9760 SINGLE LNB IMPORTANT! The De-stacker is not installed with the 9760 single LNB unit. Page 14... - Page 17 WIRING SCHEMATIC: 9762, 9762-SW DUAL LNB IMPORTANT! The De-stacker must be installed even if only one TV and receiver are used. Page 15...
-
Page 18: Diagnostic Pages
DIAGNOSTIC PAGES SECTION 6 Page 16... - Page 19 DIAGNOSTICS: MAIN MENU Page 17...
- Page 20 DIAGNOSTICS A: AXIS ANGLES Page 18...
- Page 21 DIAGNOSTICS B: BIAS FOR GYROS Page 19...
- Page 22 DIAGNOSTICS D: WIDE SCAN HITS Page 20...
- Page 23 DIAGNOSTICS H: MAGNETIC SENSOR Page 21...
- Page 24 Notes: Page 22...
- Page 25 Notes: Page 23...
-
Page 26: Warranty Consideration Form
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ The following paperwork must be sent to King Controls for warranty reimbursement... - Page 28 Sea-King ® 11200 Hampshire Avenue South, Bloomington, MN 55438-2453 Phone: (800) 982-9920 Fax: (952) 922-8424 www.kingcontrols.com...
