Xtra Seal Smart Sensor ELITE Quick Start Manual

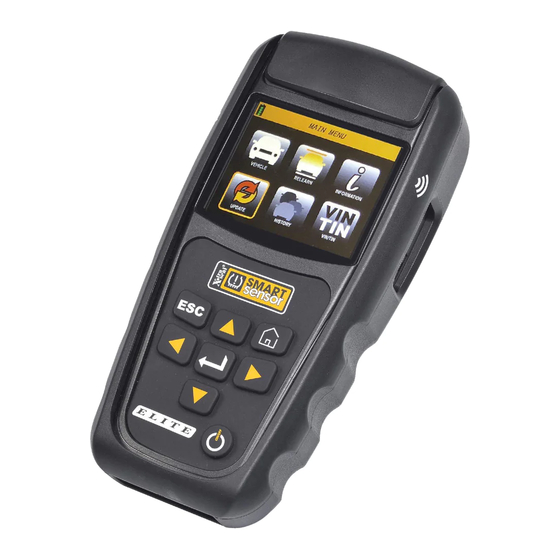

SMART SENSOR ELITE
PROGRAMMING/DIAGNOSTIC TOOL
QUICK START GUIDE
BUTTON
FUNCTIONS
SELECT VEHICLE
From the MAIN MENU, select
select the MAKE /
SCAN SENSOR
After selecting the VEHICLE to be serviced, select
Select /
SINGLE
if all sensors are going to be scanned.
Position either side of the tool
Press to SCAN.
ESC Key
Press to return to the previous menu.
ENTER Key
Press to validate or process function.
HOME Key
Takes you back to MAIN MENU.
POWER ON / OFF
Turns the tool on and off.
ARROW Keys
Use these keys to navigate
through displayed options.
/
VEHICLE
, MODEL /
, if only one sensor is going to be scanned or
against the sidewall of the tire near the sensor.
, then using the directional arrows,
and YEAR /
of the vehicle.
/
SCAN
.
/ ,
MULTIPLE
