Summary of Contents for waveloc Wave-4G

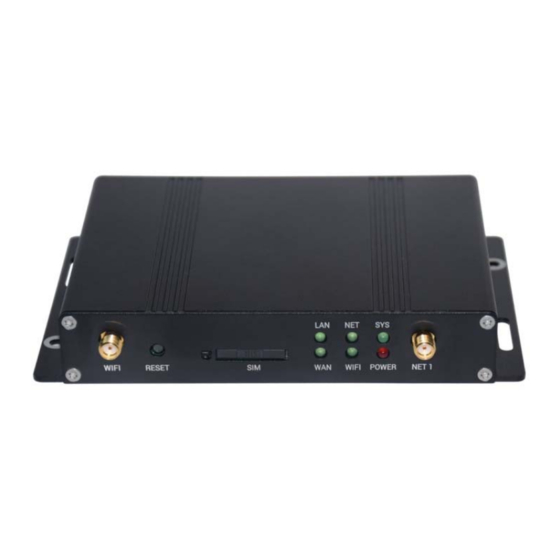

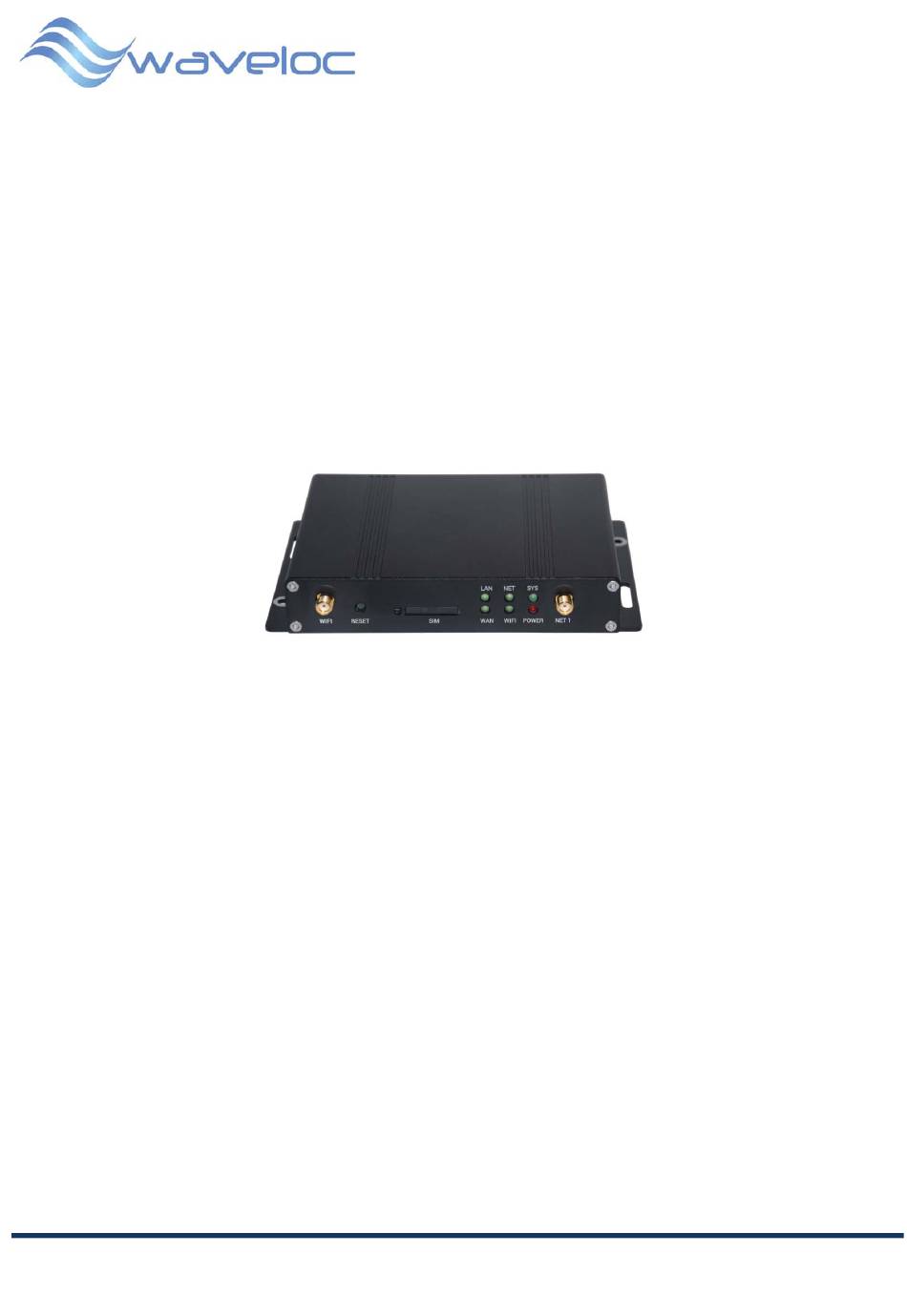

- Page 1 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 1 / 16 Wave‐4G QuickStart Guide Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
-
Page 2: How To Login
Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 2 / 16 WARNINGS! WARNING: The Reset button on the device, does not reboot the router! If you press it, all settings will be lost! WARNING: To insert or extract your SIM card the router must be powered off! Otherwise you may damage the SIM card and/or the device! WARNING: Do not insert the SIM card in the device before you input and save the PIN number in the 4G settings! You may lock your SIM card! 1. How to Login To setup your router you must first login to the Web Interface. Connect your computer to the LAN Port of the router using an Ethernet cable or connect to the Wi‐Fi (waveloc). Open a browser and navigate to “192.168.1.1”. In the login page type “root” in the Username field, and your password in the Password field. The default password is “admin”. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ... - Page 3 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 3 / 16 2. How to change router Password It is recommended to change your router Password for security reasons. To do that, login to the router, in the top menu choose “System” and then “Administration”. In the Administration page type your new password in the “Password” field and re‐type it in the “Confirmation” field. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 4 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 4 / 16 After you finish typing, scroll down the page and click the “Save & Apply” button. When you reboot the router type your new password to login. 3. How to setup your SIM card Before using the 4G modem you must configure the SIM card settings. To do that, login to the router and in the top menu choose “Network” and “Interfaces”. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 5 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 5 / 16 Scroll down to the “4G” interface and in the “Actions” area click on the corresponding “Edit” button. The “4G” Interface configuration page will open. Click on the “General Setup” tab. Scroll down and input the APN, PIN, PAP/CHAP username and password that is given to you by your Telecommunications operator. Note: PIN, PAP/CHAP may be optional. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 6 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 6 / 16 Click the “Save & Apply” button when done. WARNING: Do not insert the SIM card in the device before you input and save the PIN number! You may lock your SIM card! 4. How to auto‐start the modem Next, click on the “Advanced Settings” tab. Make sure the “Bring up on boot” checkbox is selected. Scroll down and click the “Save & Apply” button. When done, reboot the router. WARNING: To insert or extract your SIM card the router must be powered off! Otherwise you may damage the SIM card and/or the device! Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 7 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 7 / 16 5. How to change LAN IP address In many cases you will want to change your LAN IP address or protocol. To do that, login to the router and in the top menu choose “Network” and “Interfaces”. Scroll down to the “LAN” interface and in the “Actions” area click on the corresponding “Edit” button. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 8 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 8 / 16 Form here you will be able to change all settings relating to the LAN interface. Scroll down and click the “Save & Apply” button. When done, reboot the router. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 9 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 9 / 16 6. How to setup a Hotspot (CoovaChilli) If you want to use your router as a WiFi Hotspot, you can either set it up according to your providers settings or contact us at support@waveloc.com in order to get your Hotspot settings for your device. To input your Hotspot settings, login to the router. In the top menu choose “CoovaChilli” and “Configuration”. In the CoovaChilli Configuration page type in the appropriate fields, the settings you received by you provider. If given by us, do not delete or overwrite the rest of the settings. Leave them at their defaults. Scroll down to see all available settings. When done click on the “Save Changes” button. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 10 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 10 / 16 You will receive a message if changes were saved successfully. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 11 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 11 / 16 7. How to enable CoovaChilli In order for your Hotspot to function, the CoovaChilli service needs to be enabled and started. In order to do this, login to the router and in the top menu choose “System” and “Startup”. The startup options page will load. Scroll down until you find “chilli” in the “Initscript” column. Check if the button next to it says “Disabled”. If yes, you need to enable it by clicking on the “Disabled” button. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 12 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 12 / 16 After enabling “chilli”, reboot the router in order for all settings to be applied properly. 8. How to reboot If you need to reboot the router you can either disconnect and reconnect the power supply, or send the reboot command through the Web Interface. To do that, login to the router and in the top menu choose “System” and then “Reboot”. The following page loads. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 13 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 13 / 16 Click on the “Perform reboot” link in the Reboot page and wait for the process to finish. WARNING: The Reset button on the device, does not reboot the router! If you press it all settings will be lost! Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 14 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 14 / 16 9. How to Flash the router firmware If you need to flash the router firmware due to a reset or a firmware upgrade, login to the router and in the top menu choose “System” and “Backup/ Flash Firmware”. The Flash operations page loads. Scroll down to the “Flash new Firmware image” section. Click on the “Choose File” button. In the pop up window locate the firmware file and select it. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 15 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 15 / 16 After you selected the firmware image file, chose if you want to keep the router settings after flashing, by selecting the “Keep settings” checkbox. If unchecked, the router will revert to the firmware default settings. When ready, click the “Flash image…” button. In the Flash verification page, confirm your choices and click “Proceed” to start the process. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
- Page 16 Wave‐4G ‐ QuickStart Guide (1.5.3.1‐English) Page 16 / 16 Wait until the flashing process is finished. 10. OpenWRT ‐ Additional functions – information ‐ support. The Wave‐4G router is an OpenWRT (https://en.wikipedia.org/wiki/OpenWrt, https://openwrt.org/) based system that has been flashed with some custom software packages. We are only able to support our own implementations of OpenWRT. If you decide to install additional packages from the distribution, you are doing it at your own risk and we will not be able to support you. We are at your disposal to answer any questions you may have. Waveloc IT Solutions Ltd. 6 Vasiliou Tsitsani str., Glyfada, 16675, Athens, Greece web: http://waveloc.com ‐ e‐mail: info@waveloc.com – Phone: (+30)2111980092 ...
