TECHNICAL DOCUMENT
Quick Change Tool Post Installation
Product Identification: Quick Change Tool Post Kit (PN 33272)
Purpose: This document details the installation and use of the Quick Change Tool Post Kit on a 15L Slant-PRO
Lathe.

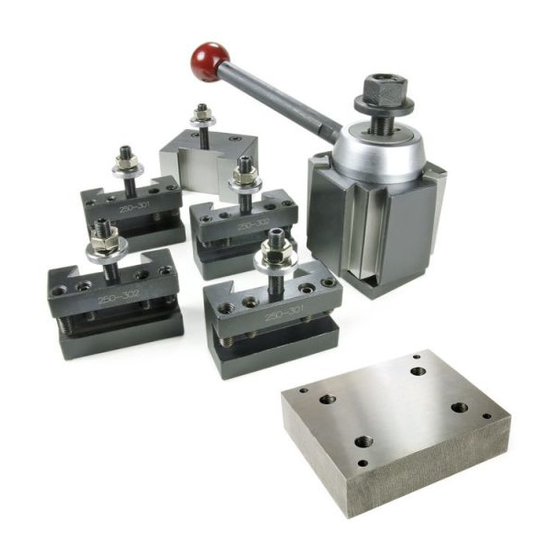

Qty. Quick Change Tool Post Kit
1
Quick Change Tool Post
1
Tool Post Handle
2
#2 Tool Holder for Quick Change Post
2
#1 Tool Holder for Quick Change Post
1
#4 Tool Holder for Quick Change Post
1
Quick Change Tool Mount Plate
4
M8 x 40 mm Socket Head Screw
NOTE: If any of these items are missing, contact Tormach Customer
Service at (608) 849-8381 for a replacement.
Required Tools and Items:
•
Dead-blow hammer
•
Metric hex wrench set
•
Rust preventative
•
Adjustable wrench
•
Magnetic dial test indicator
©Tormach® 2017. All rights reserved.
Specifications subject to change without notice.
TD10246_Tool_Post_Install_0317A
Size
PN
CXA
34129
—
CXA
33124
CXA
33123
CXA
33125
—
33202
—
Page 1
TORMACH.COM
™
Advertisement
Table of Contents
Related Manuals for Tormach 33272
Summary of Contents for Tormach 33272
- Page 1 Quick Change Tool Mount Plate — 33202 M8 x 40 mm Socket Head Screw — NOTE: If any of these items are missing, contact Tormach Customer Service at (608) 849-8381 for a replacement. Required Tools and Items: • Dead-blow hammer •...
- Page 2 3. Position Tool Mount Plate on lathe carriage; using four M8 x 40 mm Socket Head Screws, attach plate to lathe carriage (see Figure 2). Figure 2 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10246_Tool_Post_Install_0317A tormach.com...
- Page 3 (see Figure 4). Screw Tool Post Handle into Tool Post. 6. Match up desired Tool Holder with the desired tool (see Figure 5). Figure 5 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10246_Tool_Post_Install_0317A tormach.com...
- Page 4 8. Adjust Thumb Screw to set Tool Holder height; secure with Stop Nut (see Figure 8). Stop Nut Spring Washer Thumb Screw Figure 8 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10246_Tool_Post_Install_0317A tormach.com...
- Page 5 (see Figure 11). 14. Recheck tool with dial indicator to ensure position did not change following tightening of nut. Figure 11 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10246_Tool_Post_Install_0317A tormach.com...
- Page 6 (see Figure 14). NOTE: Reducer Sleeve (3/4”-1”), located inside the Boring Bar Holder, is included. Figure 14 ©Tormach® 2017. All rights reserved. Tormach, Inc. Specifications subject to change without notice. P: 608.849.8381 / F: 209.885.4534 TD10246_Tool_Post_Install_0317A tormach.com...
