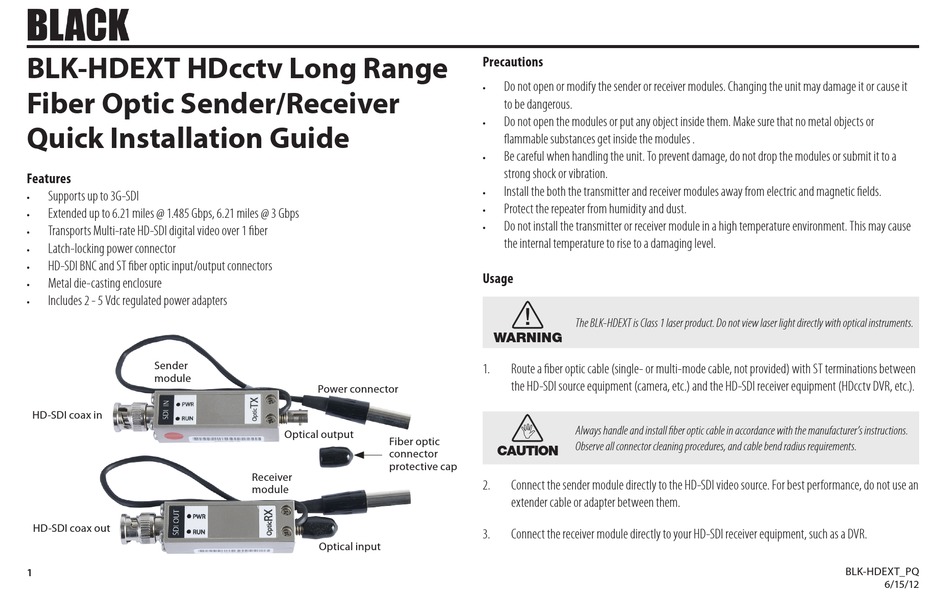

Black BLK-HDEXT Quick Installation Manual

BLK-HDEXT HDcctv Long Range
Fiber Optic Sender/Receiver
Quick Installation Guide
Features
Supports up to 3G-SDI
•
Extended up to 6.21 miles @ 1.485 Gbps, 6.21 miles @ 3 Gbps
•
Transports Multi-rate HD-SDI digital video over 1 fiber
•
Latch-locking power connector
•
HD-SDI BNC and ST fiber optic input/output connectors
•
Metal die-casting enclosure
•
Includes 2 - 5 Vdc regulated power adapters
•

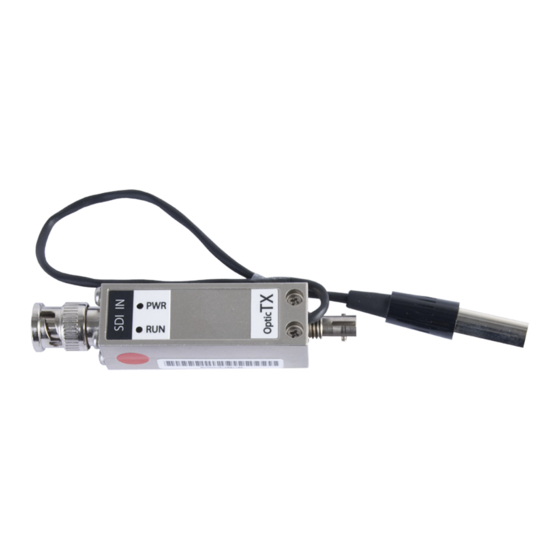

Sender
module
HD-SDI coax in
HD-SDI coax out
1
Power connector
Optical output
Fiber optic
connector
protective cap
Receiver
module
Optical input
Precautions
Do not open or modify the sender or receiver modules. Changing the unit may damage it or cause it
•
to be dangerous.
Do not open the modules or put any object inside them. Make sure that no metal objects or
•
flammable substances get inside the modules .
Be careful when handling the unit. To prevent damage, do not drop the modules or submit it to a
•
strong shock or vibration.
Install the both the transmitter and receiver modules away from electric and magnetic fields.
•
Protect the repeater from humidity and dust.
•
Do not install the transmitter or receiver module in a high temperature environment. This may cause
•
the internal temperature to rise to a damaging level.
Usage
!
The BLK-HDEXT is Class 1 laser product. Do not view laser light directly with optical instruments.
WARNING
1. Route a fiber optic cable (single- or multi-mode cable, not provided) with ST terminations between
the HD-SDI source equipment (camera, etc.) and the HD-SDI receiver equipment (HDcctv DVR, etc.).

Always handle and install fiber optic cable in accordance with the manufacturer's instructions.
Observe all connector cleaning procedures, and cable bend radius requirements.
CAUTION
2. Connect the sender module directly to the HD-SDI video source. For best performance, do not use an
extender cable or adapter between them.
3. Connect the receiver module directly to your HD-SDI receiver equipment, such as a DVR.
BLK-HDEXT_PQ
6/15/12
