Summary of Contents for Vivo 108IP

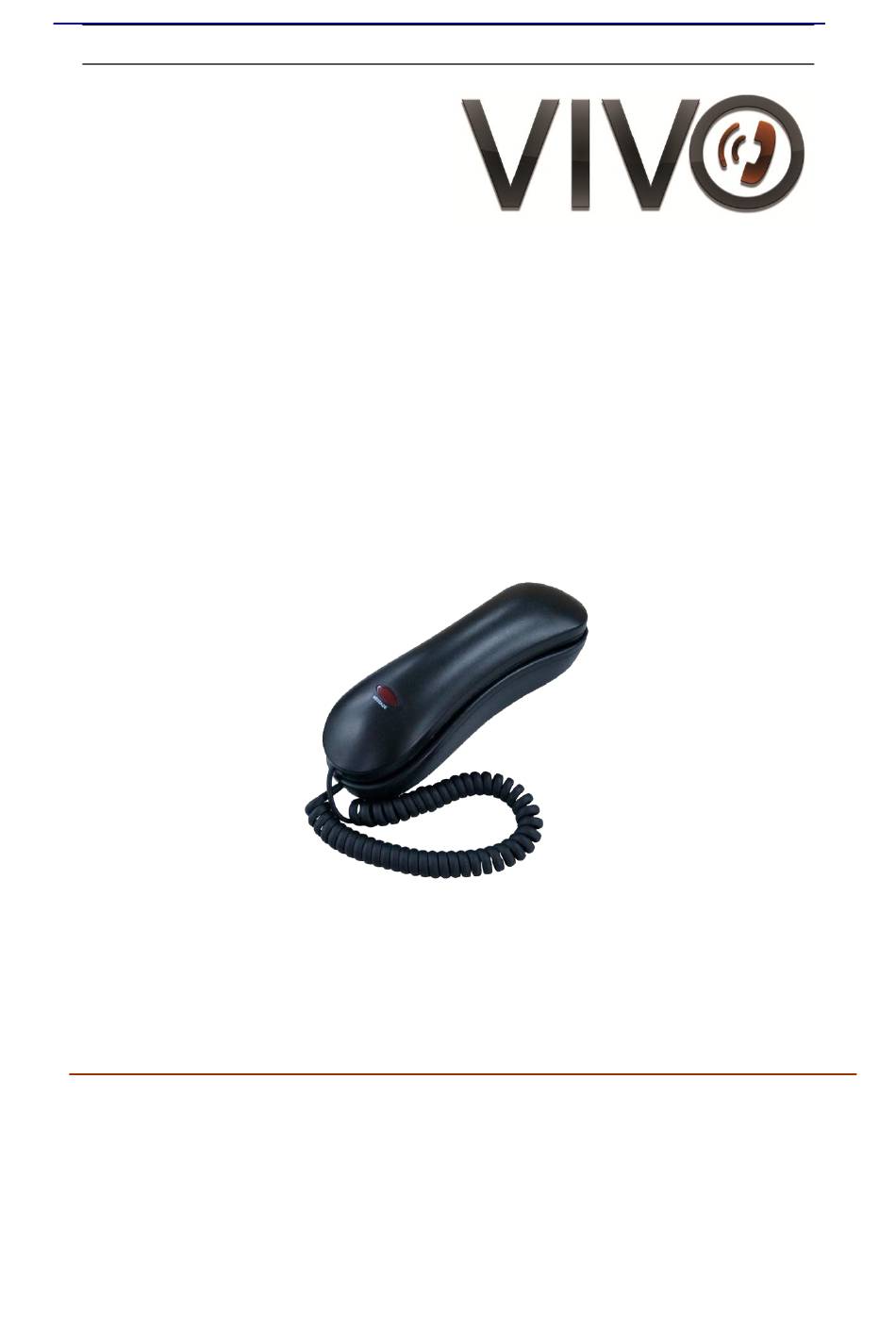

- Page 1 Vivo 108IP Vivo 108IP Hotel Guest Room Telephone User Manual www.hotel-tech.com...
-
Page 2: Table Of Contents
Vivo 108IP Tables of Contents 1.Getting Started ..........................1 Technical Features ........................1 2.Phone overview ..........................2 3. Basic Call Handling ........................3 Do Not Disturb (WEB set >SIP account>Account 1> Do Not Disturb ) ........4 4. Web Settings ..........................5 Configure Guide ........................ -
Page 3: Getting Started
Vivo 108IP 1. Getting Started Technical Features Tips: The following functions in the unit cannot operation, only operate under the WEB. Item Technical Features Language WEB support Multi-language, e.g. Chinese, English, Russian, French etc. Line Function Flash key, Redial key, Number Keys Keys VoIP Protocol SIP 2.0... -
Page 4: Phone Overview
Vivo 108IP 2. Phone overview The unit keys and hardware www.hotel-tech.com... -
Page 5: Basic Call Handling
Note: The bold type of the following text in table signifies the phone's button. Placing a Call Here are some easy ways to place a call on the Vivo 108IP Phone: If you want to... Then…... -
Page 6: Do Not Disturb (Web Set >Sip Account>Account 1> Do Not Disturb )
Vivo 108IP Ending a Call To end a call, hang up. Here are some more details. If you want to... Then... Hang up while using the -- Return the handset to its cradle Handset Do Not Disturb (WEB set >SIP account>Account 1>... -
Page 7: Web Settings
Vivo 108IP 4. Web Settings We can configure IP Phone more easily through web setting... Enter it (for example http://192.168.0.200) into the address bar of web browser...Tips: Please check IP address by pressing the button ‘*1*1*2’in the on hook status. - Page 8 Vivo 108IP After configure the network parameter, press next, then you can configure sip account for the phone. Press Finish, the base configuration of the phone is complete, now you can use the phone to call with sip. www.hotel-tech.com...
- Page 9 Vivo 108IP Network You can configure the network parameters for the phone on the web page. Choose network, you will find the following parameters: Field Description DHCP Configure the phone get IP info from DHCP server IP Address Configure the IP manual for phone...
-
Page 10: Sip Account
Vivo 108IP MAC Address Display the MAC of the phone HTTP Port The default web port is 80,if you change it(for example change it to88), You must use IP and Web port to login the web page (for example http://192.168.0.200:88). It will take effect on next reboot. -
Page 11: Audio
Vivo 108IP Choose one Account, you will find the following parameters: Field Description Enable You can choose on/off to enable/disable the line. Account Mode VOIP Display Name It is showed as Caller ID when making a phone call Username It is a username provide by SIP Server... -
Page 12: Advance
Vivo 108IP 2) Use the navigation keys to highlight the desired one in the Enabled/Disable Codecs list, and press the to move to the other list. 3) Choose Submit to save the change. Of course, you can control the voice bulk in this choose. - Page 13 Vivo 108IP When used Phone Setting option, you can set several parameters as follow: Phone Setting DTMF The DTMF transmitted mode, include RFC 2833,Inband,SIP Info Set Time Mode mode time phone, include SNTP/SIP Server/PSTN/Manual Daylight Saving Enable/disable the DST for the phone...
-
Page 14: Vlan Setting
Vivo 108IP VLAN Setting You can add the phone and PC to different VLAN used VLAN Setting option. When used VLAN Setting option, you can set several parameters as follow: VLAN Setting Enable VLAN You can enable/disable vlan for phone and pc... -
Page 15: Dial Plan Setting
Vivo 108IP VPN Type: There is one choose you can choice. VPN Server Addr VPN server's IP VPN User Name VPN user's name VPN User Name A password be used foe authentication SSL_VPN You can upload VPN configure Dial Plan setting If you want to setup a dial plan, you can click "Dial Plan". -
Page 16: Global Sip
Vivo 108IP Dial Plan ID The ip of a phone which you want to call prefix The number which you need to press actually if you want to call the phone Called Insert There have two option, Enable or Disable. -
Page 17: Phone Maintenance
Vivo 108IP Phone Maintenance If you need to catch a debugging Level log, you need setup on this interface. You can change the password used to login phone GUI in Password option. www.hotel-tech.com... -
Page 18: Password
Vivo 108IP In Password option, you can set several parameters as follow: Password Username The login username of the web page Old Password The old password used to login of the web page New Password The new password used to login of the web page... -
Page 19: Auto Provision
Vivo 108IP Press the ‘Reset to Factory Setting’ option, the phone will load to factory default setting on next reboot. Auto Provision When you open the auto provision function, the phone will auto provision if the phone detect a higher software or kernel which are put on the software server. The detail information about auto provision you can see the appendix. - Page 20 Vivo 108IP When use auto provision, you can set several parameters as follow: Auto Provision Auto Provision You can enable/disable auto provision by select on/off Protocol The protocol use for auto provision, it include tftp/http/ftp Software Server URL The server address of the auto provision...
-
Page 21: Ftp Upgrade
Vivo 108IP Auto Download This used to auto download personal phonebook from server Personal Phonebook Booting Checked This used to checked the auto provision when phone booting Auto Provision This used to set the time interval for auto provision Frequency... -
Page 22: Tftp Upgrade
Vivo 108IP Configuration You can used update/backup to update/backup the configure file of the phone Phone Book You can used update/backup to update/backup the phonebook of the phone EXT Module You can used update/backup to update/backup the expansion of the... -
Page 23: Http Upgrade
Vivo 108IP HTTP Upgrade You can upgrade the software, kernel and configure file for the phone use http. When use http upgrade, you can set several parameters as follow: HTTP Upgrade Select a File Browse the software/kernel/configure file you want to upgrade from... -
Page 24: Reboot
Vivo 108IP Reboot You can use reboot option to reboot the phone. When you press ‘Reboot’, the phone will reboot. Phone Status You can see the currently status of the phone when use Phone Status option. www.hotel-tech.com... -
Page 25: System Info
Vivo 108IP System Info You can see the system information when used System Info option. Attention: www.hotel-tech.com... - Page 26 Vivo 108IP On this interface, you can see the software and kernel which we used for test and this user manual is written base on this software and kernel. This software version is V2.1.7.6-1418 This kernel version is v2.2.9 AES Encryption: AES encryption is used for all the setting files of your phone (include configuration file, Expansion file, Enterprise/Personal Phonebook etc.
