COOKING APPLIANCES
2 & 3 BURNER DROP-IN COOKTOPS,
SLIDE-IN COOKTOPS, 17" & 22" RANGES
17" & 22" RANGES W/ BUILT-IN GLASS COVER
2 BURNER DROP-IN
COOKTOP
RANGE W/ BUILT-IN
GLASS COVER
Technical service information in electronic, digital, video, audio or hard copy format is provided by Airxcel, Suburban Division, Technical
Services Department to be used only by professional, qualified service technicians.
This information is provided to you, as a professional service technician, only. You are not authorized to share or duplicate this
information. You may not reproduce or transmit, in whole or in part, any of this information in any form or by any means (electronic,
mechanical, photocopying, recording, or otherwise) without prior written permission of Suburban Manufacturing.
SLIDE-IN COOKTOP
17" RANGE
AIRXCEL, INC. - SUBURBAN DIVISION
Information published in this manual is subject to change without notice.
TRAINING MANUAL
LEFT
FRONT
RIGHT
SERVICE and
MODELS:
This manual covers
multiple models.
FOR RECREATIONAL
VEHICLE USE ONLY
3 BURNER DROP-IN
COOKTOP
22" RANGE
205613
05-31-2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

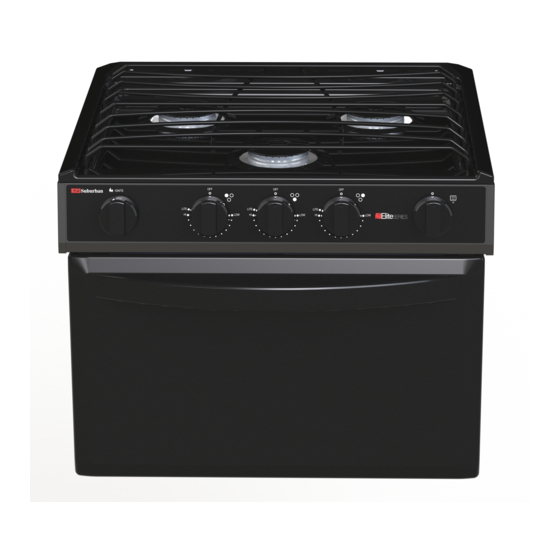

Summary of Contents for Airxcel Suburban SRNA3SBBE
- Page 1 GLASS COVER 17” RANGE Technical service information in electronic, digital, video, audio or hard copy format is provided by Airxcel, Suburban Division, Technical Services Department to be used only by professional, qualified service technicians. This information is provided to you, as a professional service technician, only. You are not authorized to share or duplicate this information.
-
Page 2: Table Of Contents
TABLE OF CONTENTS PAGE Introduction ......................3 Model Variations, Descriptions and Serial Number Location ......... 4 Range and Cooktop Model Numbers ..............5 Slide-In Cooktop Model Numbers................7 Drop-In Cooktop Model Numbers ................8 INSTALLATION INSTRUCTIONS Slide-In Cooktops and Ranges ..............9 Drop-In Cooktops .................. -
Page 3: Introduction
In addition to the information available in this manual, other resources for servicing Suburban RV appliances include our website - www.AIRXCEL.com, our Factory Service Department Hotline at 423-775-2131 EXT 7102, and our Customer Service Department at 423-775-2131 EXT 7101. -
Page 4: Model Variations, Descriptions And Serial Number Location
Replacement parts can be ordered through your local dealer or Suburban Service Center. To obtain information on locating a local service agency, call AIRXCEL, INC. - Suburban Division Customer Service Department, 423-775-2131, EXT 7101 or Fax: 423-775-7015. -
Page 5: Range And Cooktop Model Numbers
RANGE AND COOKTOP MODEL NUMBERS 17” AND 22” CONVENTIONAL BURNER MERCURY FREE CONTROL RANGES Model Oven Number Burners Height Porcelain Door Ignition SRNA3SBBE 17” Black Black Piezo SRNA3SBBM 17” Black Black Match Black w/ SRNA3SBGE 17” Black Piezo Glass Black w/ SRNA3SBGM 17”... - Page 6 RANGE AND COOKTOP MODEL NUMBERS 17” AND 22” CONTEMPORARY CONVENTIONAL BURNER RANGES Model Oven Number Burners Height Porcelain Door Ignition OPEN SRNA3SBVEZ 17” Black Piezo GLASS OPEN SRNA3LBVEZ 22” Black Piezo GLASS DOOR GLASS Black with SRNA3SBUEZ 17” Black Nickel Piezo Handle Black with...
-
Page 7: Slide-In Cooktop Model Numbers
SLIDE-IN COOKTOP MODEL NUMBERS SLIDE - IN COOKTOPS - CONVENTIONAL BURNERS Model Number Burners DESCRIPTION Ignition SCN3BM Slide-in, Black Match SCN3BE Slide-in, Black Piezo LEFT FRONT RIGHT SCNA3PS Slide-in, Stainless Spark SLIDE - IN COOKTOPS - SEALED BURNERS Model Number Burners DESCRIPTION Ignition... -
Page 8: Drop-In Cooktop Model Numbers
DROP-IN COOKTOP MODEL NUMBERS DROP - IN COOKTOPS Model Number Burners DESCRIPTION RV Drop-In Cook Top (Burner Box Only) SDN2 RV Drop-In Cook Top with Stainless Top SDN2SS RV Drop-In Cook Top with Black Top SDN2BK RV Drop-In Cook Top with White Top SDN2WH SDN2 Stainless Steel (Top Only) SDN2-SS... -
Page 9: Installation Instructions
INSTALLATION The minimum vertical distance to combustible material above the range cooking top is 24 inches, provided the overhead construction does not extend 13 inches from the INSTRUCTIONS rear wall. NOTE: UL and cUL certified with a minimum top clearance of 19 1/2” to overhead SCN(S) and SRN(S)A combustible construction when installed with a range hood spaced a minimum of 1/4”... -
Page 10: Drop-In Cooktops
17” AND 22” RANGES WITH BUILT-IN GLASS COVER INSTALLATION WARNING: Installation of this appliance must be made in accordance with the written instructions provided in this manual. No agent, representative or employee of Suburban or other person has the authority to change, modify or waive any provision of the instructions contained in this manual. - Page 11 BACK WALL MOUNTING SURFACE (COUNTER TOP) MUR ARRIERE SURFACE DE MONTAGE (PLAN DE TRAVAIL) 9.000 OF BURNER DU BRULEUR 6.000 C L OF BURNER DU BRULEUR MIN. DIM. TO EITHER SIDE WALL DEGAGEMENT DE SECURITE - MUR LATERAL (2 COTES) GAS SERVICE PIPE OPENING TROU POUR CANALISATION DE GAZ MIN.
- Page 12 INSTALLATION 6. Be sure all openings in the cabinets around the gas line are sealed at time of installation. INSTRUCTIONS CAUTION: It is imperative that the cabinet in which the cook top is placed be separated from other appliances so that the combustion air supply to the top burners can not be affected in any SDN2 •...
- Page 13 SDS2 INSTALLATION 9. Be sure all openings in the cabinets around the gas line are sealed at time of installation. INSTRUCTIONS 10. Be sure burner knobs are in “OFF” position. Turn on gas supply. Check all connections for leaks according to the manufacturer's instructions. Ensure that the gas connection point is accessible with the appliance installed.
- Page 14 OPERATING INSTRUCTIONS 3. If any burner should extinguish after initial lighting or due to accidental blow-out, turn gas off by turning control knob clockwise to “OFF”, wait five (5) minutes WARNING before attempting to relight the burner. Failure to follow these instructions could result in a fire or explosion.
- Page 15 SDS2 SERVICE INSTRUCTIONS Installation and service must be performed by a qualified installer, service agency or the gas supplier. WARNING Before beginning any service of cooktop, the gas supply to the appliance must be in the OFF position. WARNING DO NOT MODIFY THIS APPLIANCE. VALVE AND MANIFOLD ASSEMBLY BURNERS, ORIFICES, THERMOCOUPLES, AND ELECTRODES...
- Page 16 BATTERY HOLDER 14.531 [369] GAS CONNECTION 4.455 [113] 18.813 [478] 12VDC TERMINAL CONNECTION 12VDC Ignition Module Touch-Safe Terminal Block 12 VDC IN Electrode 1 (FIELD WIRING) (FACTORY WIRING) Electrode 2 Ignition Switch...
-
Page 17: Cooking Appliance Terminology
COOKING APPLIANCE TERMINOLOGY TERMINOLOGY DEFINITION CSA ..............Canadian Standards Association – International UL ..............Underwriters Laboratories CUL ..............Underwriters Laboratories Canada PILOT THERMOCOUPLE ........ A bimetal probe which generates a small electrical current when heat is applied to it OVEN PILOT ............ The oven pilot burner that continually heats the thermocouple and furnishes the ignition source for the main oven burner. -
Page 18: Manifold Identification Information
MANIFOLD IDENTIFICATION Sabaf (Round) Manifold with plug-in thermocouple Original mercury free system (Ranges with an A in the model number). Used exclusively in all Suburban • mercury free ranges from 2004 through 2006. Used concurrently with the square manifold system (BSI) from late 2006 through early 2009. •... -
Page 19: Burner Identification Information
SUBURBAN TOP BURNER IDENTIFICATION INFORMATION MUELLER SI - CURRENT In 2013, Suburban began a transition on stove top burners. All ranges currently have the low profile conventional burners (SI version). The burners shown above must be replaced with respective burner. They are not backwards compatible. -
Page 20: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE FOR SUBURBAN RANGES - OVEN - PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION A. Insufficient Gas Supply PILOT WON’T LIGHT A. Inspect Gas Supply B. Check for gas leaks and correct gas pressure (11 B. Insufficient Gas Pressure W.C. - 14 W. C. C. -
Page 21: Slide-In And Drop-In Cooktops
TROUBLE SHOOTING GUIDE FOR SUBURBAN RANGES - RANGE ASSEMBLY - PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION OVEN DOOR WON’T STAY CLOSED A. Hinge spring too loose (sprung) A. Replace door hinge assemblies Inspect hinge foot connection to oven frame, adjust as required by lifting door from bottom and B. -
Page 22: Operating Instructions
OPERATING INSTRUCTIONS A. TOP BURNERS B. OVEN OPERATING INSTRUCTIONS Know which knob controls which burner. Always be sure the correct NOTE: Before the oven burner will operate, the oven pilot must be lit. Lighting Oven Pilot: burner is turned on. Depress knob and turn counter-clockwise to “Lite”... -
Page 23: Warranty Information
Transportation of the RV to and from the Service Center and/or travel expenses of the Service Center to your location is the responsibility of the owner/user. A current listing of recommended service center may be obtained from Suburban’s website: www.AIRXCEL.com. If you cannot locate a recommended service center locally, the service agency chosen to perform warranty repairs must contact our Service Department at 423-775-2131 for authorization before making repairs. - Page 24 AIRXCEL, INC. - SUBURBAN DIVISION 676 Broadway Street | Dayton, Tennessee 37321 | 423-775-2131 • Fax: 423-775-7015 www.Airxcel.com | Email: SMCSales@SuburbanMfg.com...
- Page 25 This manual has been provided courtesy of My RV Works, Inc. www.myrvworks.com You can find more RV service manuals here: www.myrvworks.com/manuals Over the years of running a mobile RV repair service, having a dedicated place to access service manuals for all the different appliances and components found on RVs was something that I always had a desire to create.
