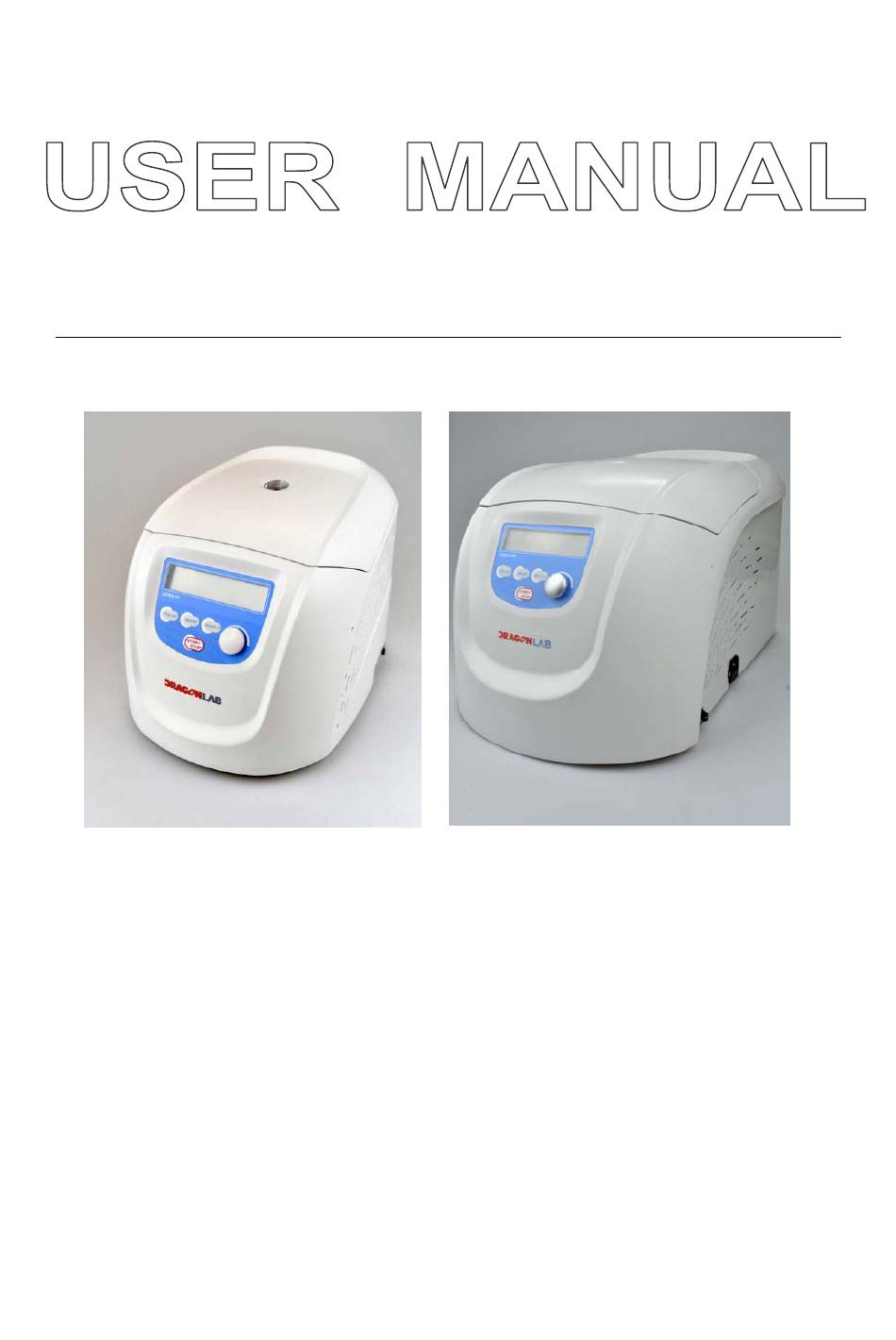

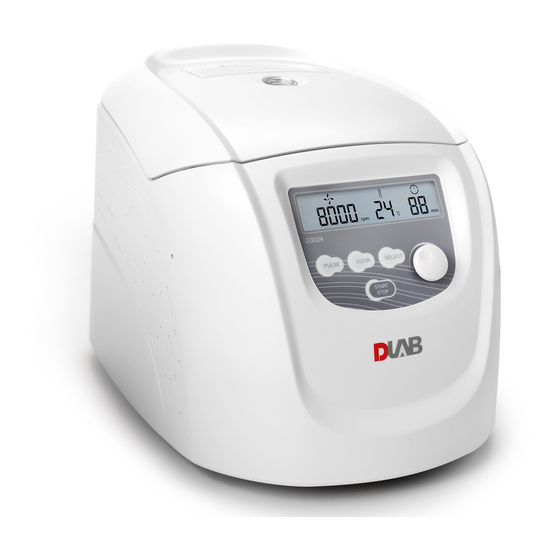

DLAB Laboratory Instruments D3024 User Manual

DLAB Laboratory Instruments D3024 User Manual

High speed (refrigerated) micro-centrifuge

Advertisement

D3024 & D3024R
High Speed (Refrigerated) Micro-Centrifuge
Dragon Laboratory Instruments Limited
www.dragon-lab.com
Before using this centrifuge, please carefully read this user manual for its efficient operation and
your safety.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D3024 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DLAB Laboratory Instruments D3024

  • Page 1 D3024 & D3024R High Speed (Refrigerated) Micro-Centrifuge Dragon Laboratory Instruments Limited www.dragon-lab.com Before using this centrifuge, please carefully read this user manual for its efficient operation and your safety.
  • Page 2: Table Of Contents

    High Speed (Refrigerated) Micro-Centrifuge Contents Copyright…….………………………………………………………………………………….….….… 2 Safety reminder…….…………………………………………………………………………………..…3 1. Specifications…………………………………………………………………………………………...6 2. Declaration of Conformity…………………………………………………………………………..…6 3. Required operational conditions………………………………………………………………….…..7 3.1 Basic operational conditions…………………………………………………………………………..…7 3.2 Transport and storage conditions………………………………………………………………….…..7 4. Installation……………………………………………………………………………………………..…7 4.1 Location…………………………………………………………………………………………….……7 4.2 Connection of the power cord and grounding……………………………………………………….…..8 5.
  • Page 3: Copyright

    High Speed (Refrigerated) Micro-Centrifuge 12. Calculate RCF………………………………………………………. ………………………….….…25 13. Ordering information …………………………………………………………………………..……25 14. Guarantee.………………………………………………………………………………….….………26 14.1 Guarantee of centrifuge……………………………………………………………………….………26 14.2 Guarantee of the rotor…………………………………………………………………….………..…26 After-sales service……………………………………………………………………………….…...…..26 Copyright: No part of this manual may be reproduced or transmitted without prior written permission of DRAGONLAB.
  • Page 4: Safety Reminder

    High Speed (Refrigerated) Micro-Centrifuge Safety Reminder Common safety precautions Carefully read the following safety precautions for a thorough understanding. Follow the instructions and procedures described in this manual to operate this centrifuge safely. Carefully read all safety messages in this manual and the safety instructions on the instrument. Safety messages are labeled as indicated below.
  • Page 5 High Speed (Refrigerated) Micro-Centrifuge WARNING: This centrifuge is not explosion-proof. Never use explosive or flammable samples. Do not install the centrifuge in or near places where inflammable gases are generated or chemicals are stored. Do not place dangerous material within 30cm around the centrifuge. Make sure to prepare necessary safety measures before using samples that are toxic, radioactive or contaminated with pathogenic micro-organisms at your own responsibility.
  • Page 6 High Speed (Refrigerated) Micro-Centrifuge Ensure to remove any objects and fragments of the tubes dropped inside the rotor chamber before running this centrifuge. Cautions on rotors 1) Always check for corrosion and damages on the rotor surface before using it. Do not use the rotor or bucket if such abnormality found.
  • Page 7: Specifications

    110V-120V, 50Hz/60Hz, 5A Power requirements D3024R: Single-phase, 220V-240V, 50Hz/60Hz, 10A. 110V-120V, 50Hz/60Hz, 10A D3024:(L)280×(W)364×(H)266 Dimensions(mm) D3024R:(L)338×(W)580×(H)324 D3024: 12kg Weight D3024R: 30kg Speed/RCF switch、Pulse operation、Processing Additional features display、Voice reminder Construction in accordance with the following safety standards: EN 61010-1 EN 61010-2-10...
  • Page 8: Required Operational Conditions

    High Speed (Refrigerated) Micro-Centrifuge 3. Required Operational Conditions 3.1 Basic operational conditions (1)Power: D3024: Single-phase, 220V-240V, 50Hz/60Hz, 5A; 110V-120V, 50Hz/60Hz, 5A D3024R: Single-phase, 220V-240V, 50Hz/60Hz, 10A; 110V-120V, 50Hz/60Hz, 10A (2)Ambient temperature: 2℃-40℃. (3)Relative humidity: ≤80%. (4)No vibration and airflow around.
  • Page 9: Connection Of The Power Cord And Grounding

    (2)An over 10A outlet which has a good ground is required, and meet with local safety requirements to ensure its earth terminal is properly. 5. Structure D3024 Door lock hook Seal ring of door Cover Operation panel POWER switch Figure 5.1 D3024 Front view of centrifuge...
  • Page 10 High Speed (Refrigerated) Micro-Centrifuge View Door Air vents Outlet Figure 5.2 D3024 Rear view of centrifuge D3024R Door lock hook Seal ring of door Cover Outlet Operation panel POWER switch Figure 5.3 D3024R Front view of centrifuge...
  • Page 11: Operation Panel

    High Speed (Refrigerated) Micro-Centrifuge View Door Air vents Figure 5.4 D3024R Rear view of centrifuge 6. Operation panel Speed display area Temperature display area Time display area 15000 ℃ (1) (2) (5) (4) (3)...
  • Page 12 ℃ Figure 6-2 The main interface (D3024) Main interface of D3024 model is as figure 6-2. The speed is set to be 15000rpm, temperature of centrifugal chamber is 25 , ℃ and the running time is12 minutes. When speed symbol is rotating, indicating the centrifuge is running, the rotation is faster, the speed is higher.
  • Page 13: Rotor Preparation

    High Speed (Refrigerated) Micro-Centrifuge 15000 ℃ Figure 6-3 The main interface (D3024R) Main interface of D3024R model is as figure 6-3. The speed is set to be 15000rpm, temperature of centrifugal chamber is 4 , ℃ and the running time is 12 minutes. When speed symbol is rotating, indicating the centrifuge is running, the rotation is faster, the speed is higher.
  • Page 14: Symmetrically Load Centrifuge Tubes In Rotor

    High Speed (Refrigerated) Micro-Centrifuge CAUTION: ● Any abnormality such as corrosion or scratches are found, stop using the rotor and contact our service center. ● Only manufacturer’s rotors which claimed can be used with the unit. Check the rotor and bucket for corrosion or scratch before using. 7.5 Symmetrically load centrifuge tubes in rotor CAUTION: Make sure the rotor door is securely fixed on the rotor, rotor and shaft are tightened.
  • Page 15 High Speed (Refrigerated) Micro-Centrifuge After self-checking, instrument will display accumulative running time, see figure below: 00312 Figure Accumulative running time interface The figure indicates the instrument has accumulated running time 312 hours 56 minutes and 45 seconds, and then the instrument displays the last running parameters. 15000 ℃...
  • Page 16 High Speed (Refrigerated) Micro-Centrifuge CAUTION: Load the rotor on the shaft to ensure rotor is in position until it contacts with the shaft, and tighten the screw to connect firmly the rotor with shaft, otherwise the rotor maybe move off to damage the centrifuge. Should be confirmed the rotor lid is firmly tightened with rotor.
  • Page 17 High Speed (Refrigerated) Micro-Centrifuge speed up parameter changing. There is a circulating function to increase/ decrease parameters. Clockwise rotate parameter button , values circulate from small → large → maximum → minimum. counter-clockwise rotate parameter button , values circulate from large → small → minimum →...
  • Page 18: Rcf Operation

    High Speed (Refrigerated) Micro-Centrifuge 8.1.4 End the operation (1)The centrifuge will brake when it reaches the setting time or button is pressed. When the rotor stops rotating, centrifuge will start beeping to alarm the operation was over. (2)Open the door The door can be released automatically when the operation was over.
  • Page 19: Maintenance

    High Speed (Refrigerated) Micro-Centrifuge (2)The centrifuge gets into preparation mode and displays last running parameters. (3) Press knob and hold, speed up to reach the maximum speed. While release knob during acceleration, the centrifuge will start to decelerate and stop. 9.
  • Page 20: Consumables

    High Speed (Refrigerated) Micro-Centrifuge detach the rotor door and upside the rotor down to dry the tube holes. If a sample is leaked in the rotor, rinse the rotor with water. Apply a thin coat of silicon grease to the rotor when it is completely dried. The rotor should be regular maintenance, recommend to cleaning it each 3 months to ensure tube and rotor holes keep clean, and then apply a thin coat of silicon grease.
  • Page 21: Routine Inspection

    High Speed (Refrigerated) Micro-Centrifuge make it contact enough with the slot bottom and bond firmly. (3)Place for 20 minutes and waiting for the glue to completely solidified. 9.4 Routine inspection 1)Check that if the centrifuge is on a firm、flat and level table, ensure the four feet stand on the table firmly.
  • Page 22: How To Open The Door

    Insert a screw driver into the two holes and push forward to release the door. 10.3 Replace fuses (1)There are two fuses of D3024, 250V, 5A time-delay type , size: Ф5×20. There are two fuses of D3024R, 250V, 10A time-delay type , size: Ф5×20.
  • Page 23: Instructions Of Rotor And Tube

    High Speed (Refrigerated) Micro-Centrifuge 11. Instructions of rotor and tube CAUTION: ● Read the instructions thoroughly, correct use rotor. ● Do not exceed the allowable maximum speed of rotor、tube and adapters etc., be care that the allowable maximum speed of some adapters are lower than the rotor’s. 11.1 The rotor instructions 11.1.1 Rotor structure Knob...
  • Page 24: Tubes

    High Speed (Refrigerated) Micro-Centrifuge 0.2ml PCR tube 15000 17350 A02P2 0.5ml micro 19100 A05P2 15000 tube AS36-05 0.5ml micro 21380 15000 tube PCR8 serial 15000 19100 A02P05 tube AS4-PCR8 PCR8 serial 6.5/7.2 16350/18100 tube 11.1.3 Notice (1) The centrifuge rotor can separate sample which density lower than 2.0g/ml, if the samples density is over 2.0g/ml, please calculate allowable speed depending on the following formula.
  • Page 25 High Speed (Refrigerated) Micro-Centrifuge Alkaline(higher than pH9 ) Cleaning fluids Alkaline(pH9 or lower) Neutral(pH7) Warm water(up to 70 ) ℃ Ultrasonic Neutral detergent(pH7) cleaning 115℃(0.7kg/cm )30minutes Autoclaving 121℃(1.0kg/cm )20 minutes 126℃(1.4kg/cm )15 minutes Boiling 15 to 30 minutes Ultraviolet 200-300nm sterilization Gas sterilization Ethylene oxide...
  • Page 26 UK plug, 220V/50Hz/60Hz Accessories Rotor kits with cover, fixing clips and O'ring, 15000rpm, 19400002 AS24-2 2ml*24, used with D3024 & D3024R Rotor kits with cover, fixing clips and O'ring, 15000rpm, 19400003 AS36-05 0.5ml*36, used with D3024 & D3024R Rotor kits with cover, fixing clips and O'ring, 15000rpm,...
  • Page 27 High Speed (Refrigerated) Micro-Centrifuge 0.2ml rotor adapter, used with A12-2 & AS24-2 rotors, 19500001 A02P2 24pcs/pk 0.5ml rotor adapter, used with A12-2 & AS24-2 rotors, 19500002 A05P2 24pcs/pk 19500003 A02P05 0.2ml rotor adapter, used with AS36-05 rotor,36pcs/pk 14.Guarantee 14.1 Guarantee of centrifuge This centrifuge is guaranteed for two years from the date of delivery provided that it has been operated and maintained properly.
  • Page 28 High Speed (Refrigerated) Micro-Centrifuge E-mail: info@dragon-lab.com Service: service@dragon-lab.com Website: Http://www.dragon-lab.com US office DRAGONLAB, LLC 500 Four Rod Road, Suite 122, Berlin, CT 06037 USA Tel: 1-860-828-5289 Fax: 1-860-828-5389 E-mail: info@dragonlabusa.com...

This manual is also suitable for:

D3024r
