Summary of Contents for Directed Somatik Labs SLS-IRCT30

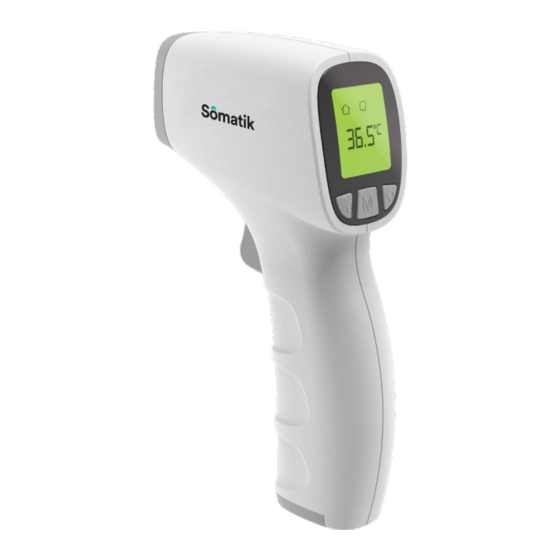

- Page 1 SLS-IRCT30 Handheld Infrared Contactless Thermometer USER MANUAL...
-
Page 3: Table Of Contents
CONTENTS BEFORE USE ............3 SAFETY PRECAUTIONS .......... 3 PACKAGE CONTENTS ..........4 NORMAL BODY READING TEMPERATURE..... 4 Variation in body temperature ......5 PRODUCT DESCRIPTION ........5 Overview .............5 Operating principle ..........5 Intended use ............5 Features ..............6 PRODUCT OVERVIEW ..........7 Interface overview ..........7 SOUND &... - Page 4 REPLACING BATTERIES ........14 10.0 CLEANING ............15 11.0 MAINTENANCE ............ 15 12.0 TROUBLESHOOTING ..........16 13.0 SPECIFICATIONS ........... 17 13.1 Guidance and manufacturer's declaration - Electromagnetic emission - for all equipment and systems ............18 13.2 Guidance and manufacturer's declaration - Electromagnetic immunity - for all equipment and systems ............19 13.3 Guidance and manufacturer's declaration -...
-
Page 5: Before Use
BEFORE USE The Somatik Labs SLS-IRCT30 Contactless Thermometer has been carefully developed for accurate, safe and fast temperature measurements. As with any thermometer it is important to follow the included instructions to ensure accurate temperature readings. Please open and check the contents carefully before use and perform all installation and operating instructions as per this user manual. -
Page 6: Package Contents
WARNINGS & DISCLAIMERS • The thermometer is not intended to diagnose or treat any health problem, measurement results are for reference only. • It is dangerous to make a self-diagnosis or self- treatment based on the obtained measurement results. For such purposes, please consult a physician or other medical professionals. -
Page 7: Variation In Body Temperature
VARIATION IN BODY TEMPERATURE Normal body temperature varies by the time of day and is also affected by external factors. The body temperature of an individual is the lowest between 2:00 a.m. and 4:00 a.m. and the highest between 14:00 p.m. and 20:00 p.m. An individual's body temperature typically changes by less than 1°C each day. -
Page 8: Features
FEATURES SAFE TO OPERATE • Passive infrared receiving technology. • Non-contact measurement, to prevent cross- infection. EASY OPERATION • Handheld design, easy operation. • One-click automatic temperature measurement. QUICK RESPONSE • 1 second measurement. HIGH ACCURACY • Advanced infrared temperature sensor, with high sensitivity. -
Page 9: Product Overview
PRODUCT OVERVIEW 1. IR sensor 6. Mode button 2. Power-on trigger / 7. Celsius / Fahrenheit Measure trigger Switch button 3. Battery cover 8. Handgrip 4. LCD display 5. Mute / Un-mute button INTERFACE OVERVIEW 1. Object temperature mode 2. Body temperature mode 3. -
Page 10: Sound & Lcd Colour Indicator
SOUND & LCD COLOUR INDICATOR FOREHEAD TEMPERATURE RANGE SOUND SCREEN COLOUR ºC ºC 1 long beep Green 34.9 - 37.5 ºF ºF 94.8 - 99.5 ºC ºC 3 short double 37.6 - 42.2 beeps ºF ºF 99.6 - 108.0 OBJECT TEMPERATURE RANGE SOUND SCREEN COLOUR... -
Page 11: Display And Operating Instructions
DISPLAY AND OPERATING INSTRUCTIONS MEASURING BODY TEMPERATURE Screen Description Audio & Display Visual Alert In a power-off state, point See the the IR sensor to the center table in the of the forehead. Move the “Sound and thermometer towards the LCD Colour forehead. -
Page 12: Out Of The Measuring Range Display
OUT OF THE MEASURING RANGE DISPLAY Screen Description Audio & Display Visual Alert In Object mode, a A long temperature reading of beep with more than 100ºC (212.0ºF) green LCD colour for 3 In Body Temperature seconds. mode, a temperature reading of more than 42.2ºC (108.0ºF) In Object mode, a... -
Page 13: Switching Between Forehead Temperature & Object Temperature
SWITCHING BETWEEN FOREHEAD TEMPERATURE & OBJECT TEMPERATURE Screen Description Audio & Display Visual Alert In a power-on state, Silent press the Mode button to switch between forehead temperature and object temperature SWITCHING BETWEEN MUTE AND UN-MUTE Screen Description Audio & Display Visual Alert In a power-on state, press... -
Page 14: Change Default Fever Alert Threshold Settings
Screen Description Audio & Display Visual Alert Silent Press the ºC/ºF or the button, 1 will be shown, followed by the recorded reading. Press the “ºC/ºF button” again for the next recorded data. 2 will be shown, followed by the recorded reading. -
Page 15: Error Information & Low Battery
ERROR INFORMATION & LOW BATTERY Screen Description Audio & Display Visual Alert The ambient temperature A long beep is higher than 40.0ºC and a red (104.0ºF) or lower than backlight for 10.0ºC (50.0ºF). 3 seconds. The recording was not A long beep complete. -
Page 16: Replacing Batteries
• When taking the object temperature, Point the IR sensor to the center of the object. The distance between the thermometer and the object must be . Press and release the Trigger 1-5 cm (½” to 2”) button. The object temperature will be displayed on the screen. -
Page 17: Cleaning
NOTES: • Make sure that the batteries are installed correctly. Otherwise, the thermometer may be damaged. • Batteries of a same type should be used. Dispose the used batteries in accordance with the local environmental policies. • The thermometer is provided with batteries already installed. -
Page 18: Troubleshooting
2. Store the thermometer in a dry, dust-free, and well- ventilated place. Make sure that the thermometer is not exposed to sunlight. Make sure that the storage and transportation environments meet the requirements. 3. Remove the batteries if the thermometer will not be used for more than two months. -
Page 19: Specifications
TEMPERATURE READING IS HIGHER THAN THE TYPICAL BODY TEMPERATURE RANGE Possible Cause: 1. The temperature probe is damaged. Solution: 1. Please contact our service team. 13.0 SPECIFICATIONS Product Name Infrared Thermometer Product Model SLS-IRCT30 Operating Voltage DC 3V Battery Model AAA x 2 Display Segment LCD... -
Page 20: Guidance And Manufacturer'sdeclaration - Electromagnetic Emission - For All Equipment And Systems
Operating Temperature: 10°C–40°C (50°F–104°F) Environment Humidity: 15%–95% RH, non- condensing Atmospheric pressure: 86–106 kPa Storage and Temperature: -20°C to 55°C Transportation (-4°F–131°F) Humidity: 0–95% RH, non-condensing Atmospheric pressure: 50–106 kPa The infrared thermometer has been tested and conforms to the standard ASTM E1965-98. ASTM laboratory accuracy requirements in the display range of 98°F to102°F (37°C-39°C) for skin IR thermometers is ±0.5°F (±0.3°C). -
Page 21: Guidance And Manufacturer'sdeclaration - Electromagnetic Immunity - For All Equipment And Systems
13.2 GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY - FOR ALL EQUIPMENT AND SYSTEMS Guidance and manufacturer's declaration - Electromagnetic immunity The Infrared Thermometer SLS-IRCT30 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer SLS-IRCT30 should assure that it is used in such an environment. -
Page 22: Guidance And Manufacturer'sdeclaration - Electromagnetic Immunity - For Equipment And Systems That Are Not Life Supporting
13.3 GUIDANCE AND MANUFACTURER'S DECLARATION - ELECTROMAGNETIC IMMUNITY - FOR EQUIPMENT AND SYSTEMS THAT ARE NOT LIFE SUPPORTING Guidance and manufacturer's declaration - Electromagnetic immunity The Infrared Thermometer SLS-IRCT30 is intended for use in the electromagnetic environment specified below. The customer or the user of the Infrared Thermometer SLS-IRCT30 should assure that it is used in such an environment. - Page 23 NOTE: • At 80 MHz and 800 MHz, the higher frequency range applies. • These guidelines may not apply in all situations. Electromagnetic is affected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted...
- Page 24 13.4 RECOMMENDED SEPARATION DISTANCES BETWEEN PORTABLE AND MOBILE RF COMMUNICATIONS EQUIPMENT AND THE EQUIPMENT OR SYSTEM - FOR EQUIPMENT AND SYSTEMS THAT ARE NOT LIFE SUPPORTING The Infrared Thermometer SLS-IRCT30 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
-
Page 25: Warranty Terms & Conditions
The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you. Email: service@somatiklabs.com... -
Page 26: Indemnity
14.1 INDEMNITY YOU AGREE TO DEFEND, INDEMNIFY AND HOLD HARMLESS SOMATIK LABS AND ITS SUBSIDIARIES AND AFFILIATES FROM AND AGAINST ANY AND ALL CLAIMS, PROCEEDINGS, INJURIES, LIABILITIES, LOSSES, COSTS AND EXPENSES (INCLUDING REASONABLE LEGAL FEES), INCLUDING BUT NOT LIMITED TO, CLAIMS ALLEGING NEGLIGENCE, INVASION OF PRIVACY, COPYRIGHT INFRINGEMENT AND/OR TRADEMARK INFRINGEMENT AGAINST SOMATIK LABS AND ITS SUBSIDIARIES AND... - Page 27 INCLUDING TEMPERATURE THERMOMETERS, BLOOD PRESSURE MONITORS, UV-C SANITISERS AND UV-C SANITISING WANDS/CASES/TRAVEL BAGS, YOU UNDERSTAND AND AGREE THAT THE SOMATIK LABS SERVICES ARE PROVIDED ON AN "AS IS" AND "AS AVAILABLE" BASIS. SOMATIK LABS MAKES NO WARRANTY THAT THE SOMATIK LABS PRODUCT AND SERVICES WILL MEET YOUR REQUIREMENTS OR THAT USE OF THE SOMATIK LABS SERVICES WILL BE UNINTERRUPTED, TIMELY,...
- Page 28 SUBROGATION AND OTHER RIGHTS TO RECOVER AGAINST SOMATIK LABS ARISING AS A RESULT OF THE PAYMENT OF ANY CLAIM FOR LOSS, DAMAGE OR INJURY. SOMATIK LABS’s EQUIPMENT AND SERVICES DO NOT CAUSE AND CANNOT ELIMINATE OCCURRENCES OF CERTAIN EVENTS, INCLUDING, BUT NOT LIMITED TO MEDICAL PROBLEMS OR MEDICAL INCIDENTS.
- Page 29 MODIFICATION, IMPROPER PRODUCT SELECTION OR YOUR NON-COMPLIANCE WITH ANY AND ALL APPLICABLE FEDERAL, STATE OR LOCAL LAWS. THIS WARRANTY AND WARRANTY DISCLAIMER GIVE YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY BY STATE, PROVINCE, OR COUNTRY. OTHER THAN AS PERMITTED BY LAW, SOMATIK LABS DOES NOT EXCLUDE, LIMIT OR SUSPEND OTHER RIGHTS YOU HAVE, INCLUDING THOSE THAT MAY ARISE FROM...
-
Page 30: Notes
15.0 NOTES... - Page 34 V1.0 Engineered for your well-being. All Images, Information and Content are Copyright © 2020 Directed Electronics Australia Pty Ltd. All Rights Reserved. www.somatiklabs.com www.directed.com.au | www.directed.co.nz...
